ORALITE® 5600E
Fleet Marking Grade

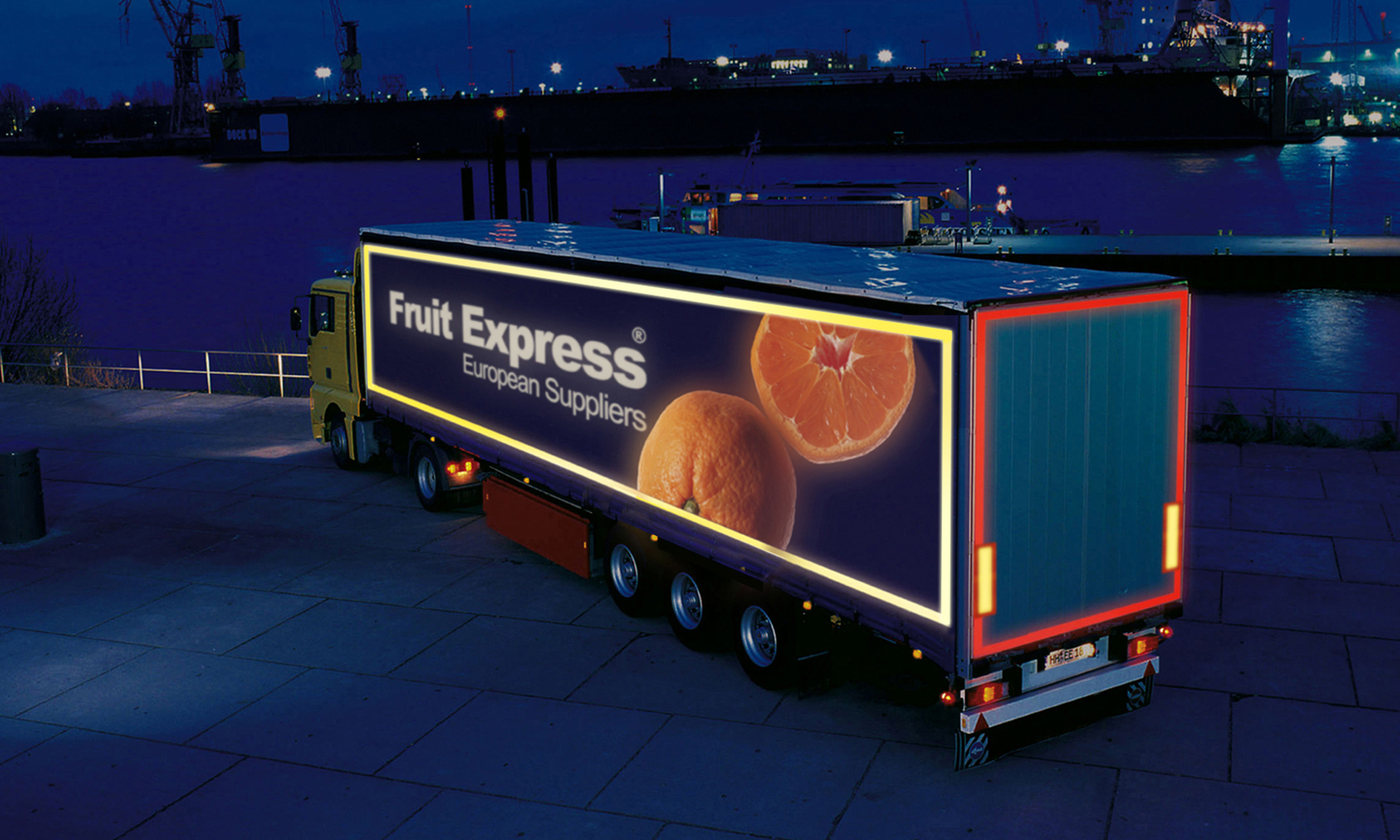

ORALITE® 5600 Fleet Marking Grade is a removable reflective film for longterm outdoor advertising on painted vehicle surfaces. The product consists of a cast PVC film with mirrored, embedded glass beads (design A). The film is approved in accordance with ECE 104 class E and bears the corresponding approval marks. The film is available in 11 colors and is extremely flexible, ensuring excellent workability even with beads and rivets.
- Reflective film with cast PVC surface, design A, reflective values according to ECE 104 class E
- Available in 11 colors, film thickness without protective paper 0.135mm
- Highly flexible film: Adapts perfectly to beads and rivets
- Removable under the influence of heat
- No edge sealing required
- Longterm use: Expected service life of up to 7 years when used properly
Available colours
11 Colours
010
White
020
Yellow
030
Red
035
Orange
050
Blue
060
Green
070
Black
084
Azure
091
Gold
213
Lemon
364
Ruby
Product information
Technical properties
Resistance
| Durability | 7 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
|---|---|---|
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Elongation at break |
Minimum elongation at break along: 100 % Minimum elongation at break across: 100 % |
DIN EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 0 MPa Minimum tensile strength across: 0 MPa |
|
| Temperature resistance |
Minimum temperature: 50 °C Maximum temperature: 95 °C |
adhered on aluminium, central European normal climate |
Adhesive properties
| Removability | Removable | removable via heat |
|---|---|---|
| Adhesive power | 17 N/25 mm | after 24 h, adhered on stainless steel | Average value, FINAT TM 1 |
| 16 N/25 mm | after 24 h, adhered on acrylic varnish | Average value, FINAT TM 1 | |
| Adhesive | Permanent | removable via heat |
Processing
| Application temperature | Minimum temperature 15 °C |
|---|
Product Construction
| Liner |
Liner: Silicone cardboard PE coated on both sides Surface weight: 145 g/m² |
|---|---|
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.135 mm | Average value, without protective paper |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design A |
Dimensions
| Format | Roll | |
|---|---|---|
| Standard width | 610 mm | |
| 1235 mm | ||
| 760 mm | only available in white | |
| 1370 mm | only available in white | |
| 1520 mm | only available in white | |
| Standard length | 25 m | |
| 50 m |
