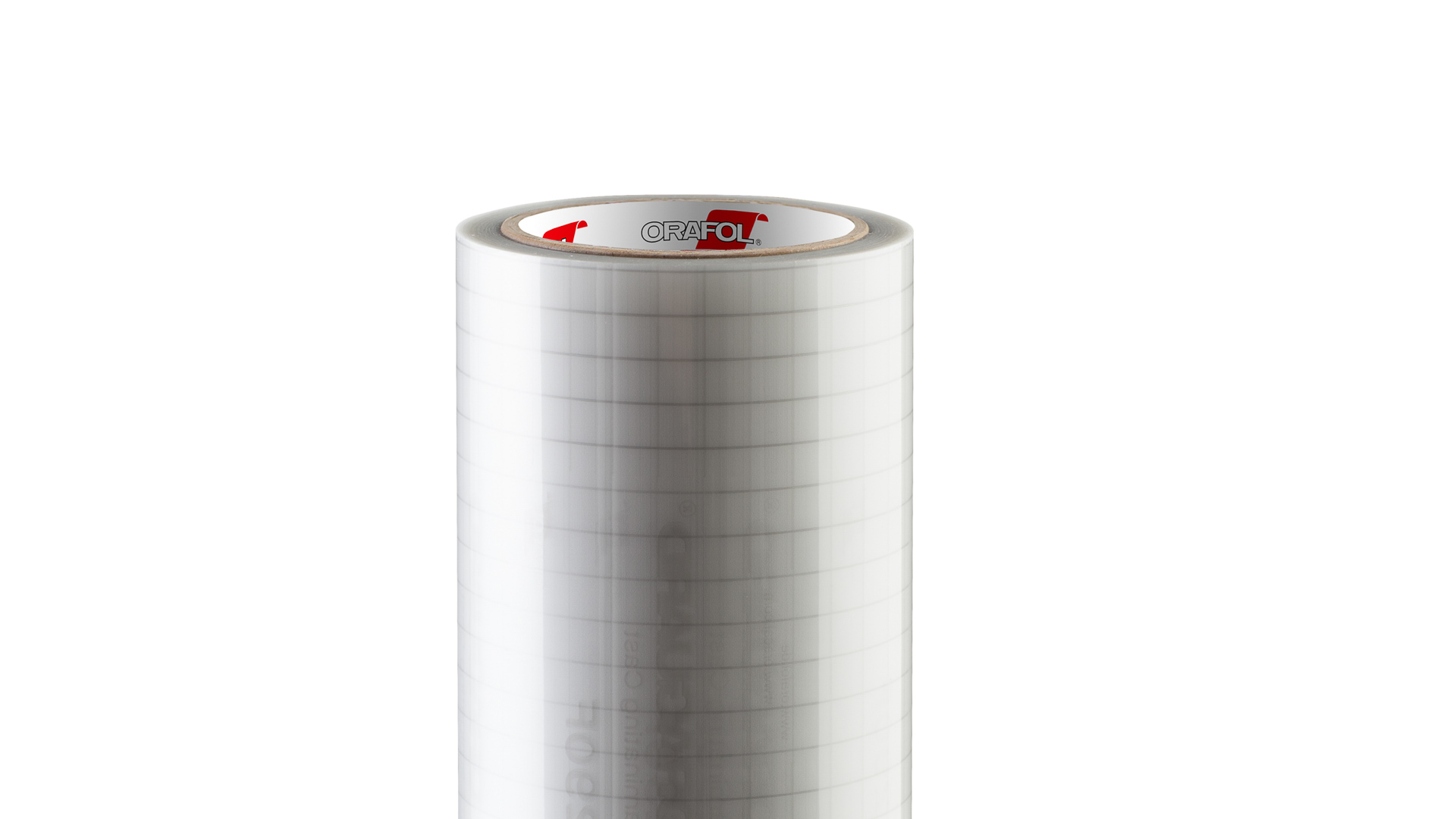

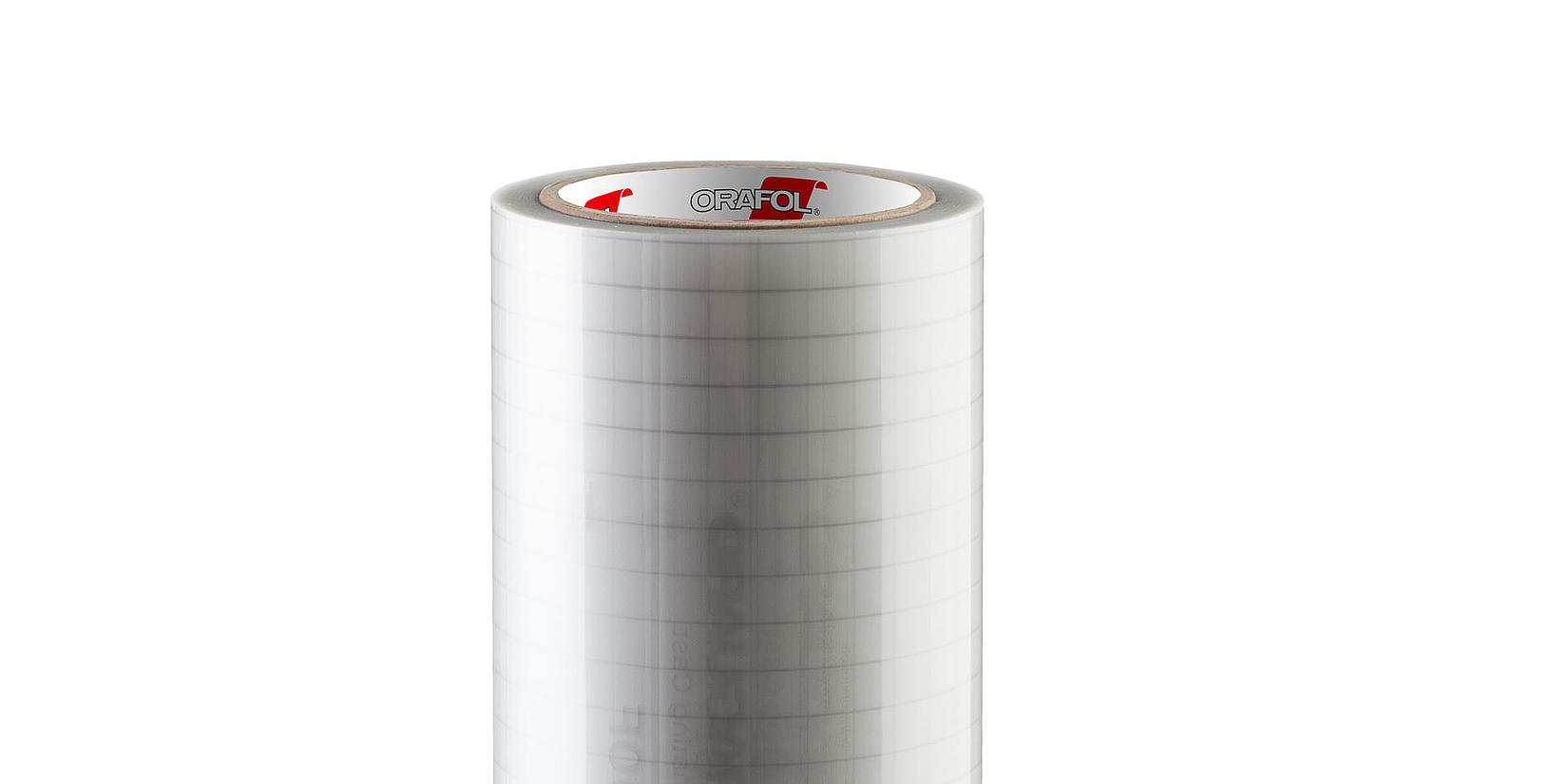

ORAGUARD^® 290F
Laminating Film

Transparent, premium cast PVC protection film with glossy surface and highest UV protection.

Product information

Technical properties

Durability	Durability (general note):product.properties.technical_attributes.durability.lifetime_value_group.lifetime_value_condition_all.id.545
	8 Year(s)
Shelf Life	2 Year(s)	in original packaging, at 20 °C and 50 % relative humidity
Resistance to solvents and chemicals	Water, Cleaning agent, Alcohol, Aliphatic solvents	at room temperature, 72 h after adhesion on aluminium
Maximum shrinkage	Maximum shrinkage along 0.1 mm Maximum shrinkage across 0.1 mm	product.properties.technical_attributes.durability.maximum_shrinkage_block.maximum_shrinkage_lengthwise_conditon.id.545.f26a9c84 \| FINAT TM 14 FINAT TM 14, bonded to steel, no measurable shrinkage in transverse direction
Elongation at break	Minimum elongation at break along 120 % Minimum elongation at break across 120 %	DIN EN ISO 527
Tensile strength	Minimum tensile strength along: 19 N/mm² Minimum tensile strength across: 19 N/mm²	EN ISO 527
Seawater resistance	no change	product.properties.technical_attributes.durability.seawater_resistance_group.seawater_resistance_condition.id.545 \| DIN 50021, adhered on aluminium, after 100 h/23 °C no change
Temperature resistance	Minimum temperature: -40 °C Maximum temperature: 60 °C	adhered on aluminium, central European normal climate

Adhesive power	12 N/25 mm	after 24 h, on stainless steel \| FINAT TM 1, average value
Adhesive	Permanent

Processing

Application temperature	Minimum temperature 10 °C

Product Construction

Liner	Polyester film, siliconised on one side

Dimensions

PDF, 135.17kB, 1 Page

PDF, 140.71kB, 1 Page

Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
