Technical data sheet - English (EN)
PDF, 1.33MB, 1 Page

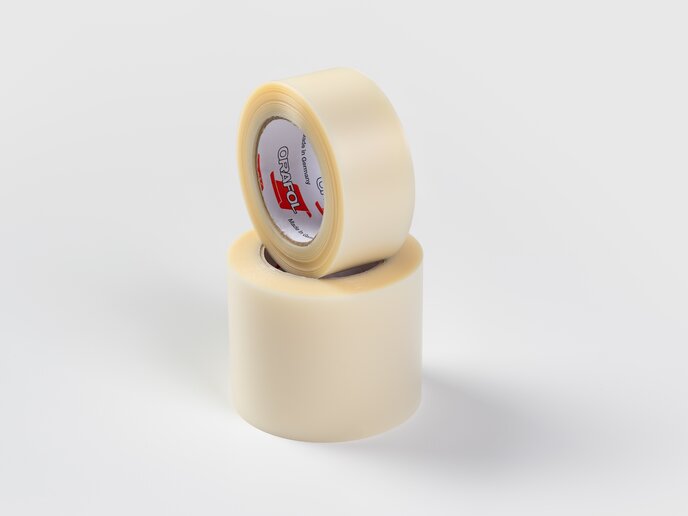

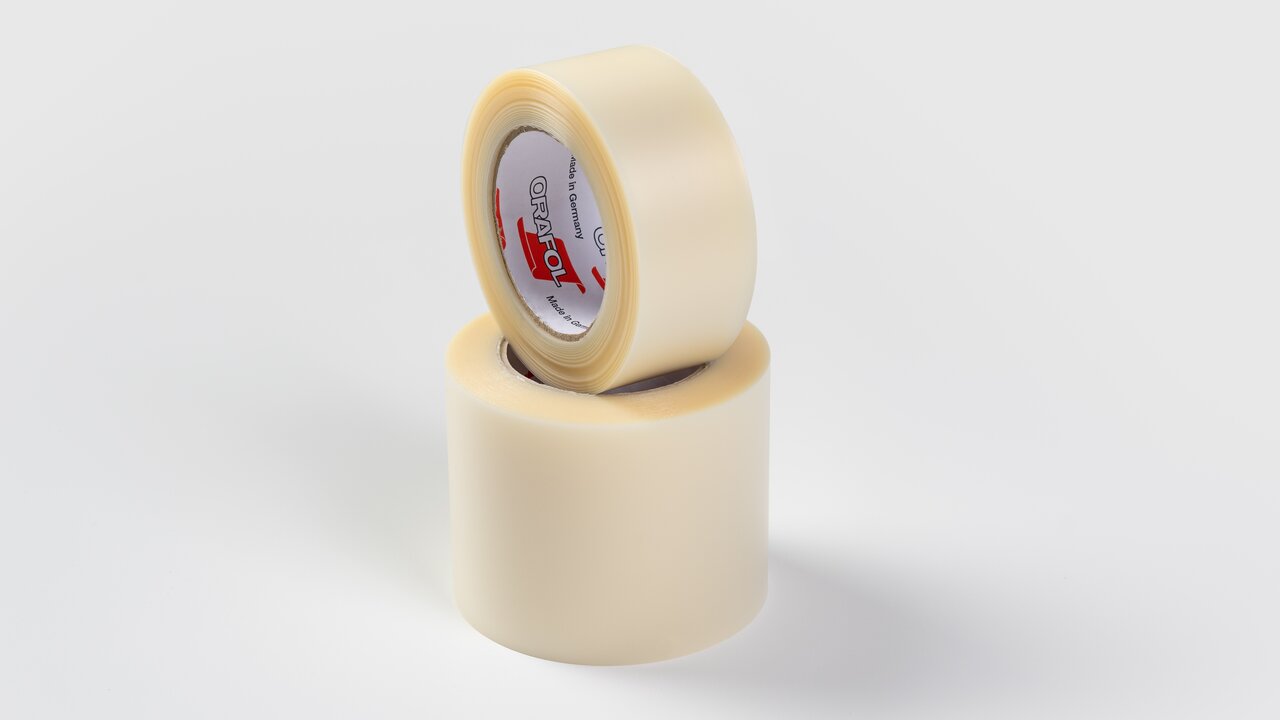

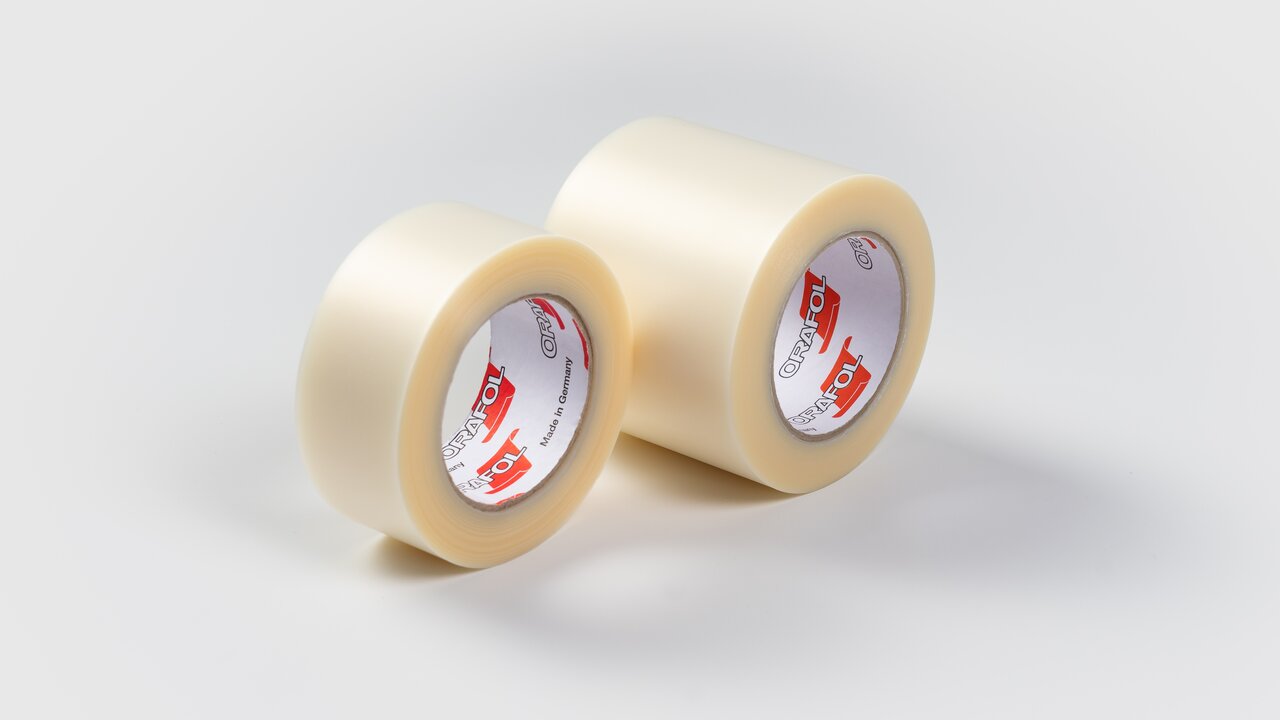

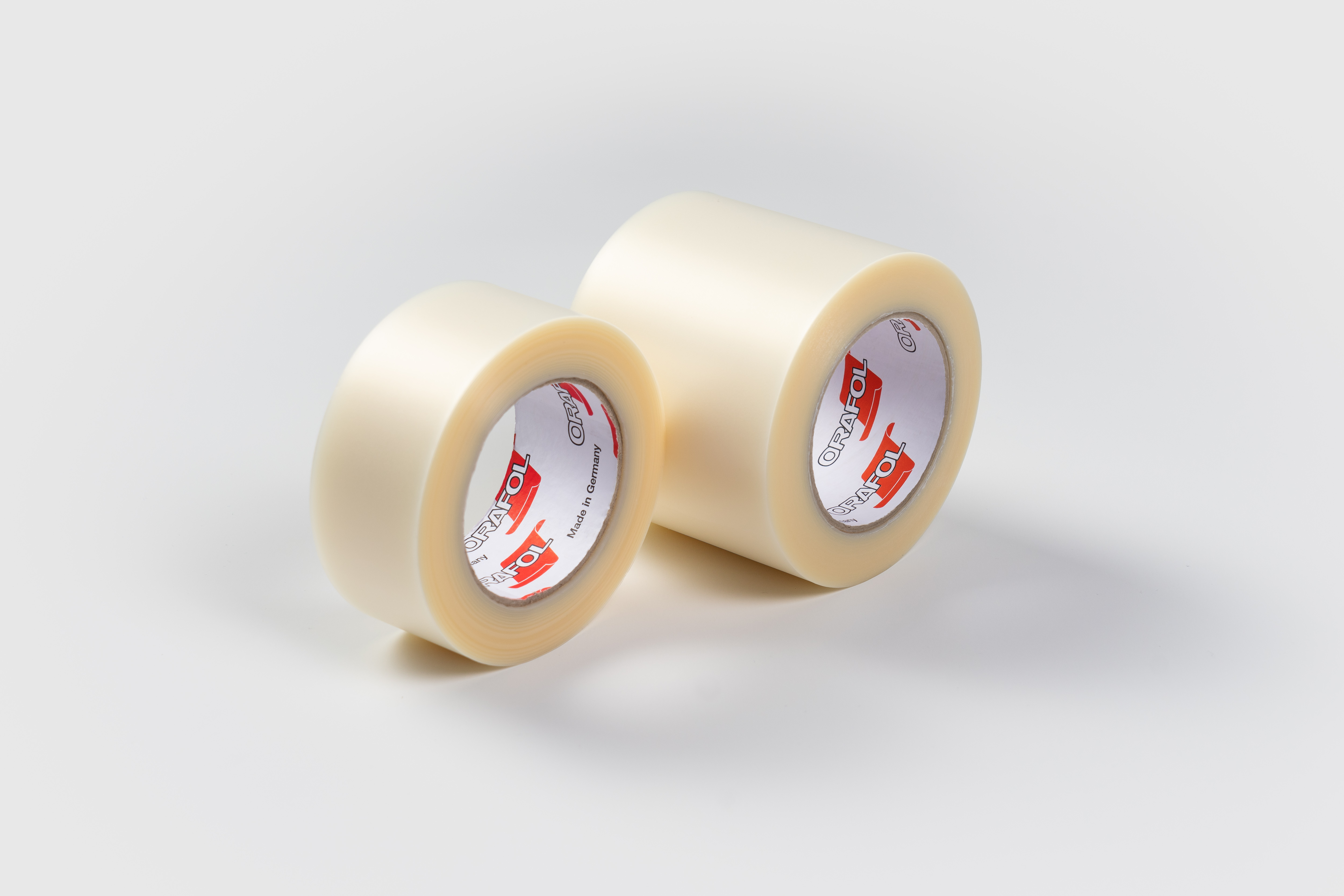

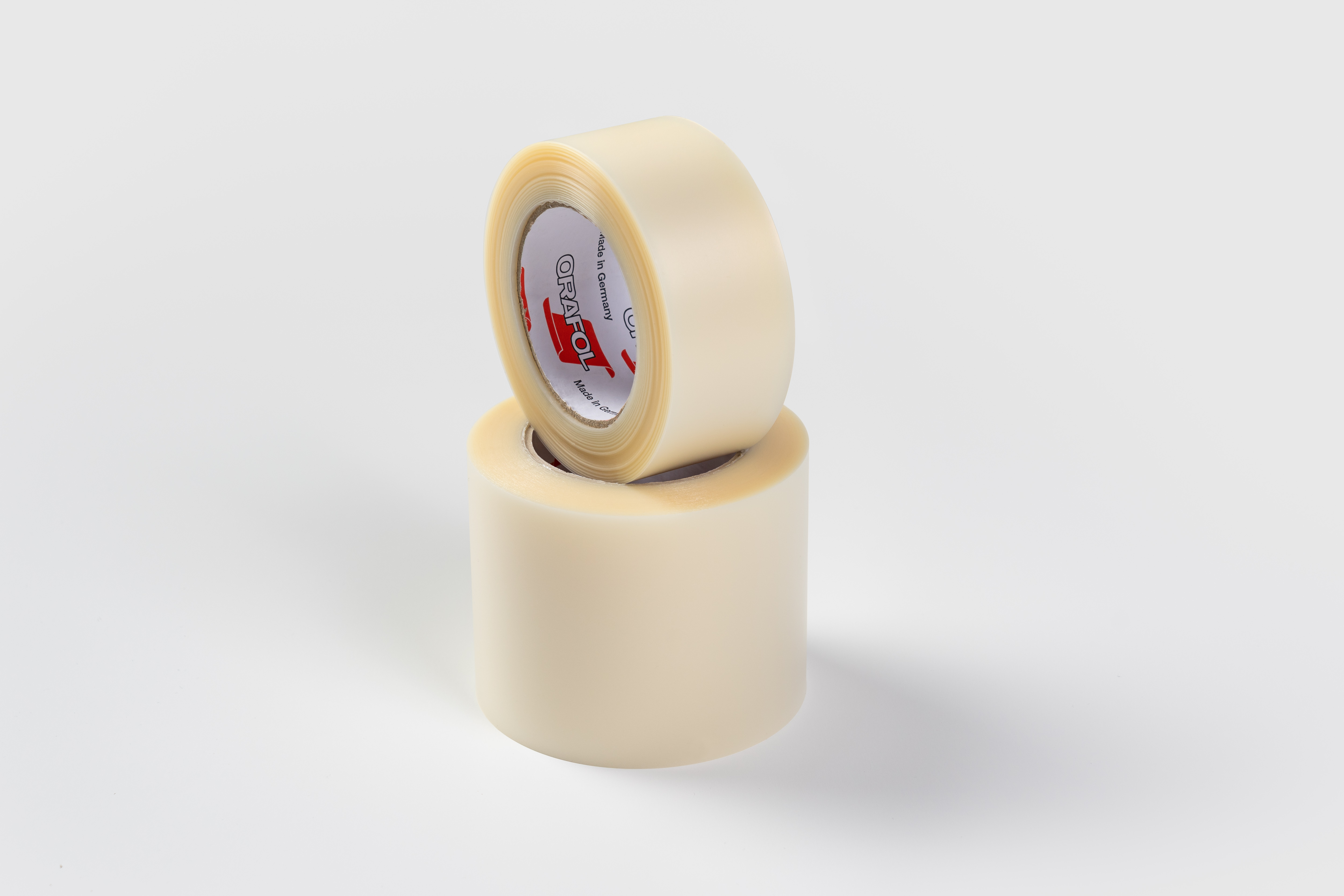

ORATAPE® MT95
Application Tape
Transparent mounting film on polyethylene basis with a finely grained surface for transferring punched or computer-cut lettering and symbols.
Product information
Technical properties
Resistance
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Elongation at break |
Minimum elongation at break along: 450 % Minimum elongation at break across: 450 % |
DIN EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 20 MPa Minimum tensile strength across: 20 MPa |
EN ISO 527 |
Adhesive properties
| Adhesive power | 2 N/25 mm | after 20 min, stainless steel | FINAT TM 1, average value |
|---|
Processing
| Application temperature | Minimum temperature 10 °C |
|---|
Product Construction
| Adhesive | Modified polyacrylate |
|---|
General
| Thickness | 0.147 mm | Film with adhesive, average value |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1520 mm |
| 1370 mm | |
| 1220 mm | |
| 1000 mm | |
| 610 mm | |
| 500 mm | |
| Standard length | 50 m |
| 100 m |
Downloads
Technical documents
Product information - English (EN)
PDF, 139.50kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
