Technical data sheet - English (EN)
PDF, 170.35kB, 2 Pages
ORALITE® 5400
Commercial Grade

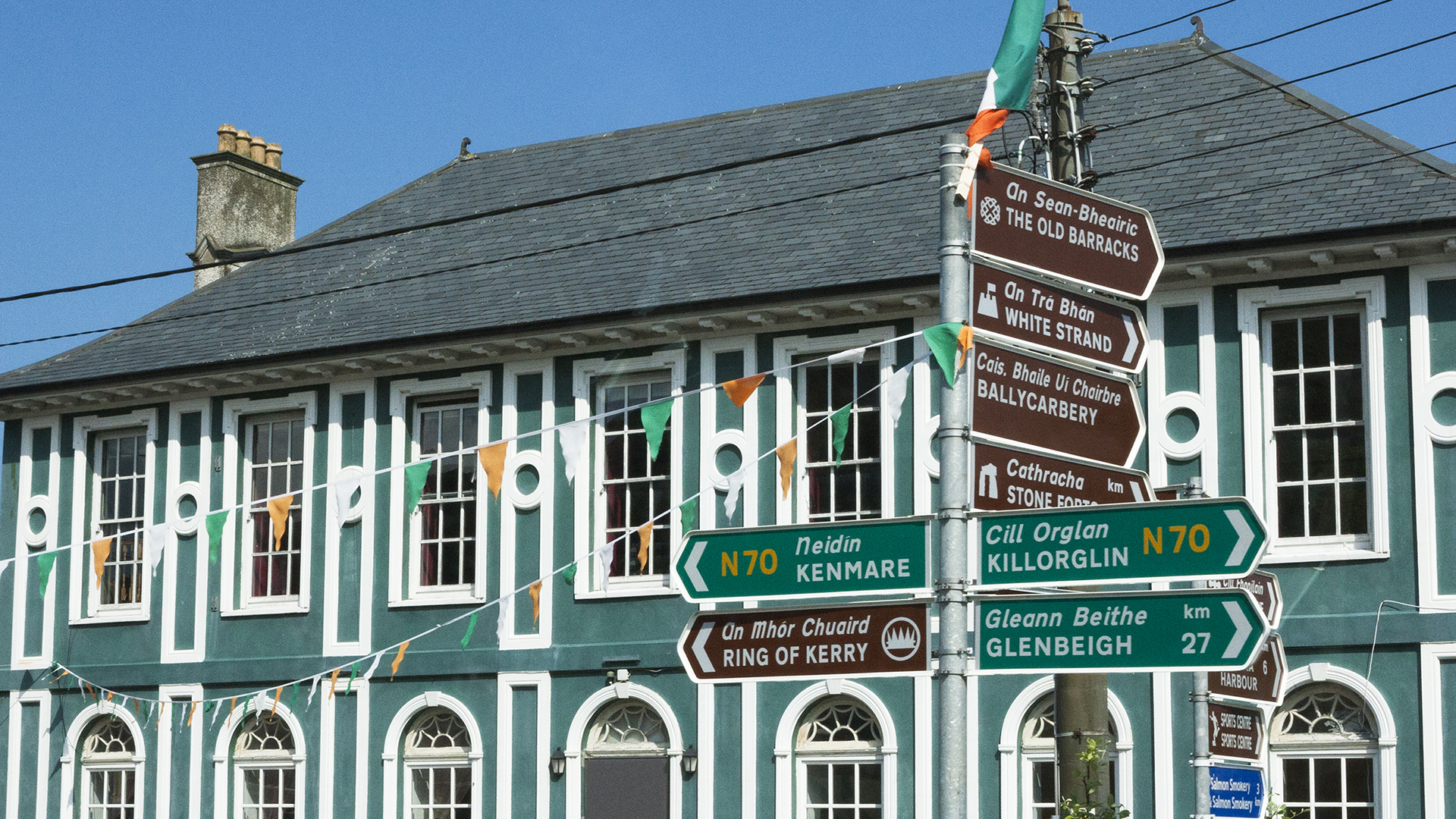

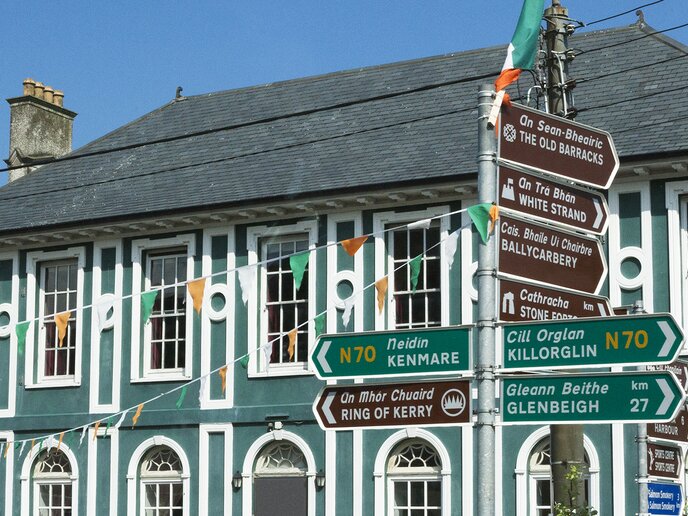

ORALITE® 5400 Commercial Grade is a robust reflective film (class RA1, design A, thickness: 0.135 mm) specially developed for reflective signs, information boards and advertising. Thanks to the flexibility of ORALITE® 5400, it is also suitable for uneven surfaces and offers a durability of up to 4 years. With its permanent solvent polyacrylate adhesive, it ensures reliable application.
- Wide range of applications: Ideal for reflective signs, information boards and advertising, even on uneven surfaces
- Robust and smooth surface: Offers high scratch and impact resistance as well as very good printability
- Resistance: High corrosion and solvent resistance for reliable performance
- Durability: Up to 4 years of use for versatile applications
- Colour options: Available in 6 colours for versatile design options
Available colours
6 Colours
010
White
020
Yellow
035
Orange
030
Red
060
Green
050
Blue
Product information
Technical properties
Resistance
| Durability | 4 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
|---|---|---|
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -50 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Solvent-based inkjet printing, Screen printing |
|---|---|
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner |
Liner: Silicone cardboard PE coated on both sides Surface weight: 145 g/m² |
|---|---|
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.135 mm | Average value, without protective paper |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design A |
| Reflectivity classes: RA1 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 610 mm |
| 1235 mm | |
| Standard length | 50 m |
