Technical data sheet - English (EN)
PDF, 139.22kB, 1 Page
ORAJET® 3628
Wall Art Digital
Very supple soft PVC film white.
- Soft PVC film (80 micron)
- White glossy and matt

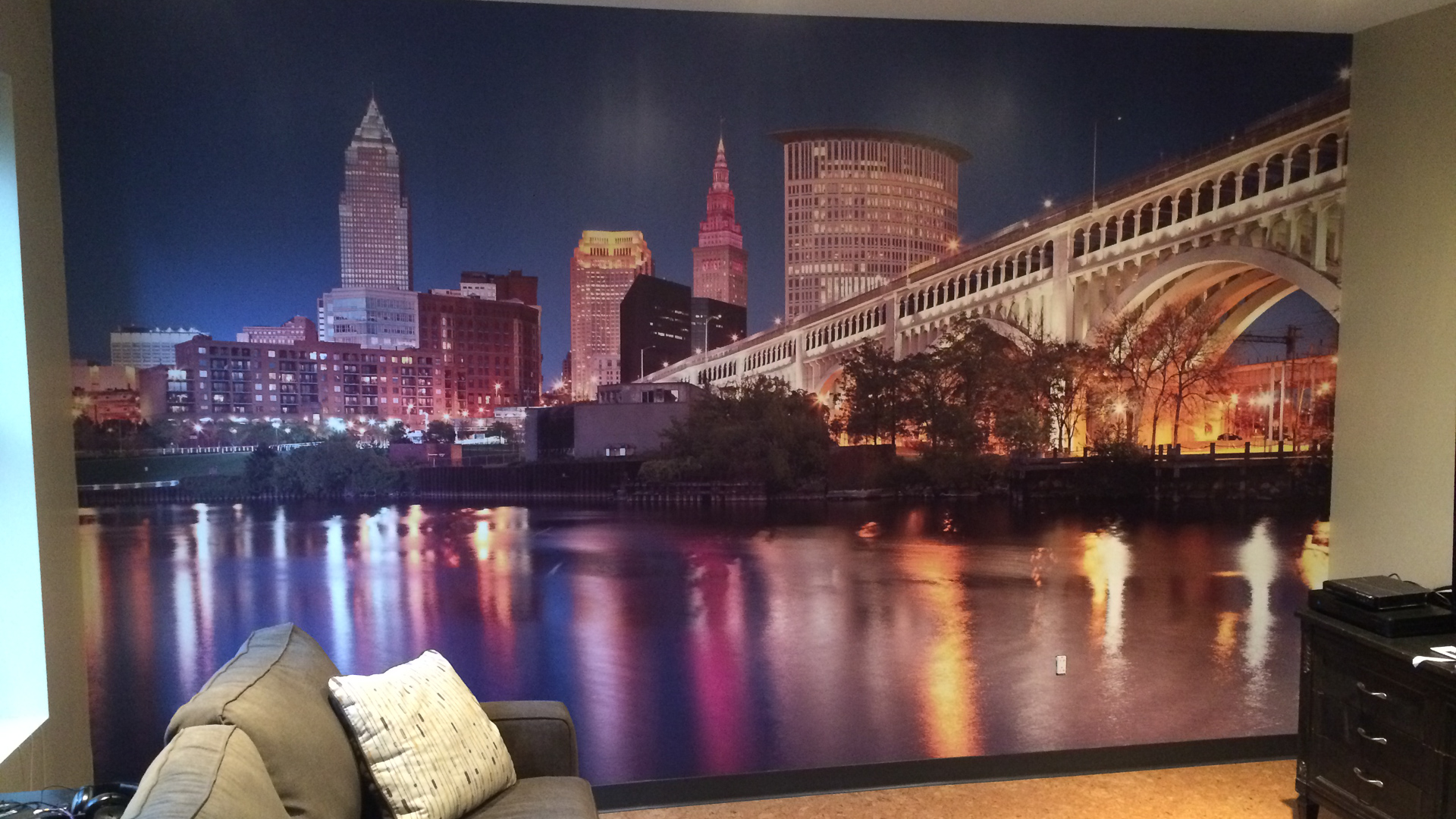

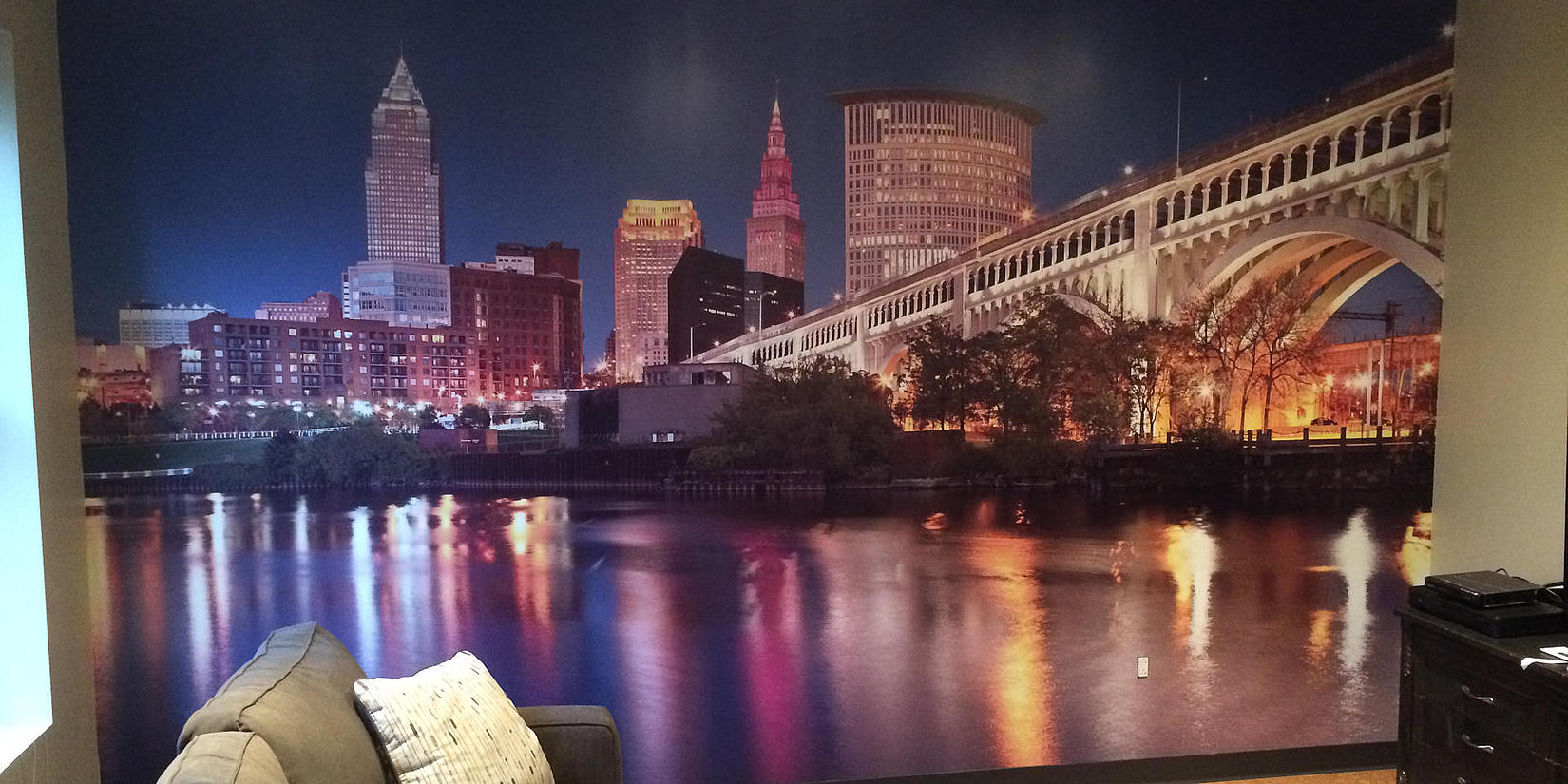

- For indoor applications onto wall paper, e.g. decorations and advertisements
- Polyacrylate, easily removable
Product information
Technical properties
Resistance
| Durability | Durability (general note):product.properties.technical_attributes.durability.lifetime_value_group.lifetime_value_condition_all.id.589 | |
|---|---|---|
| 2 Year(s) | with vertical outdoor weathering, central European normal climate; unprinted | |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Maximum shrinkage |
Maximum shrinkage along 0.4 mm
Maximum shrinkage across 0 mm |
Bonded to steel | FINAT TM 14 Bonded to steel | No measurable shrinkage in transverse direction |
| Elongation at break |
Minimum elongation at break along 130 %
Minimum elongation at break across 150 % |
DIN EN ISO 527 DIN EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 19 N/mm² Minimum tensile strength across: 19 N/mm² |
EN ISO 527 |
Adhesive properties
| Adhesive power | 6 N/25 mm | after 24 h, on stainless steel | FINAT TM 1, average value |
|---|---|---|
| Adhesive | Removable |
Processing
| Recommended printing procedure | Inkjet printing with solvent-based inks, Inkjet printing with UV inks, Inkjet printing with latex inks |
|---|---|
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner |
Liner: Silicone cardboard coated on one side Surface weight: 137 g/m² |
|---|---|
| Front material |
Thickness front material: 0.08 mm Front material: Soft PVC Film |
| Adhesive |
Thickness adhesive: 0.018 mm Adhesive: Polyacrylate |
General
| Thickness | 0.08 mm | without protective liner and adhesive, average value |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1370 mm |
| Standard length | 50 m |
