Technical data sheet - English (EN)
PDF, 37.67kB, 1 Page
ORACAL® 8510RA
Etched Glass Cal

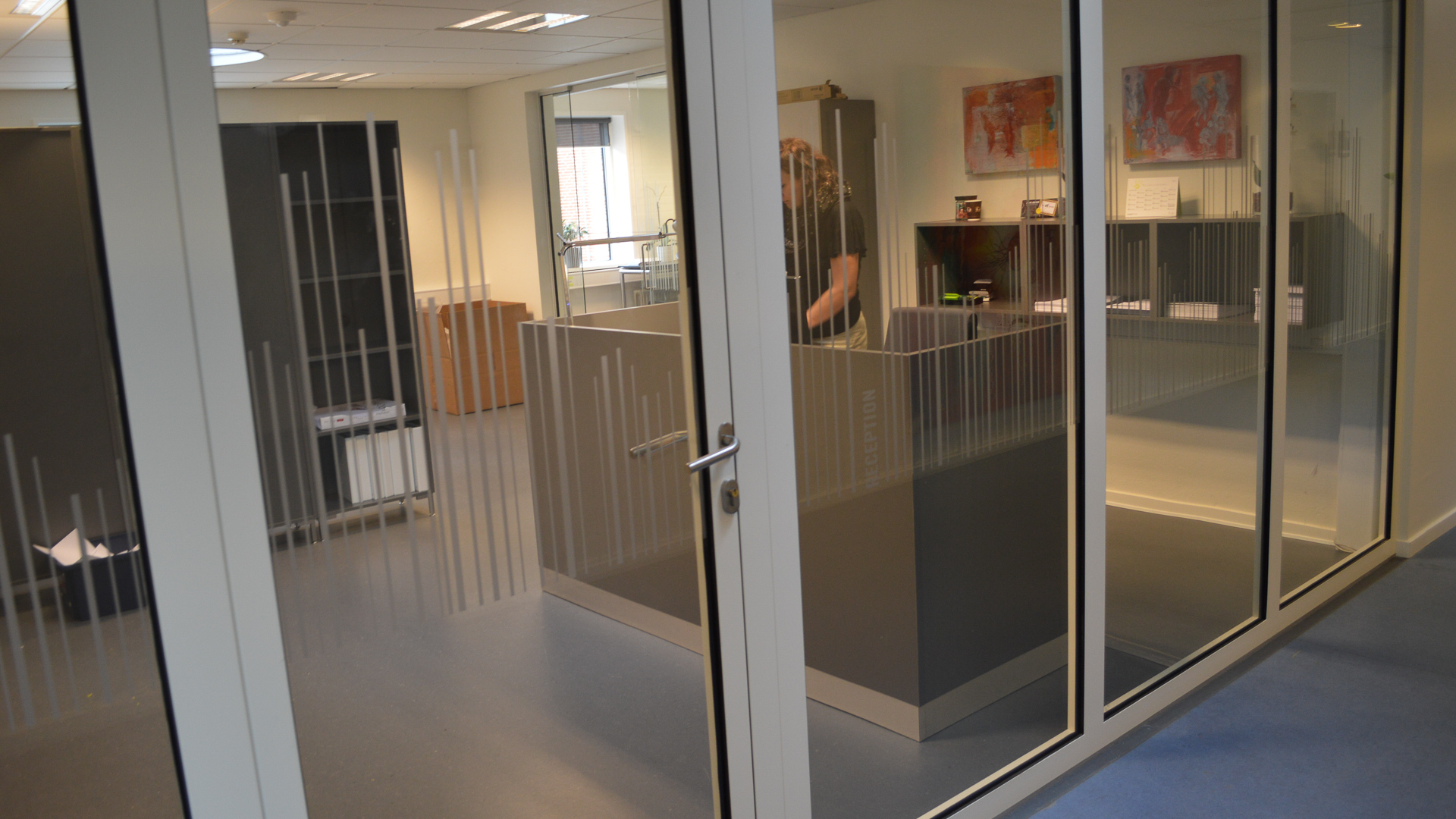

Special PVC film with polymer plasticisers for glass decoration. The reduced surface gloss of the film prevents unwanted reflections. Available in the colours silver and gold as well as in different surface structures
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on glass, 8 h in detergent solution (0.5 % household detergent) at room temperature and 65 °C |
|---|---|---|
| Durability | 7 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | at room temperature, 72 h after adhesion on aluminium |
| Maximum shrinkage |
Maximum shrinkage along: 0.2 mm Maximum shrinkage across : 0 mm |
adhered on glass | FINAT TM 14 |
| Elongation at break |
Minimum elongation at break along: 130 % Minimum elongation at break across: 150 % |
DIN EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 19 MPa Minimum tensile strength across: 19 MPa |
EN ISO 527 |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 90 °C |
bonded to glass, normal Central European climate |
Adhesive properties
| Adhesive power | 18 N/25 mm | Acrylic, after 24 h | Average value, FINAT TM 1 |
|---|---|---|
| 16 N/25 mm | Glass, after 24 h | Average value, FINAT TM 1 | |
| Adhesive | Permanent |
Processing
| RapidAir technology | Yes | |
|---|---|---|
| Application temperature | Minimum temperature 8 °C |
Product Construction
| Liner |
Liner: RaidAir paper PE-coated on both sides, siliconised on one side Surface weight: 145 g/m² |
|---|---|
| Front material |
Thickness front material: 0.08 mm Front material: Polymer PVC film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.08 mm | Average value, without protective liner and adhesive |
|---|
Dimensions
| Format | Roll | |
|---|---|---|
| Standard width | 1520 mm | only available in silver grey |
| 1260 mm | ||
| Standard length | 50 m |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 107.18kB, 3 Pages
Product information - English (EN)
PDF, 140.79kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
