Technical data sheet - English (EN)
PDF, 1.33MB, 1 Page

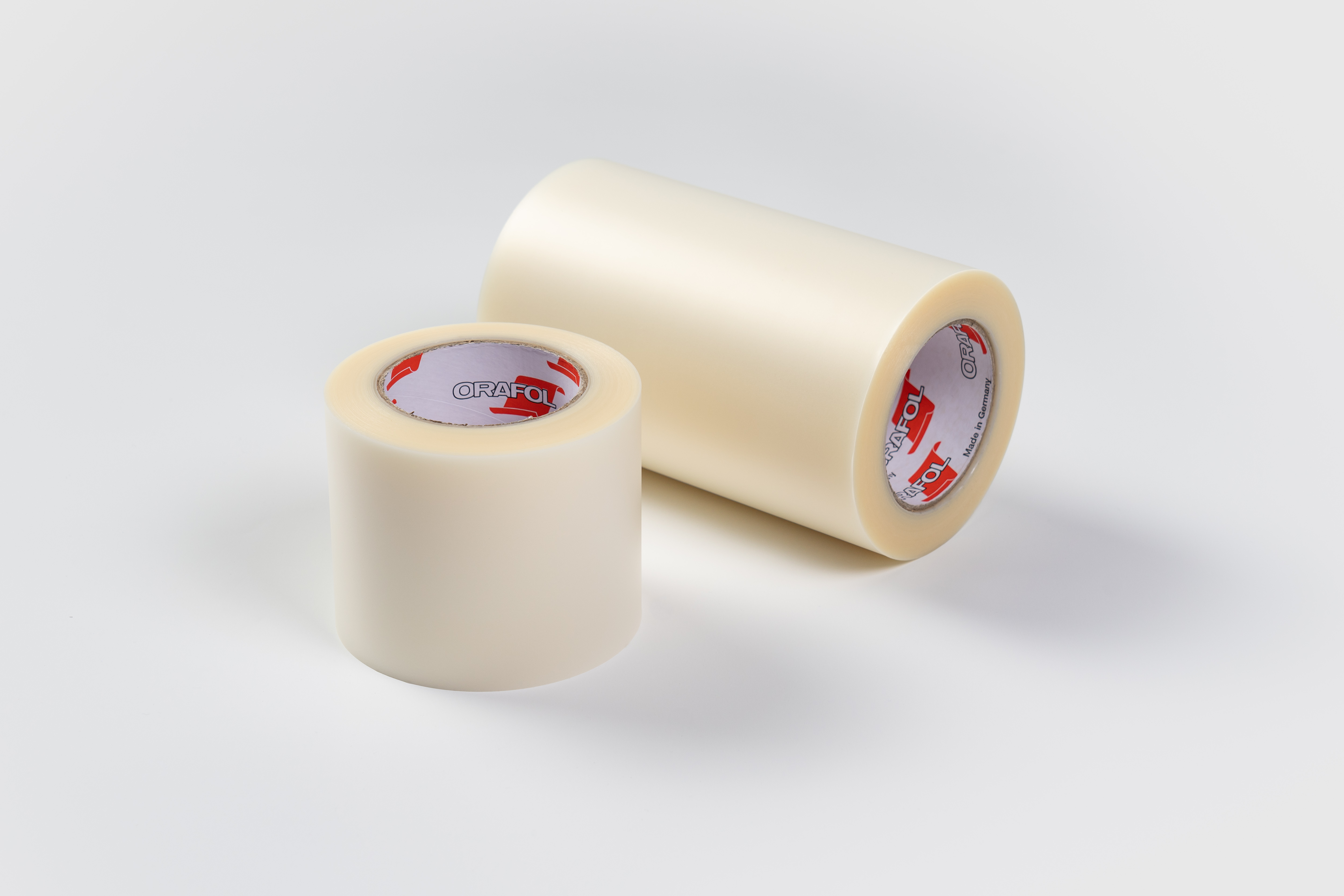

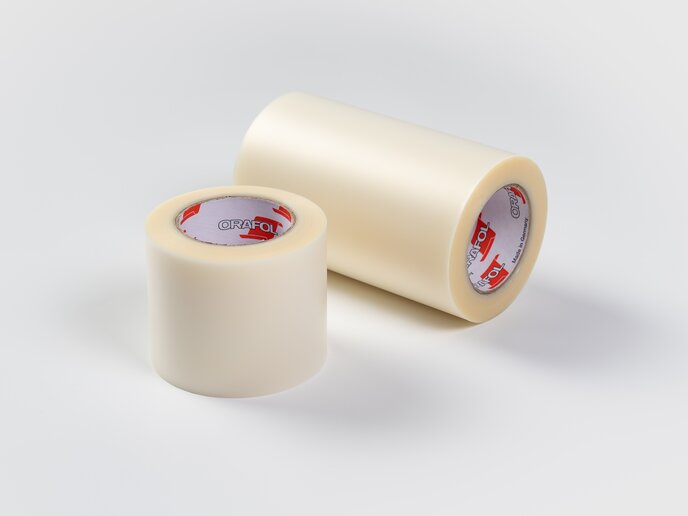

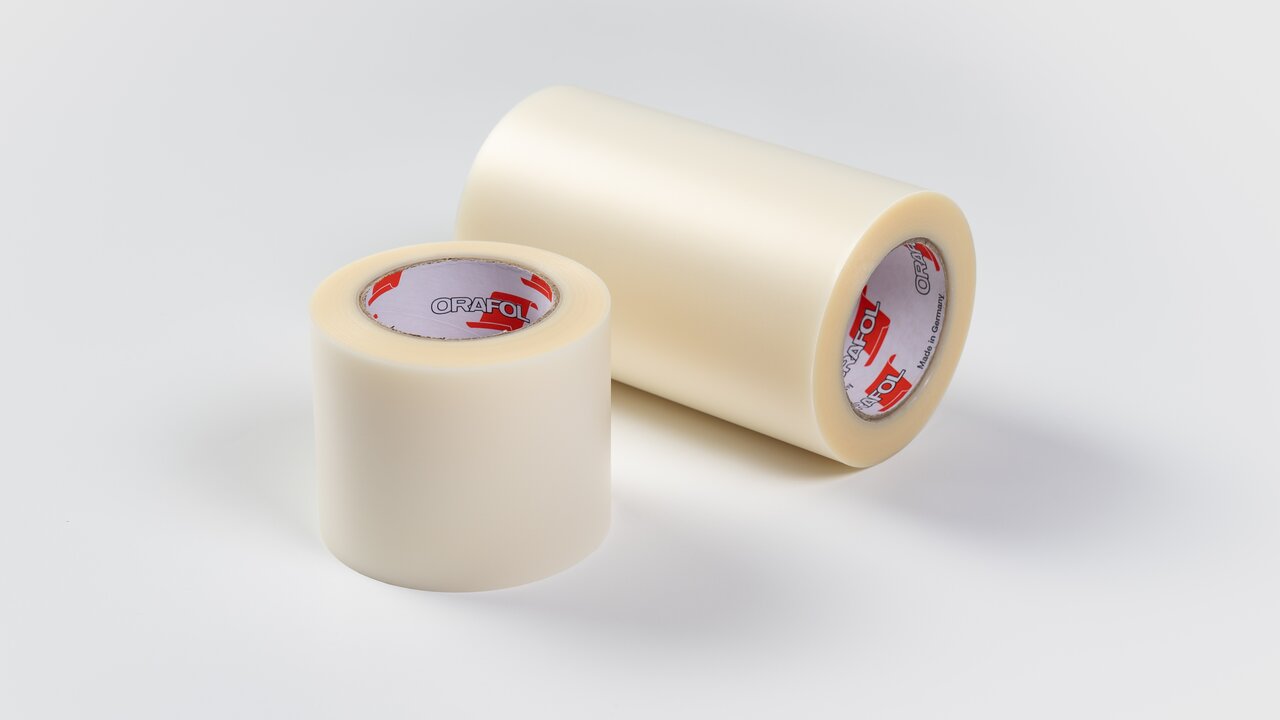

ORATAPE® LT95
Application Tape
Transparent mounting film on polyethylene basis with a finely grained surface for transferring punched or computer-cut lettering and symbols.
Product information
Technical properties
Resistance
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Elongation at break |
Minimum elongation at break along 450 %
Minimum elongation at break across 450 % |
DIN EN ISO 527 DIN EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 20 N/mm² Minimum tensile strength across: 20 N/mm² |
EN ISO 527 |
Adhesive properties
Processing
| Application temperature | Minimum temperature 10 °C |
|---|
Product Construction
| Front material | 0.095 mm |
|---|---|
| Adhesive |
Thickness adhesive: 0.017 mm Adhesive: Modified polyacrylate |
General
| Thickness | 0.145 mm | Film with adhesive, average value |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1370 mm |
| 1220 mm | |
| 1000 mm | |
| 610 mm | |
| 500 mm | |
| Standard length | 50 m |
| 100 m |
Downloads
Technical documents
Product information - English (EN)
PDF, 139.50kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
