ORACAL® 8300
Transparent Cal

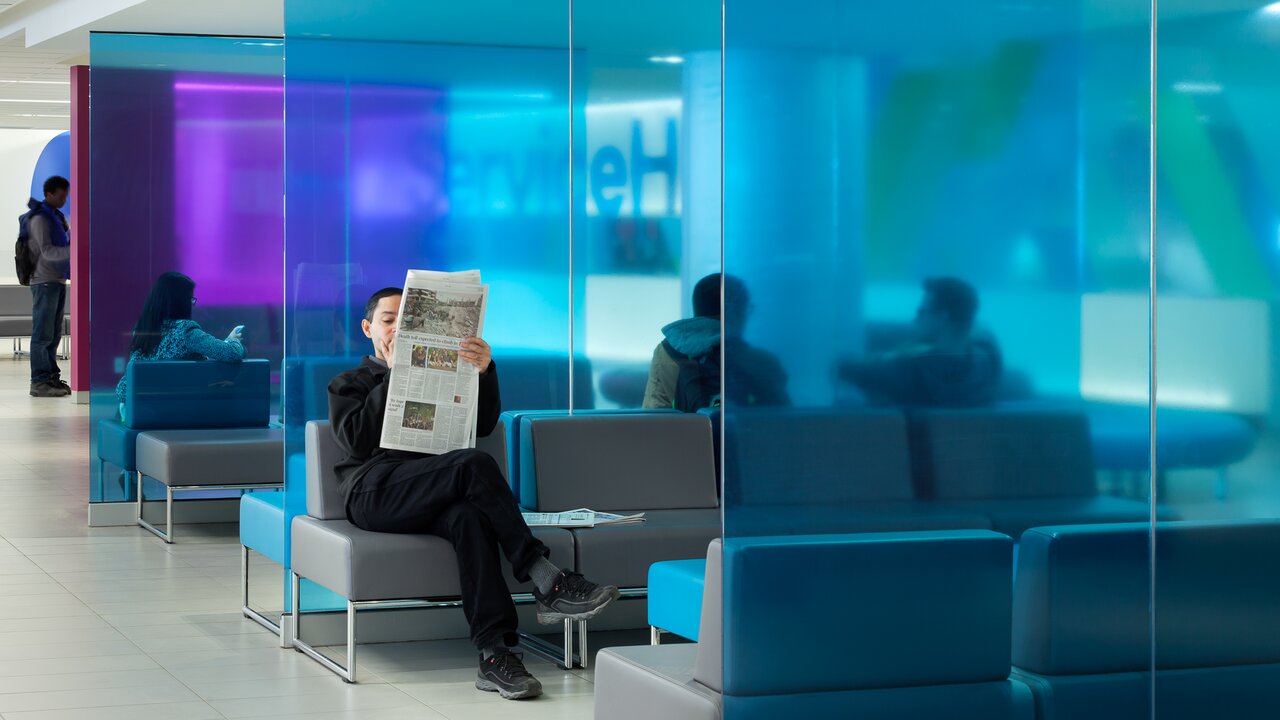

UV-stabilised, transparent, coloured PVC film with a glossy surface.
Available colours
32 Colours
025G
Brimstone yellow
Glossy
250 245 55 (sRGB)
021G
Yellow
Glossy
252 200 0 (sRGB)
216G
Traffic yellow
Glossy
252 199 0 (sRGB)
020G
Golden yellow
Glossy
253 170 3 (sRGB)
034G
Orange
Glossy
250 107 3 (sRGB)
047G
Orange red
Glossy
249 70 12 (sRGB)
033G
Red orange
Glossy
248 50 5 (sRGB)
032G
Light red
Glossy
226 18 2 (sRGB)
031G
Red
Glossy
180 12 19 (sRGB)
030G
Dark red
Glossy
159 4 10 (sRGB)
040G
Violet
Glossy
147 0 166 (sRGB)
077G
Telemagenta
Glossy
207 64 201 (sRGB)
041G
Pink
Glossy
227 30 172 (sRGB)
089G
Salmon pink
Glossy
252 176 161 (sRGB)
085G
Pale pink
Glossy
253 219 222 (sRGB)
056G
Ice blue
Glossy
139 230 248 (sRGB)
096G
Steel blue
Glossy
85 191 232 (sRGB)
053G
Light blue
Glossy
28 189 237 (sRGB)
052G
Azure blue
Glossy
35 172 230 (sRGB)
051G
Gentian blue
Glossy
4 126 225 (sRGB)
057G
Traffic blue
Glossy
8 128 221 (sRGB)
049G
King blue
Glossy
9 96 215 (sRGB)
054G
Turquoise
Glossy
53 236 197 (sRGB)
063G
Lime-tree green
Glossy
175 229 82 (sRGB)
068G
Grass green
Glossy
62 194 0 (sRGB)
061G
Green
Glossy
40 208 107 (sRGB)
619G
Traffic green
Glossy
36 201 138 (sRGB)
097G
Blue green
Glossy
34 198 145 (sRGB)
060G
Dark green
Glossy
44 126 62 (sRGB)
074G
Middle grey
Glossy
204 212 195 (sRGB)
073G
Dark grey
Glossy
146 146 123 (sRGB)
079G
Reddish brown
Glossy
172 72 0 (sRGB)
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on acrylic glass, 8 h in detergent solution (0.5 % household detergent) at room temperature and 65 °C |
|---|---|---|
| Durability | 5 Year(s) | with professional processing, with vertical outdoor weathering |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | at room temperature, 72 h after adhesion on aluminium |
| Maximum shrinkage |
Maximum shrinkage along: 0.4 mm Maximum shrinkage across : 0 mm |
product.properties.technical_attributes.durability.maximum_shrinkage_block.maximum_shrinkage_transverse_conditon.id.471.8fa5e6bc | product.properties.technical_attributes.durability.maximum_shrinkage_block.maximum_shrinkage_transverse_note.id.471.8fa5e6bc |
| Elongation at break |
Minimum elongation at break along: 130 % Minimum elongation at break across: 150 % |
product.properties.technical_attributes.durability.elongation_at_break_block.elongation_at_break_transverse_note.id.471.4569310c |
| Tensile strength |
Minimum tensile strength along: 19 MPa Minimum tensile strength across: 19 MPa |
EN ISO 527 |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 80 °C |
product.properties.technical_attributes.durability.temperature_resistance_block.temperature_resistance_condition.id.471.1f37316f |
Adhesive properties
| Adhesive power | 18 N/25 mm | adhered on glass, after 24 h | Average value, FINAT TM 1 |
|---|---|---|
| 16 N/25 mm | adhered on acrylic varnish, after 24 h | Average value, FINAT TM 1 | |
| Adhesive | Permanent |
Processing
| Application temperature | Minimum temperature 8 °C | |
|---|---|---|
| Proposed application technology | Wet application, Dry application | The films can be applied dry or moist, whereby a white colouring of the adhesive does not occur. |
Product Construction
| Front material |
Thickness front material: 0.08 mm Front material: UV-stabilised PVC film |
|---|---|
| Adhesive |
Colour adhesive: Transparent Adhesive: Solvent-polyacrylate |
General
| Thickness | 0.08 mm | Average value, without protective liner and adhesive |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1260 mm |
| 1000 mm | |
| Standard length | 50 m |
