ORACAL® 1663

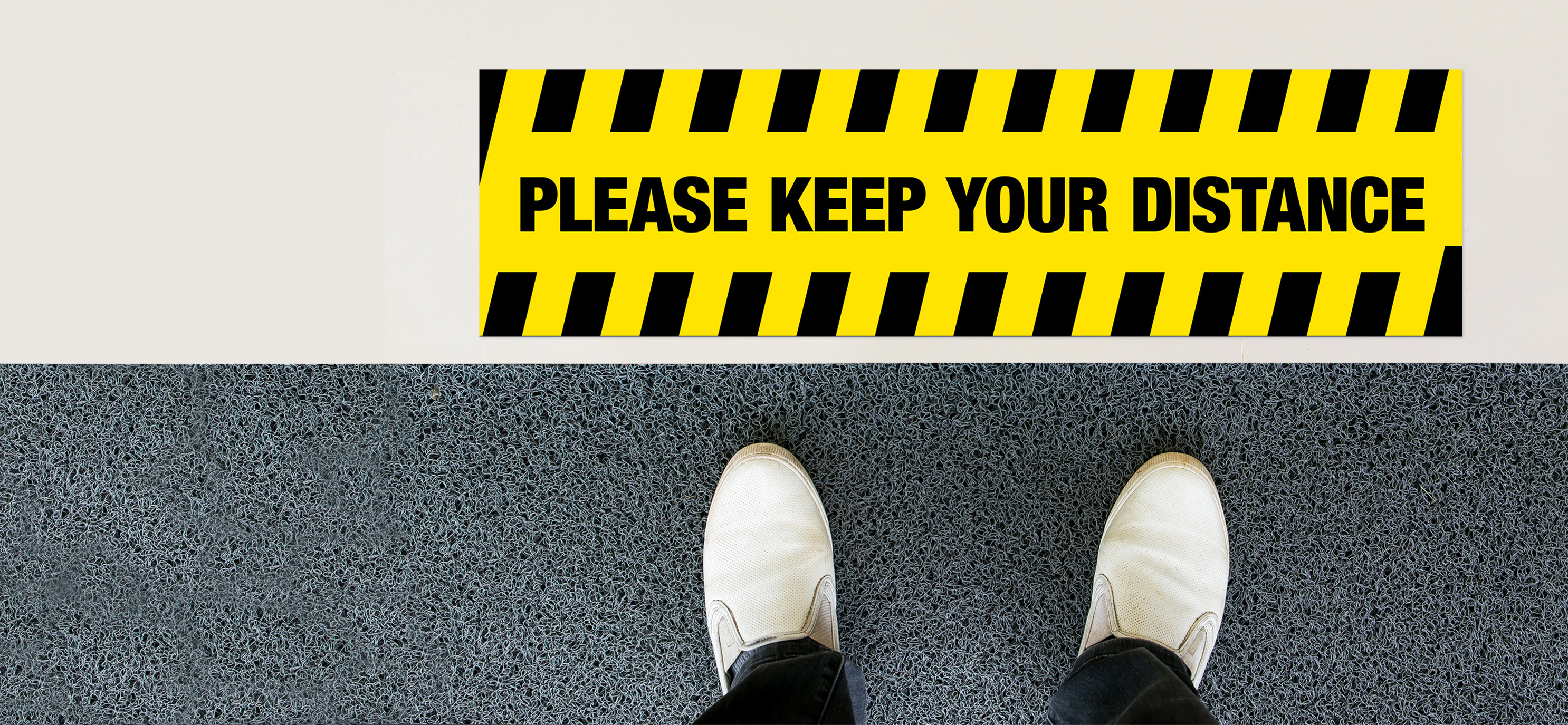

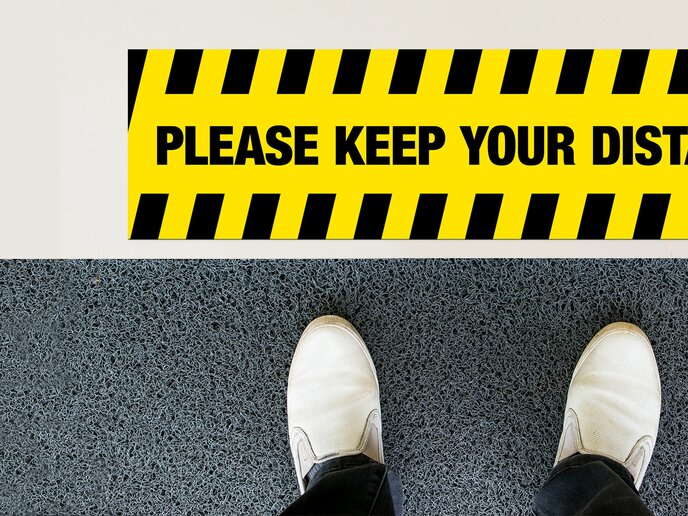

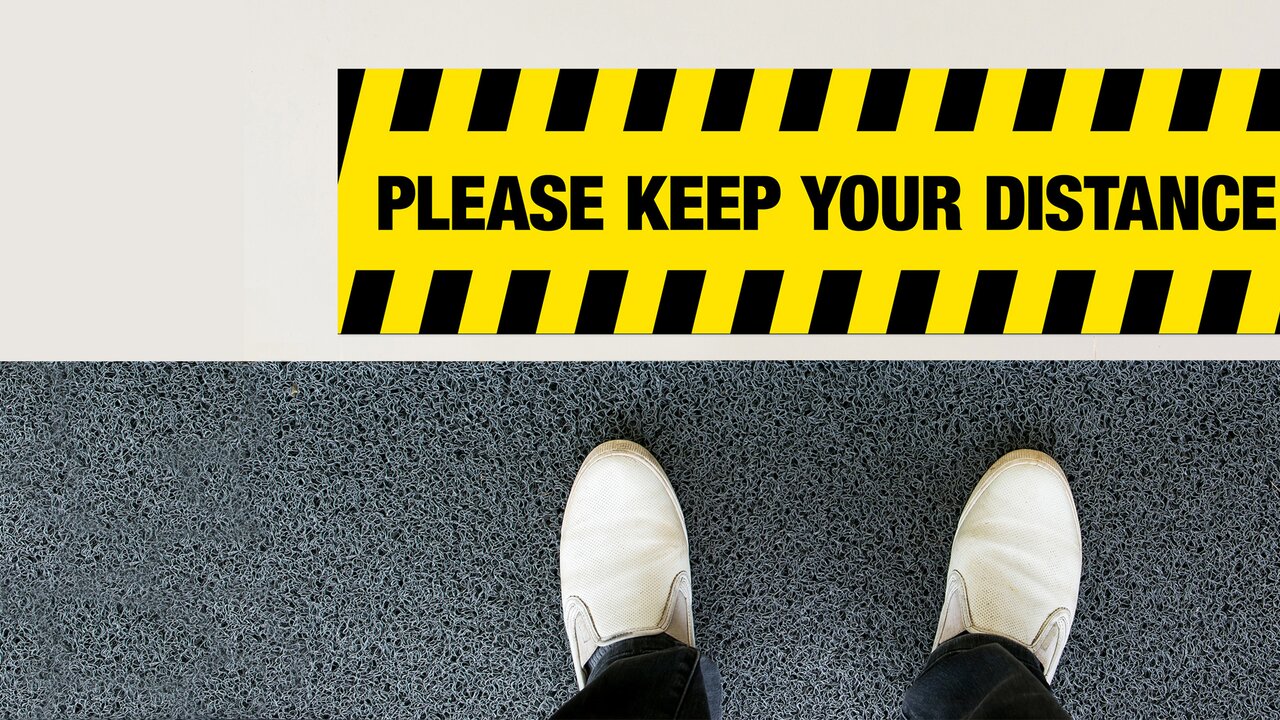

Floor Graphics Vinyl
Highly pigmented white special PVC film with glossy surface and excellent opacity.
Product information
Technical properties
Resistance
| Durability | 3 Year(s) | unprinted, with professional processing, with vertical outdoor weathering, central European normal climate |
|---|---|---|
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Maximum shrinkage |
Maximum shrinkage along: 0.4 mm Maximum shrinkage across : 0 mm |
FINAT TM 14 | bonded to steel |
| Elongation at break |
Minimum elongation at break along: 130 % Minimum elongation at break across: 150 % |
DIN EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 19 MPa Minimum tensile strength across: 19 MPa |
EN ISO 527 |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 80 °C |
adhered on aluminium, central European normal climate |
| Water resistance | Tested | adhered on aluminium | after 48 h/23 °C no change |
Adhesive properties
| Adhesive power | 5 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Removable |
Processing
| Recommended printing procedure | Screen printing, Inkjet printing with latex inks, Inkjet printing with solvent inks, Inkjet printing with UV inks, Digital thermal transfer printing, Flexographic printing, UV offset printing | Digital thermal transfer printing can be used on the glossy surface. Special inks are required for flexographic and UV offset print. | Screen printing is recommended. Inkjet printing is possible with solvent inks, UV or latex inks. |
|---|---|---|
| Application temperature | Minimum temperature 8 °C |
Product Construction
| Liner |
Liner: Silicone cardboard coated on one side Surface weight: 135 g/m² |
|---|---|
| Front material |
Thickness front material: 0.11 mm Front material: Highly pigmented special PVC film |
| Adhesive |
Colour adhesive: Transparent Adhesive: Solvent-polyacrylate |
General
| Thickness | 0.11 mm | Average value, without protective liner and adhesive |
|---|
Dimensions
| Format | Roll, Sheets | |
|---|---|---|
| Standard width | 1000 mm | |
| 1260 mm | ||
| 1370 mm | ||
| 1400 mm | ||
| 1520 mm | ||
| Standard length | 50 m | |
| Standard dimensions sheets | 700 mm X 1000 mm |
