ORAGUARD® 255AS
Laminating Film

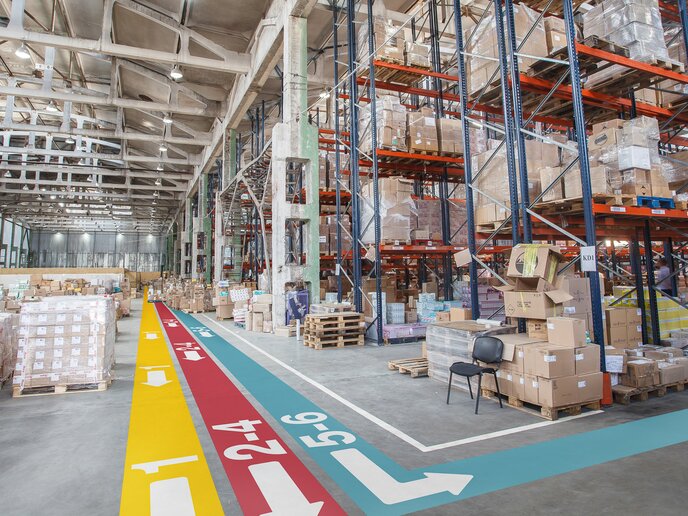

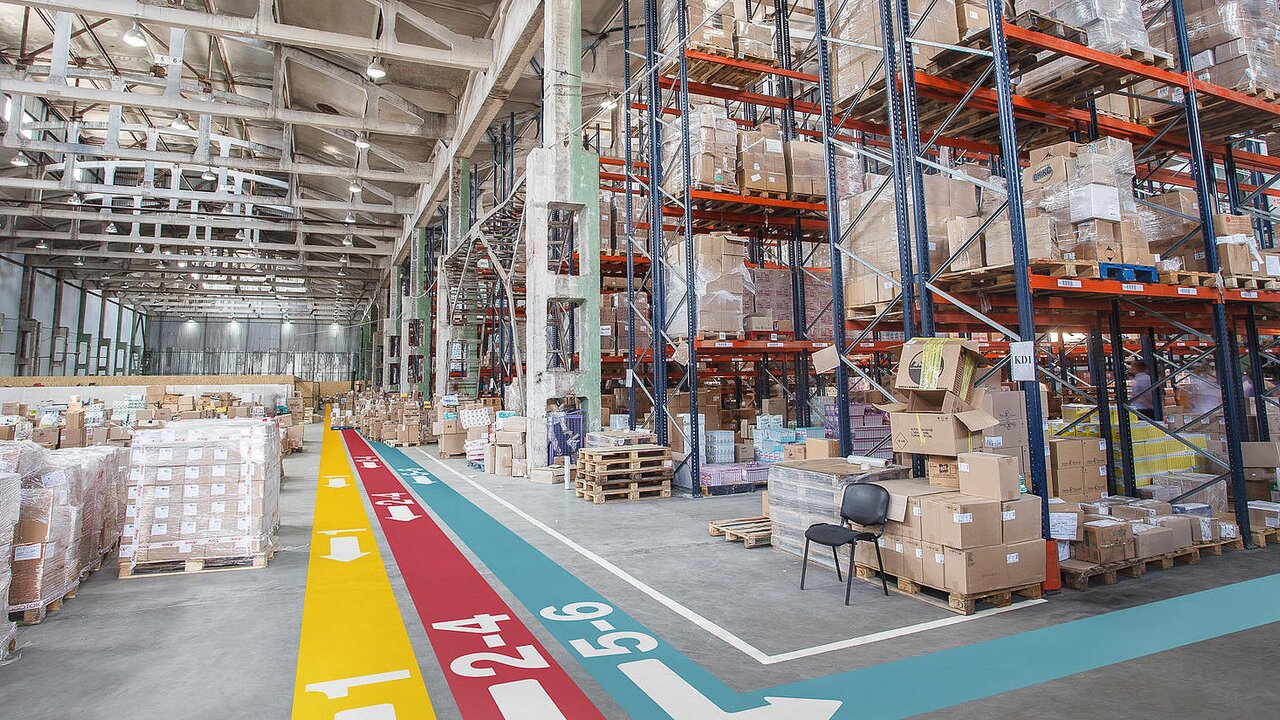

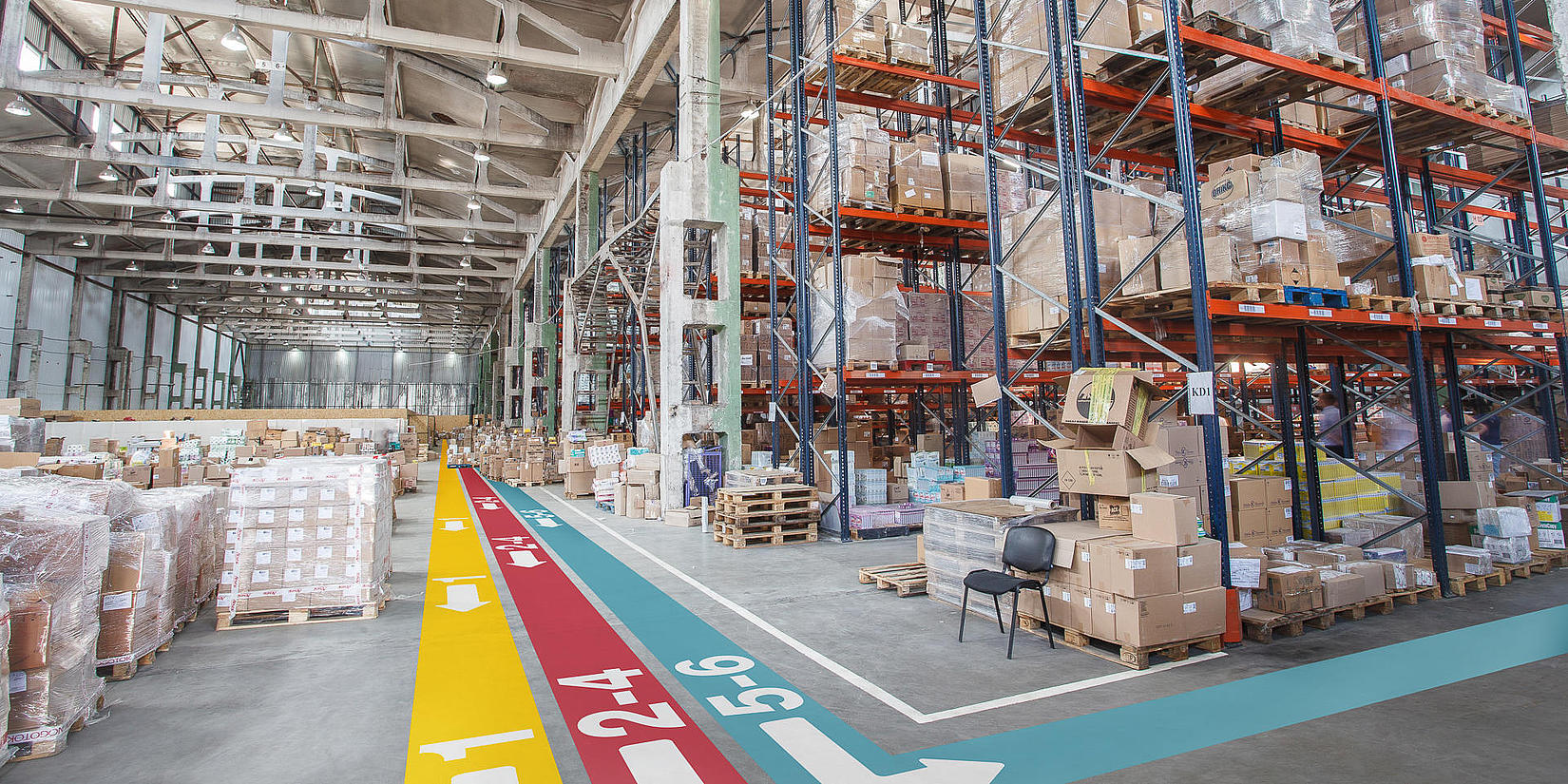

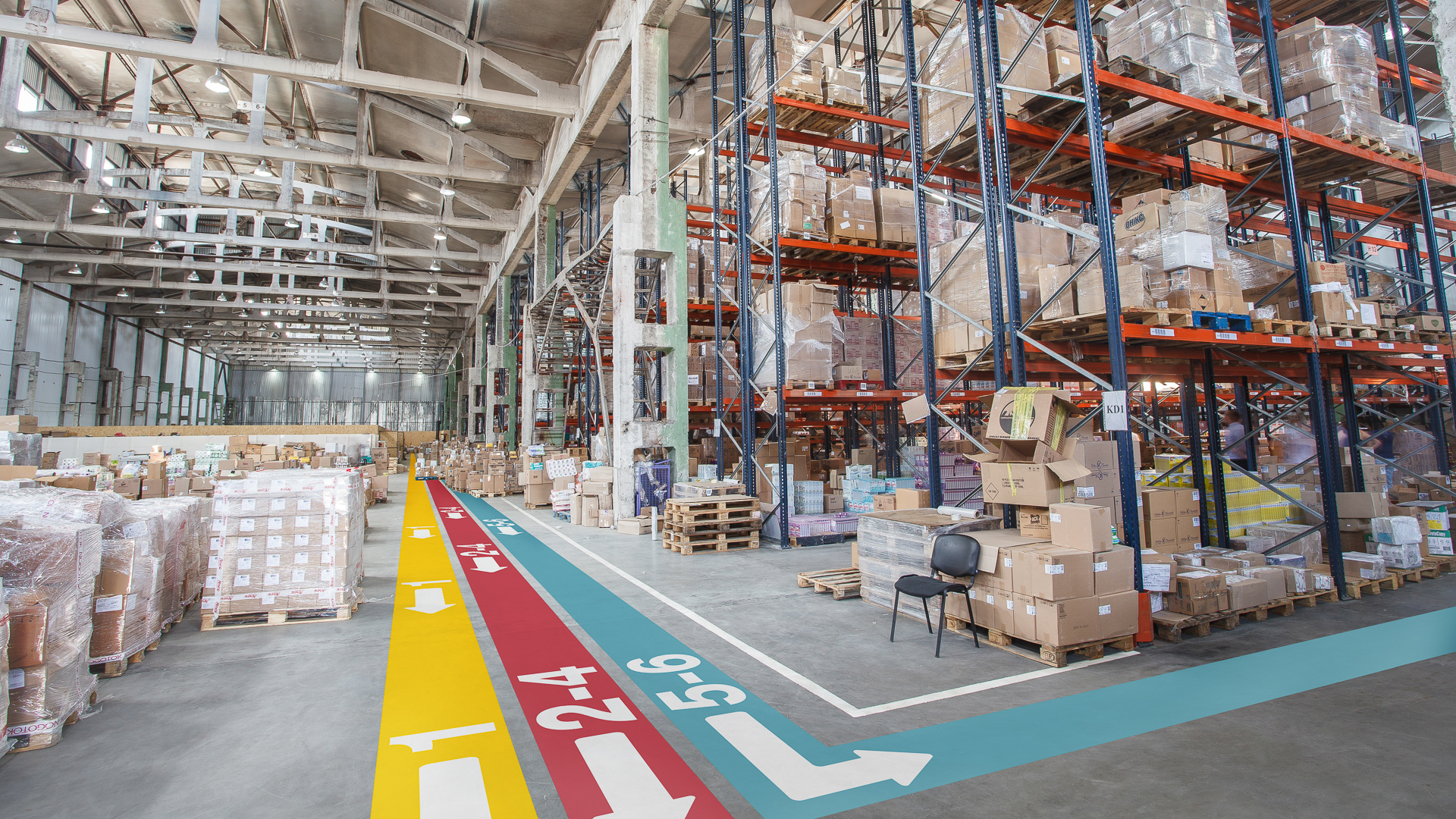

High-quality, durable soft PVC laminate film for indoor and outdoor flooring. Thanks to its embossed surface, it offers high slip resistance and abrasion resistance, ensuring reliable protection even under heavy use. The film is extremely durable and is particularly well-suited for use on sports floors to provide long-lasting protection against mechanical stress.

Product information

Technical properties

Resistance

Durability general note:with horizontal orientation, Central European normal climate
2 Year(s) with horizontal alignment, central European normal climate, without tread load, exterior
5 Year(s) with horizontal alignment, central European normal climate, without tread load, interior
1 Year(s) with horizontal alignment, central European normal climate, with tread load | < 1 year (depending on degree of stress)
Shelf Life 2 Year(s) in original packaging, at 20 °C and 50% relative humidity
Resistance to solvents and chemicals Weak acids, Salts and alkalis, Water, Isopropyl alcohol, Washing suds (0.5 % household cleaner) At room temperature
Maximum shrinkage Maximum shrinkage along 0.4 mm
Maximum shrinkage across 0.4 mm 		product.properties.technical_attributes.durability.maximum_shrinkage_block.maximum_shrinkage_lengthwise_conditon.id.534.4c0e314d | product.properties.technical_attributes.durability.maximum_shrinkage_block.maximum_shrinkage_lengthwise_note.id.534.4c0e314d
Elongation at break Minimum elongation at break along 130 %
Minimum elongation at break across 150 % 		DIN EN ISO 527
Tensile strength Minimum tensile strength along: 22 N/mm²
Minimum tensile strength across: 22 N/mm² 		DIN EN ISO 527
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 60 °C 		Short-term exposure up to 80 °C

Adhesive properties

Adhesive power 12 N/25 mm after 24 h, on stainless steel, average value | Average value
Adhesive Permanent
Processing
Application temperature Minimum temperature 10 °C
Product Construction
Liner Liner: One-sided siliconized kraft paper
Surface weight: 90 g/m²
Front material Thickness front material: 0.017 mm
Front material: Soft PVC Film

General

Thickness 0.17 mm without protective liner and adhesive, average value
Dimensions
Format Roll
Standard width 1050 mm
1300 mm
1400 mm
1550 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2026-02-04.
