Technical data sheet - English (EN)
PDF, 220.58kB, 4 Pages
ORALITE® 6910T
Brilliant Grade Translucent

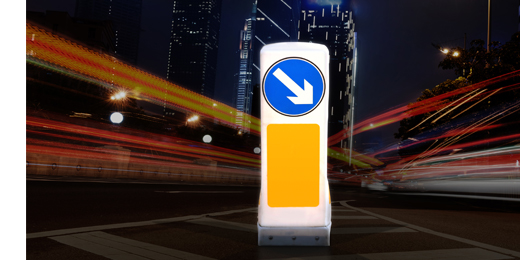

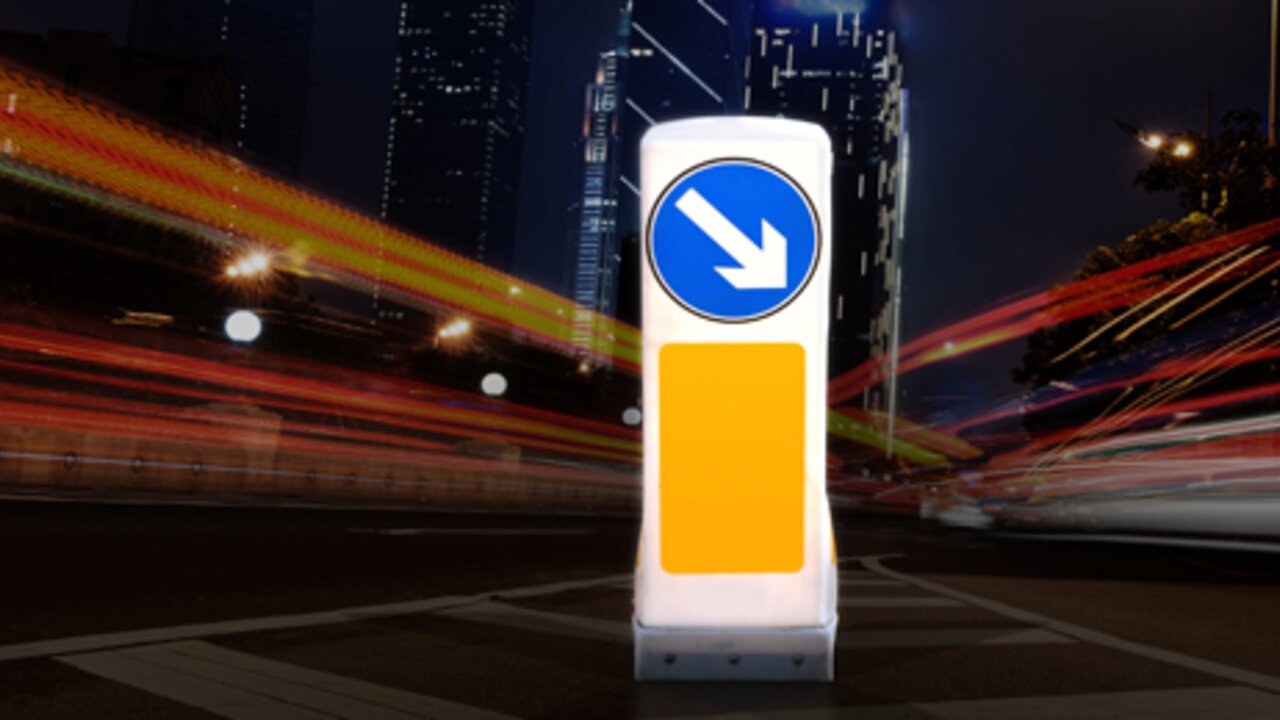

ORALITE® 6910T Brilliant Grade Translucent is a prismatic reflective, translucent film (RA3B, design C) specially developed for the production of internally illuminated signs, traffic signs and markings. It provides excellent light distribution and high diffuse light transmission, ideal for applications such as taxiway markings at airports. The film has a UV-stabilised acrylic film surface and offers high luminance, excellent reflective properties and is particularly resistant to extreme weather conditions. It lasts up to 12 years in outdoor use, with a durability of 10 years for fluorescent colours. Other colours are available on request.
- Reflective properties in accordance with DIN 67520: Ensures high visibility and reflective efficiency (RA3B, design C)
- High diffuse light transmission: Provides uniform light distribution and high light diffusion
- Excellent luminance: Ensures high brightness and reflection in the dark
- Excellent printability: Suitable for screen printing with ORALITE® 5018 and UV digital printing with ORALITE® 5019i and the ORALITE® UV Traffic Sign Printer
Available colours
4 Colours
010
White
020
Yellow
037
Yellow fluorescent
029
Yellow-Green fluorescent
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | Durability (general note):with professional processing, with vertical outdoor weathering, central European normal climate | |
| 12 | unprinted, standard colours | |
| 10 | unprinted, for y Yellow-Green fluorescent and Yellow fluorescent | |
| 3 Year(s) | unprinted, for Orange fluorescent | |
| Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -56 °C Maximum temperature: 82 °C |
product.properties.technical_attributes.durability.temperature_resistance_block.temperature_resistance_condition.id.368.a48e0d88 |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Screen printing, Digital print with UV-curing inks |
|---|---|
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner | One-sided silicon-coated PP film |
|---|---|
| Front material | Acrylic film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.345 mm | Standard colours, average value, without protective liner |
|---|---|---|
| 0.385 mm | fluorescent colours, average value, without protective paper |
Reflective Characteristics
| Reflective Technology | Prismatic |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design C |
| Reflectivity classes: RA3B |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1235 mm |
| 610 mm | |
| Standard length | 50 m |
Downloads
Technical documents
Product information - English (EN)
PDF, 140.42kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
Catalogue
Traffic Signs & Construction Zones - English (EN)
PDF, 3.13MB, 24 Pages
