ORALITE® 5430
Construction Grade

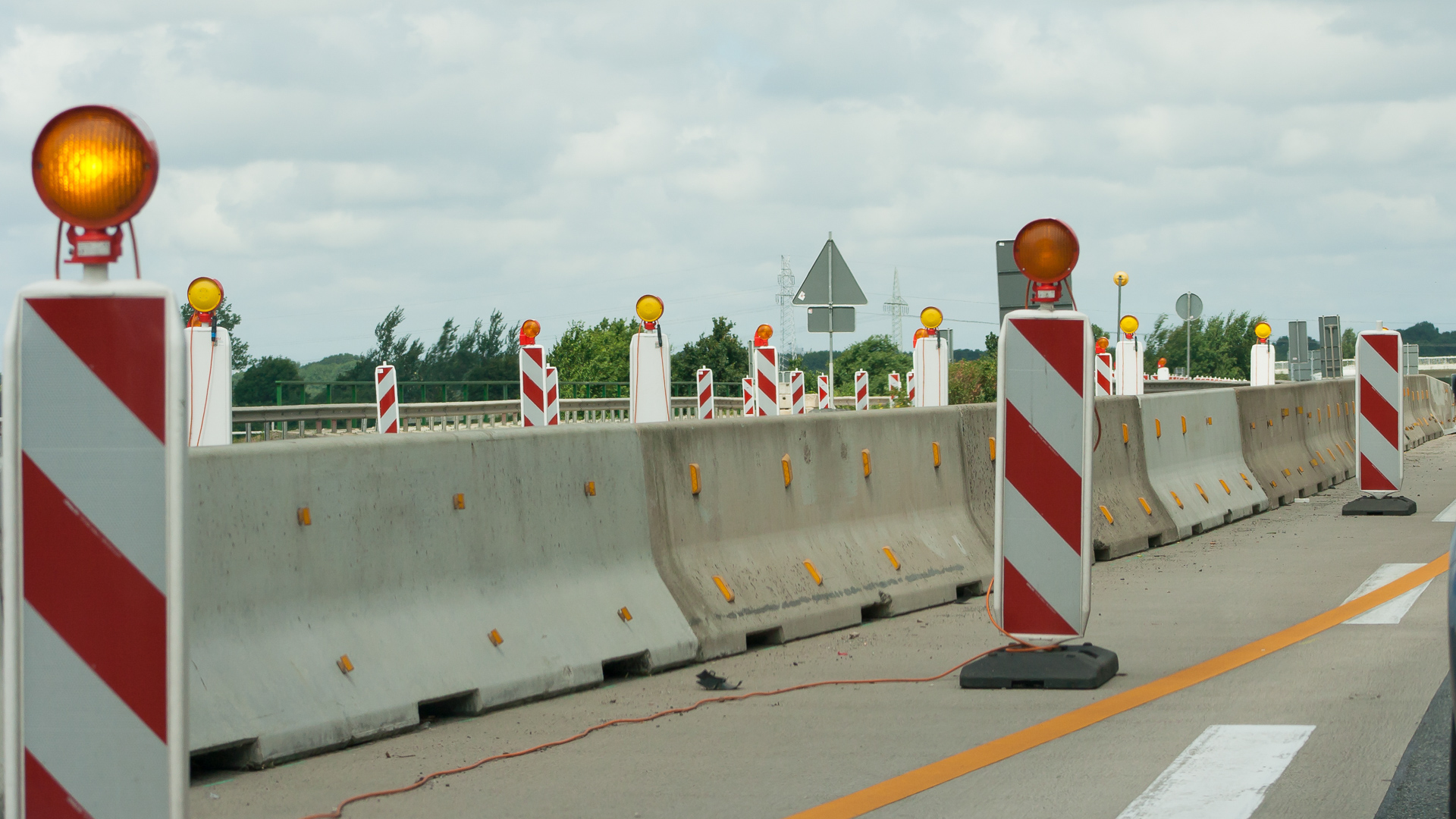

ORALITE® 5430 Construction Grade is a reflective film (RA1, design A, 0.130 mm) designed for reflective traffic control devices such as construction work zone signage. It offers excellent visibility, durability of up to 4 years, and is ID watermarked. The series is available in white, yellow, and red, as well as in other colours and dimensions upon request. Also applicable on polyolefin surfaces.
- High Visibility: RA1 (design A) reflective film for excellent nighttime visibility
- Flexible Application: Suitable for polyolefin surfaces
- Long-Lasting Durability: Up to 4 years of outdoor durability
- Strong Adhesion: Solvent- polyacrylate with high tack for permanent application
Available colours
3 Colours
010
White
020
Yellow
030
Red
Product information
Technical properties
Resistance
| Durability | 4 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
|---|---|---|
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Screen printing, Solvent-based inkjet printing, Latex printing, Digital print with UV-curing inks | Please observe the information of the printer and ink manufacturers and determine whether a lamination is required. |
|---|---|---|
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner |
Liner: Silicone cardboard PE coated on both sides Surface weight: 145 g/m² |
|---|---|
| Front material |
Front material: Premium PVC film Manufacturing process: Moulded |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.13 mm | Average value, without protective paper |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design A |
| Reflectivity classes: RA1 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 610 mm |
| 1235 mm | |
| Standard length | 50 m |
