ORALITE® 5300
Commercial Grade

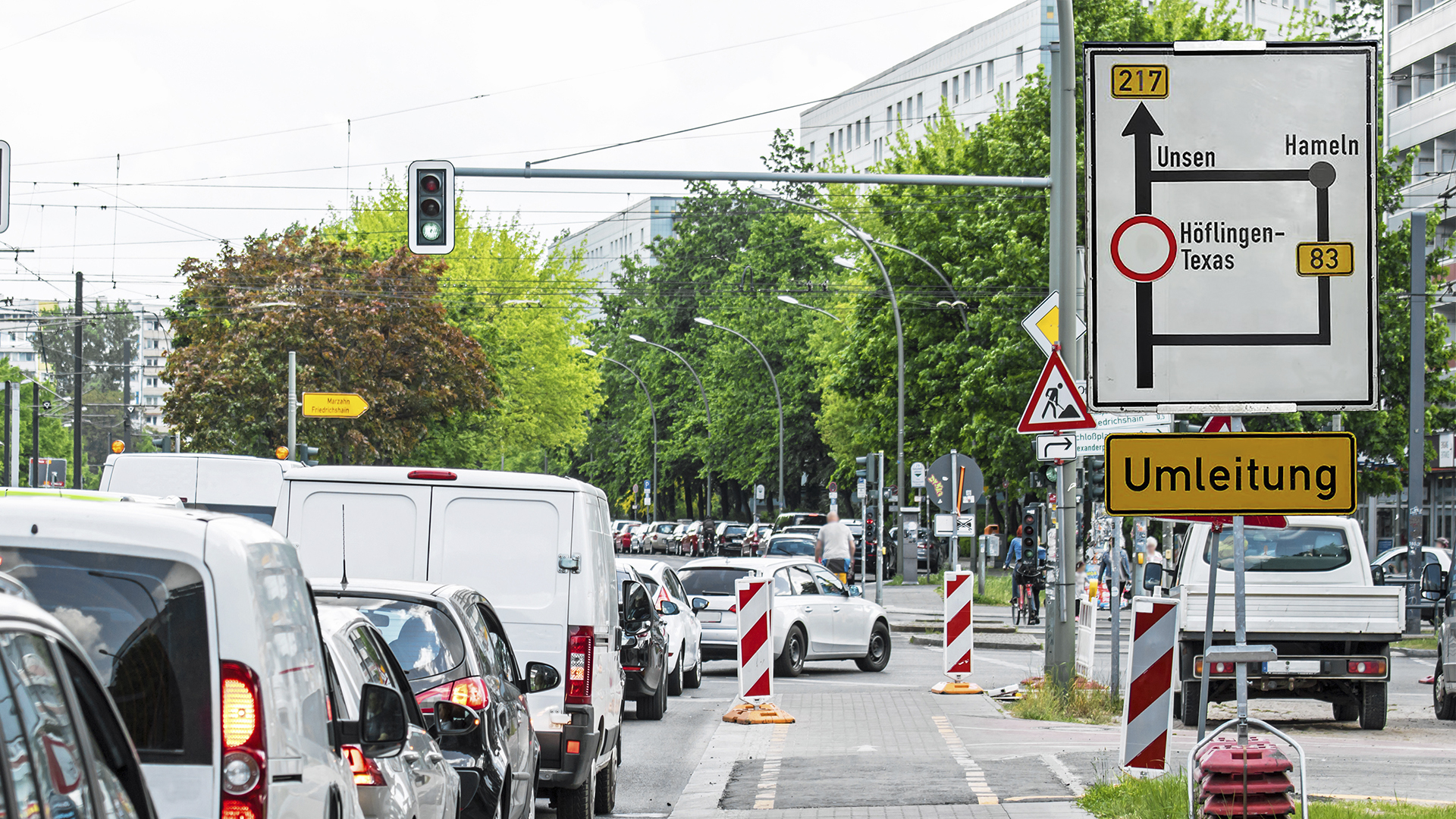

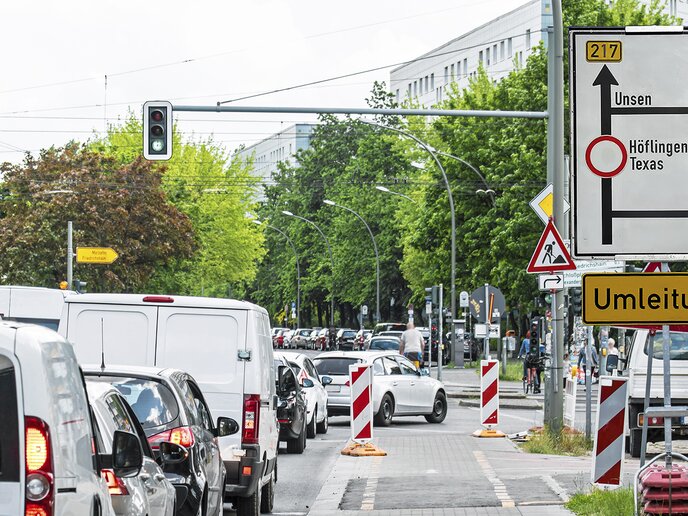

ORALITE® 5300 Commercial Grade is a versatile reflective film (RA1, design A, 0.09 mm) specially developed for signage and information boards where a minimum level of reflectivity is sufficient. It impresses with its durability of up to 7 years and is available in 6 colours. The permanent solvent polyacrylate adhesive ensures reliable adhesion to various surfaces.
- Versatile applications: Ideal for directional signage and message boards with moderate reflectivity requirements
- Robust and smooth surface: Offers high scratch and impact resistance as well as very good printability
- Durability: Up to 7 years for permanent applications
- Reliable adhesion: Equipped with permanent solvent polyacrylate adhesive for long-lasting adhesion
- Choice of colours: Available in 6 colours for versatile design options
Available colours
6 Colours
010
White
020
Yellow
035
Orange
030
Red
060
Green
050
Blue
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 7 Year(s) | unprinted, with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Mineral oils, Greases, Fuels, Aliphatic solvents, Salts and alkalis, Weak acids | with professional bonding |
| Seawater resistance | Tested | adhered on aluminium | DIN 50021, after 100 h/ 23 °C no change |
| Temperature resistance |
Minimum temperature: -50 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Screen printing |
|---|---|
| Application temperature | Minimum temperature 10 °C |
| Proposed application technology | Dry application |
Product Construction
| Liner |
Liner: Silicone cardboard PE coated on both sides Surface weight: 155 g/m² |
|---|---|
| Front material |
Thickness front material: 0.095 mm Front material: Premium PVC film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.095 mm | Average value, without protective liner and adhesive |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design A |
| Reflectivity classes: RA1 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 610 mm |
| 1235 mm | |
| Standard length | 50 m |
