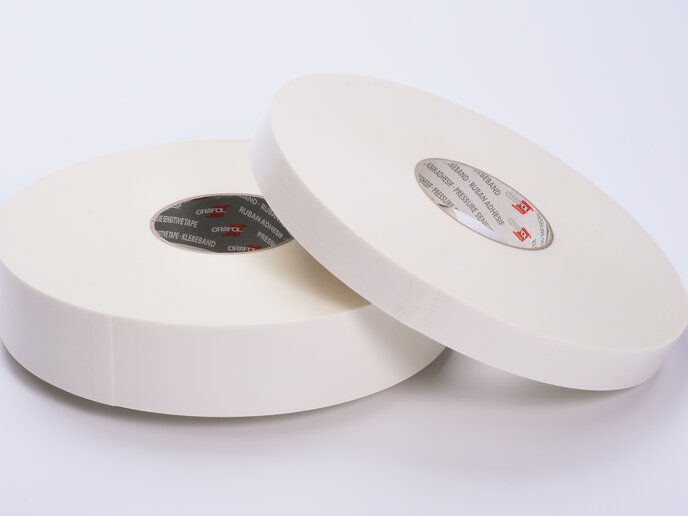

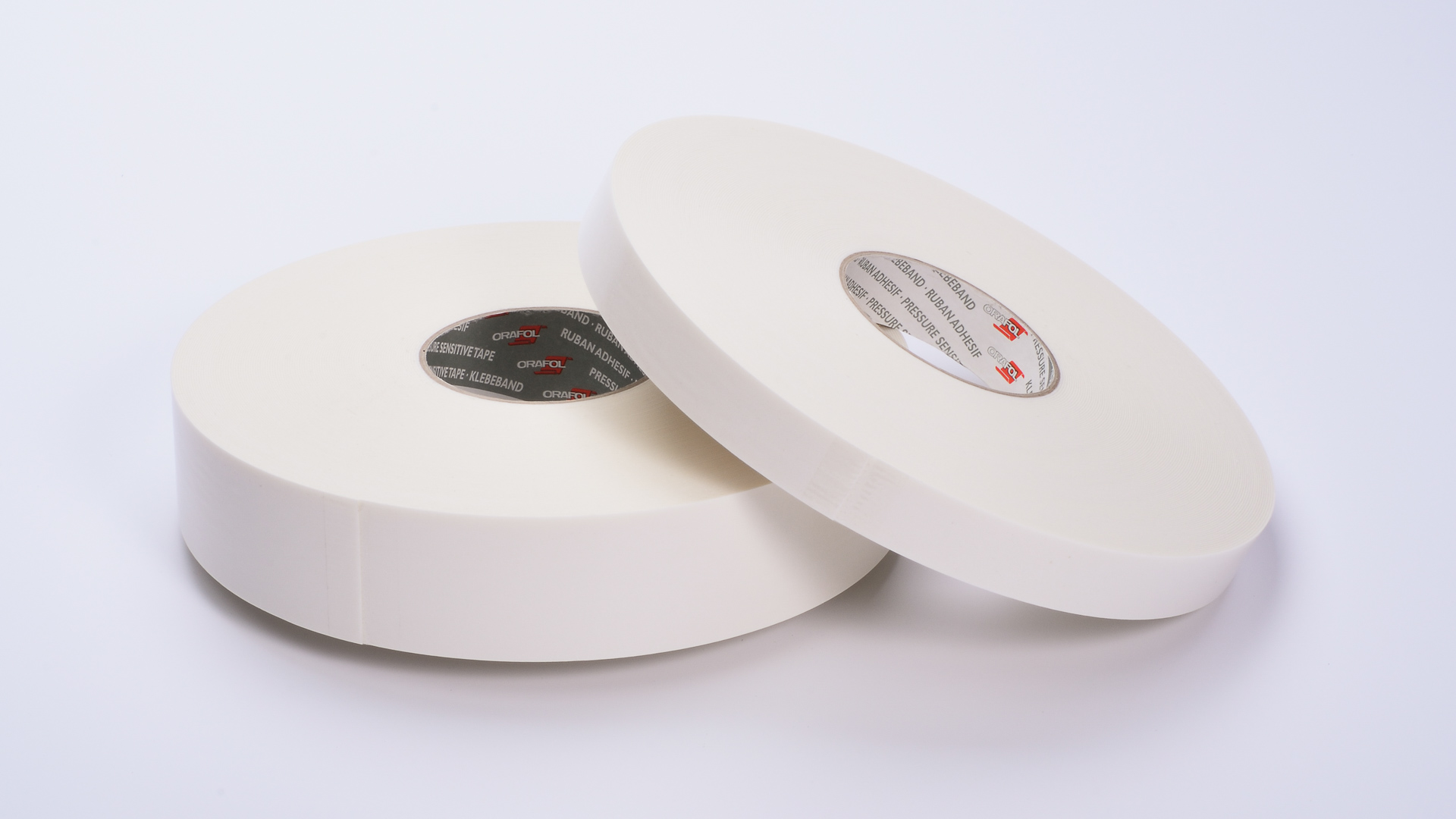

ORABOND® 1840

The double-sided adhesive tape consists of a white closed-cell polyolefin foam that is coated on both sides with a rubber adhesive. The adhesive is characterised by amongst other things good adhesion on apolar substrates. The double-sided mounting tape is covered with white silicone paper.

Product information

Technical properties

Resistance

Shelf Life 1 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -30 °C
Maximum temperature: 70 °C 		1 h, central European normal climate

Adhesive properties

Adhesive power 18 N/25 mm after 1 min, FINAT TM 1, on stainless steel, covered on one side with 0.05 mm polyester film | Average value
36 N/25 mm after 20 min, foam tear, FINAT TM 1, on stainless steel, covered on one side with 0.05 mm polyester film | Average value
36 N/25 mm after 24 h, foam tear, FINAT TM 1, on stainless steel, covered on one side with 0.05 mm polyester film | Average value
Initial adhesion (loop tack) 28 N/25 mm Average value | FINAT TM 9
Maximum shear strength 500 Hour(s) at 23 °C, FINAT TM 8, on stainless steel, covered on one side with 0.05 mm polyester film | Average value
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Adhesive covered side Synthetic rubber
Adhesive open side Synthetic rubber
Carrier Colour carrier: White
Carrier: Closed-cell polyethylene foam
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1550 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
