ORALITE® VC 104+
Rigid Grade - Rear Kit

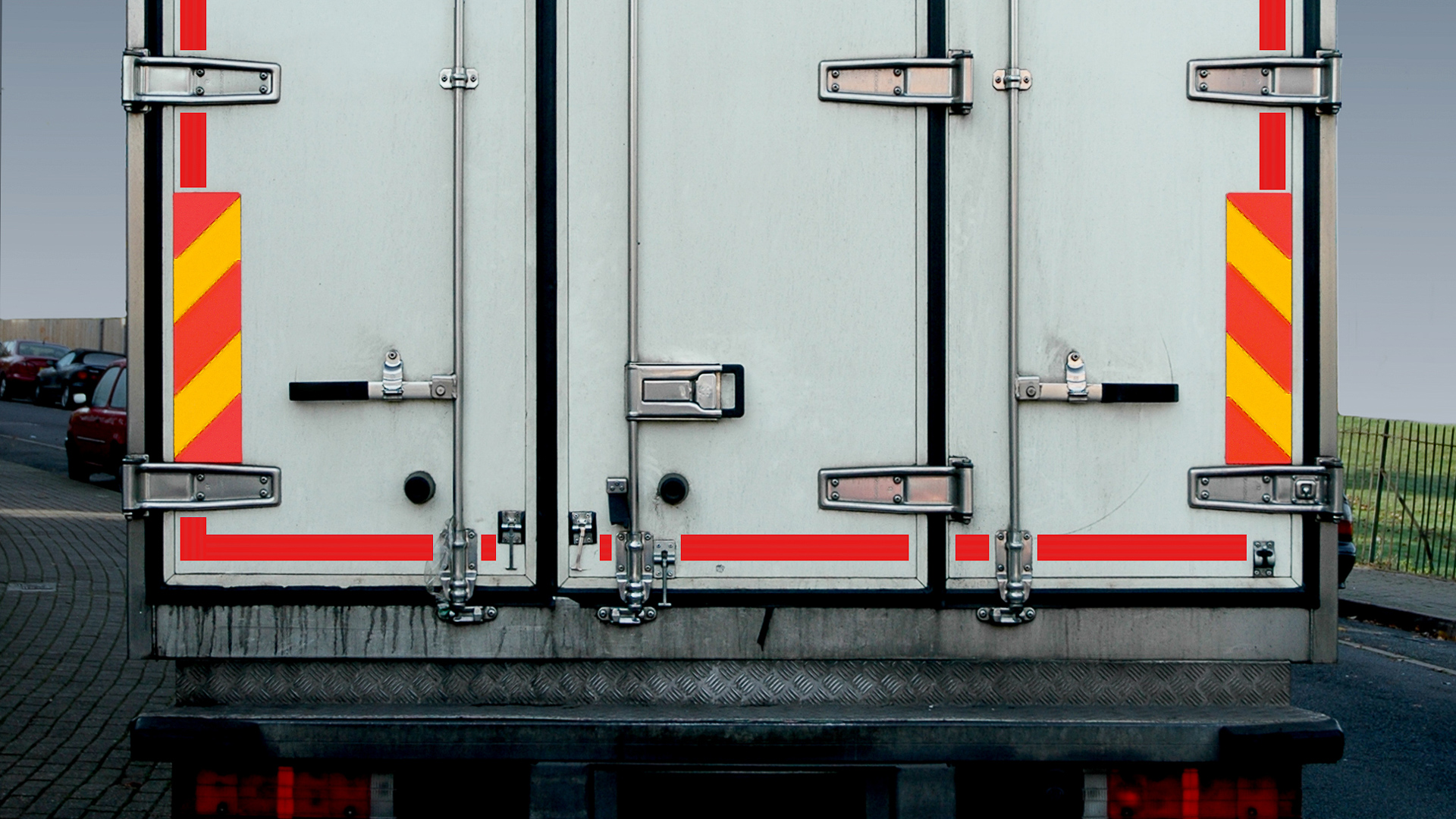

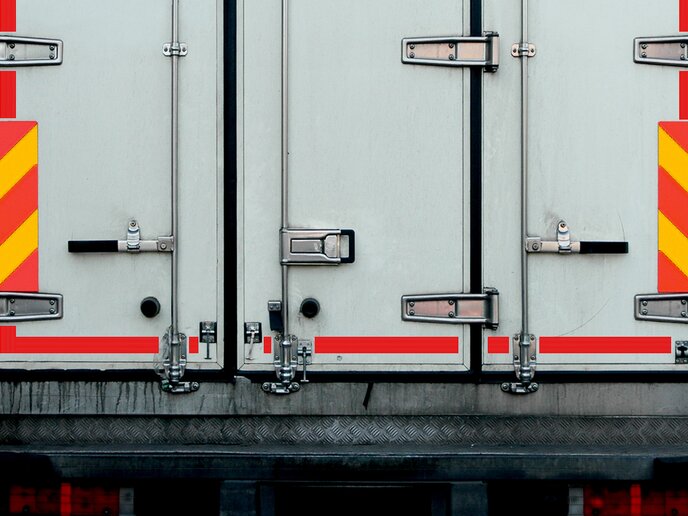

ORALITE® VC 104+ Rigid Grade - Rear Kit is the ideal contour marking for trucks and trailers with rigid bodies. A rear kit contains a 12.5 m long roll of material sufficient to mark the rear of a vehicle. The single-layer, metallized, prismatic construction made of robust polyester guarantees maximum durability (10 years) and the best resistance to high-pressure cleaning and other mechanical stresses. ORALITE® VC 104+ Rigid Grade - Rear Kit offers excellent visibility at night even from long distances, is approved to ECE 104 Class C and carries the required E-marks. The ORALITE® VC 104+ product series is the contour marking that has proven itself over decades and makes large vehicles visible and safe at night - manufactured by the inventor of metallized, prismatic reflective films.
  • Approved according to ECE 104 class C, material bears the corresponding E-marks
  • Excellent visibility at night, even at long distances
  • Single-layer construction ensures easy processing without additional edge sealing of the cut edges
  • Robust and durable: 10-year durability; resistant to high-pressure cleaning and mechanical stress
  • One rear kit is sufficient for marking the rear of a vehicle

Product information

Technical properties

Resistance

Durability 10 Year(s)
Shelf Life 1 Year(s) in original packaging, at 20 °C and 50 % relative humidity | Storing must be effected in a clean and dry location without direct sunlight.
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 90 °C 		The bonding temperature depends on various factors, e.g. adhesion properties of the substrate, ambient conditions, load and application method. | The data is based on laboratory tests without stress.
Processing
Application temperature Minimum temperature: 10 °C
Maximum temperature: 38 °C
Product Construction

General

Thickness 0.16 mm
Front material Special Polyester film
Reflective Characteristics
Reflective Technology Prismatic
Dimensions
Format Roll
Standard width 50 mm
Standard length 12 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
