ORALITE® 5960
High Intensity Prismatic Construction Grade

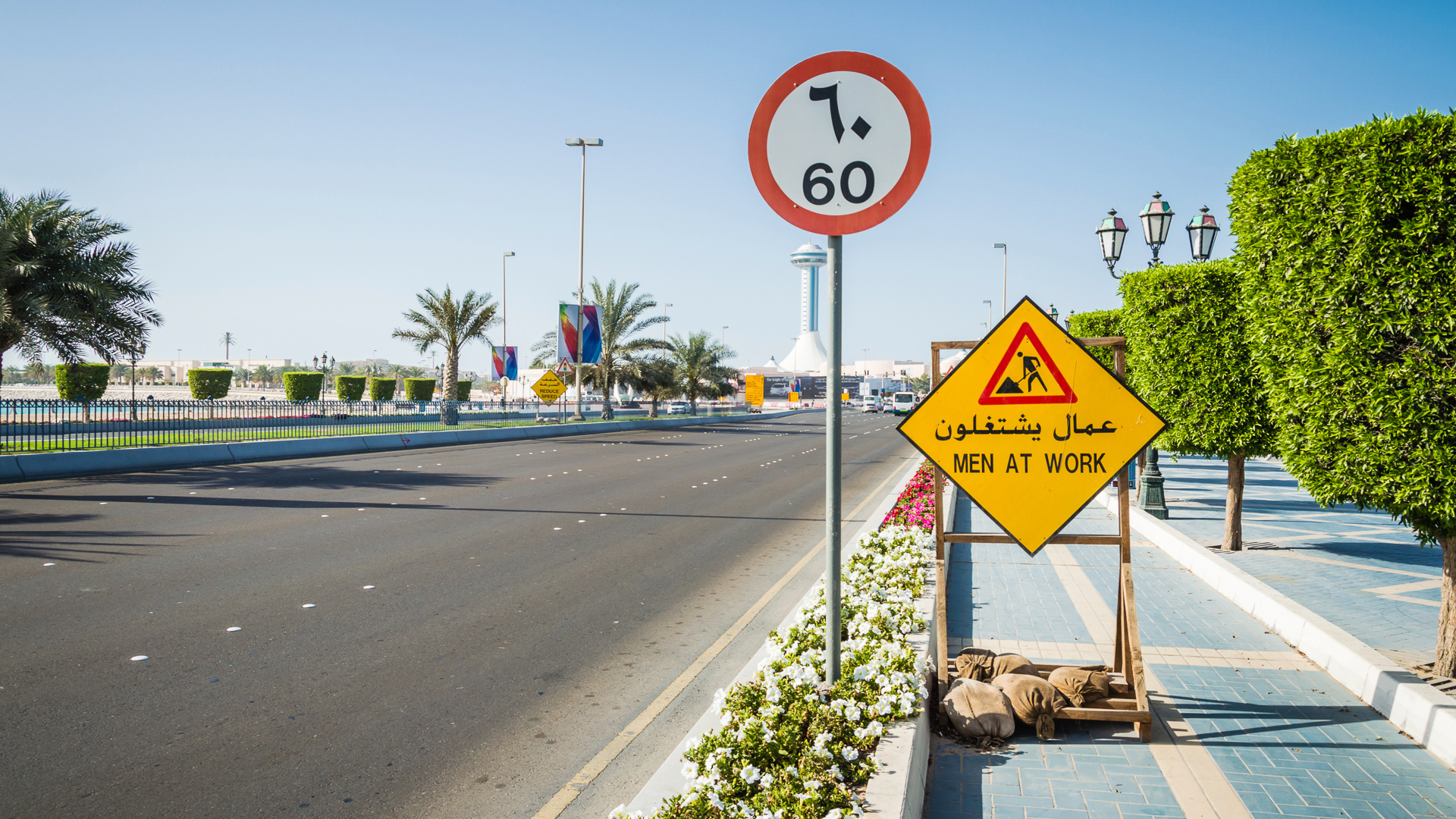

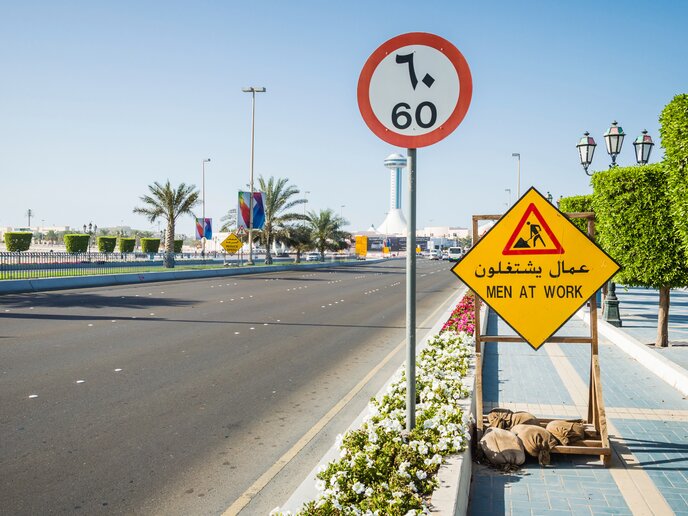

ORALITE® 5960 High Intensity Prismatic Construction Grade is a highly reflective film (RA2, design C) with a honeycomb structure specially developed for temporary traffic signs, guidance devices and warning markings. Available in 9 colours, the film offers exceptional corrosion and solvent resistance. It is equipped with a permanent solvent polyacrylate adhesive and is suitable for outdoor use with a durability of 5 years.
- Excellent visibility: Ideal for temporary traffic signs and guidance systems, warning markings and information boards

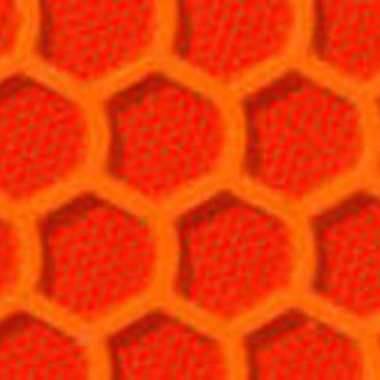

- Striking honeycomb structure with choice of colours: Clear visibility thanks to the honeycomb structure, available in 9 colours
- Highest solvent and corrosion resistance: Ideal for outdoor use
- Durable and strong adhesion: Up to 5 years durability with permanent solvent polyacrylate adhesive for a secure hold
Available colours
9 Colours
010
White
020
Yellow
035
Orange
030
Red
050
Blue
060
Green
080
Brown
029
Yellow-Green fluorescent
038
Orange fluorescent
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 5 Year(s) | unprinted, with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -56 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Digital print with UV-curing inks, Screen printing |
|---|---|
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner | One-sided silicon-coated PP film |
|---|---|
| Front material | Acrylic film |
| Adhesive |
Colour adhesive: White Adhesive: Solvent-polyacrylate |
General
| Thickness | 0.295 mm | Standard colours, average value, without protective liner |
|---|---|---|
| 0.385 mm | fluorescent colours, average value, without protective paper |
Reflective Characteristics
| Reflective Technology | Prismatic |
|---|---|
| Reflectivity Compliance | Reflective film structure: Aufbau C (mikroprismatisch) |
| Reflectivity classes: RA2 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1235 mm |
| 610 mm | |
| Standard length | 50 m |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 176.27kB, 6 Pages
Product information - English (EN)
PDF, 193.75kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2026-02-04.
Catalogue
Traffic Signs & Construction Zones - English (EN)
PDF, 4.13MB, 40 Pages
