ORALITE® 5930
Prismatic Construction Grade

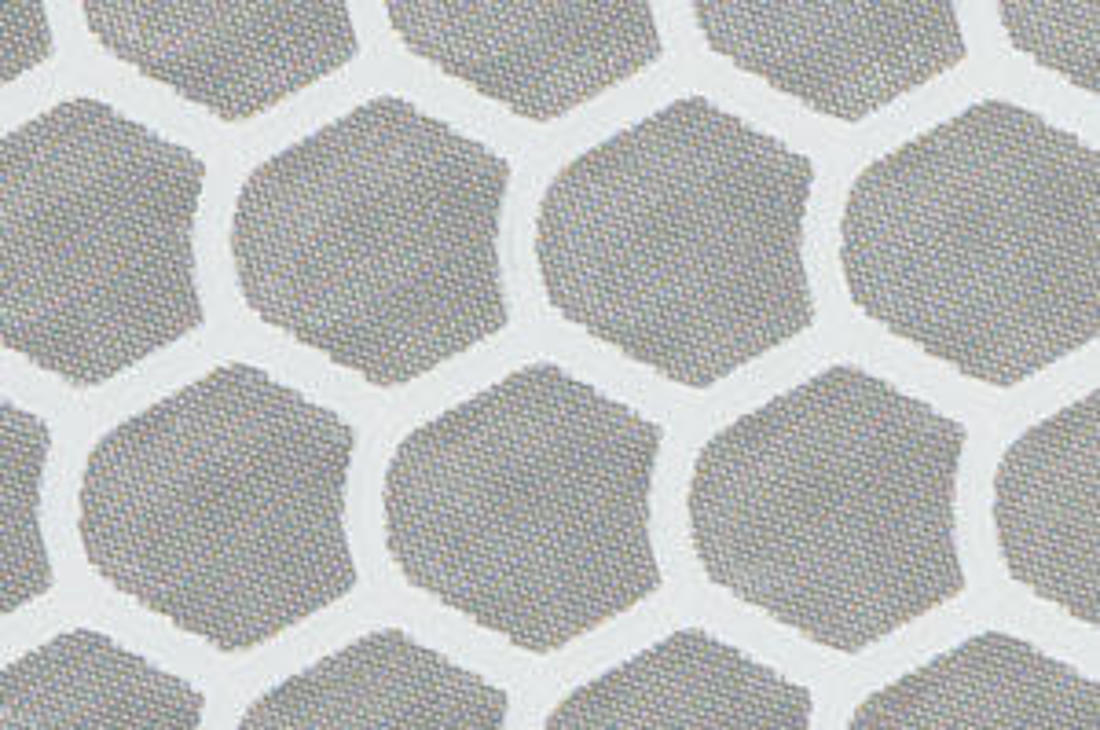

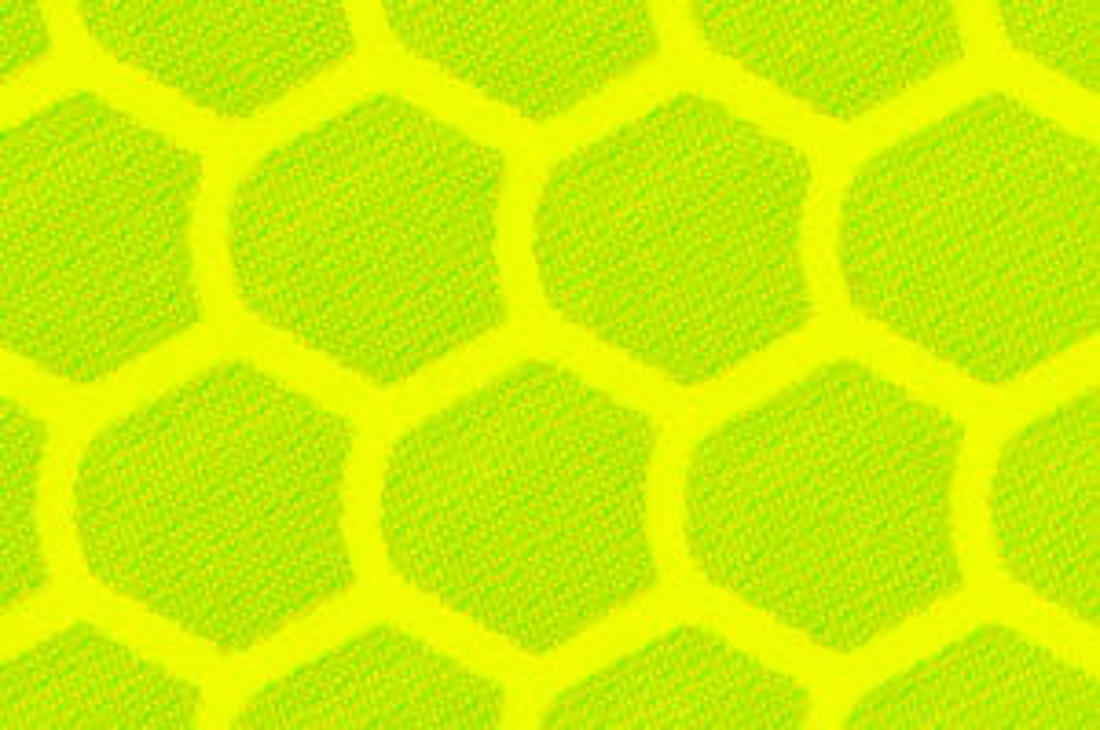

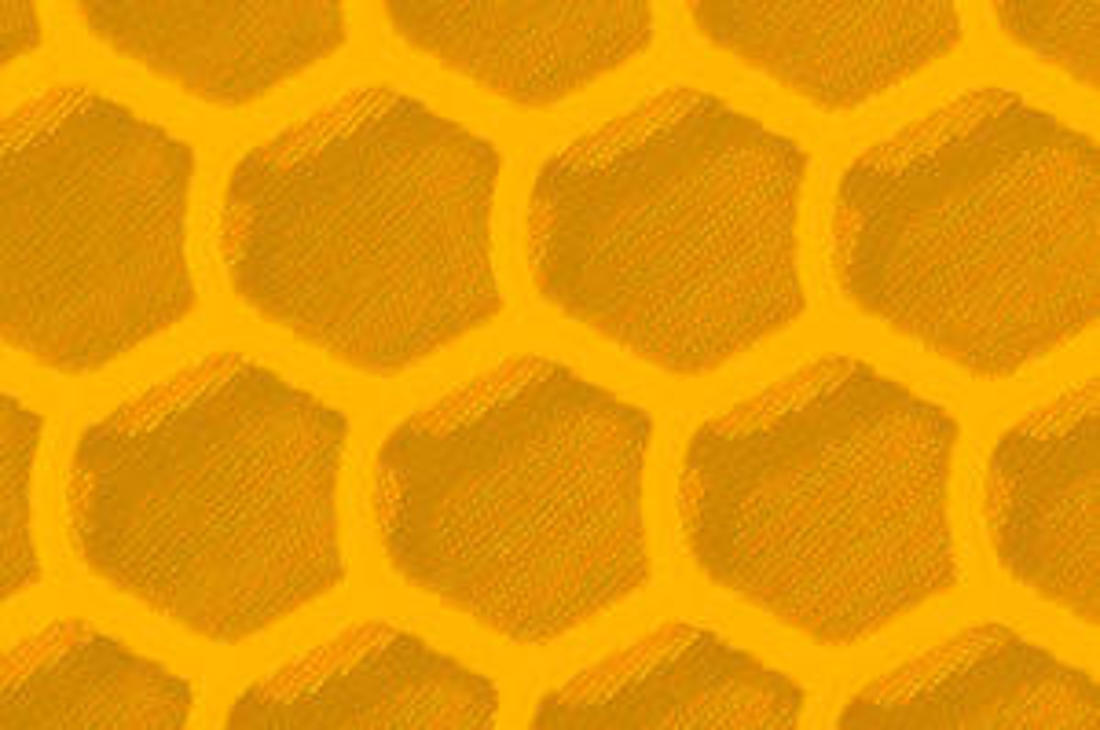

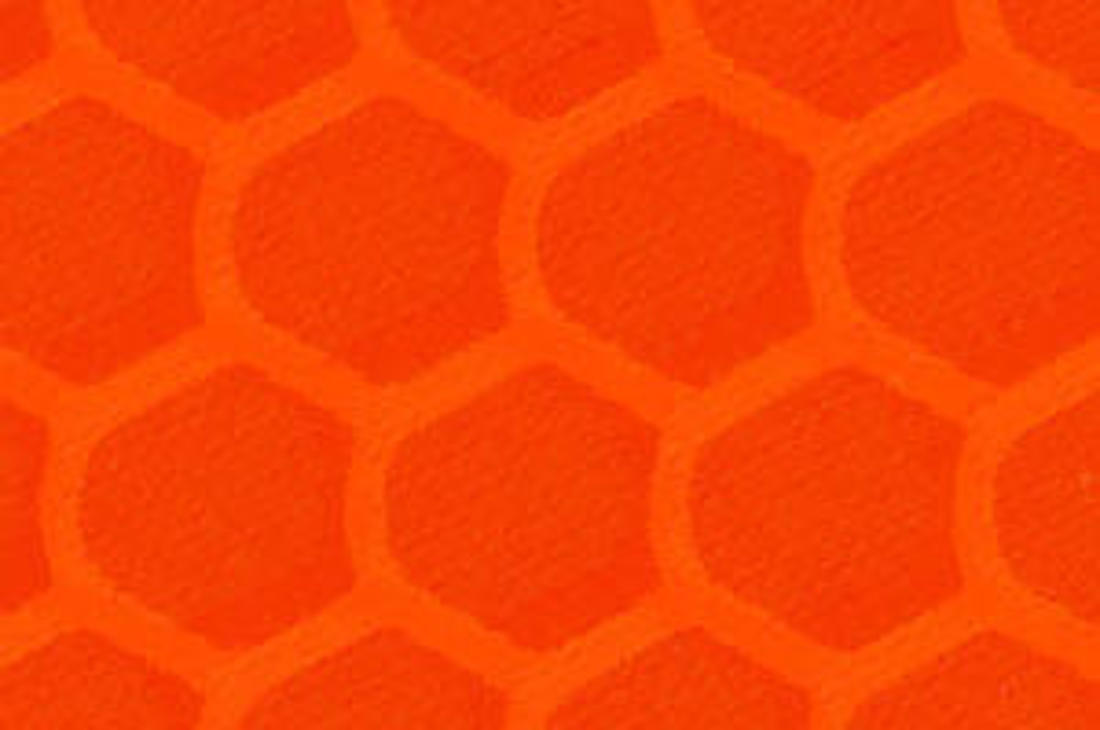

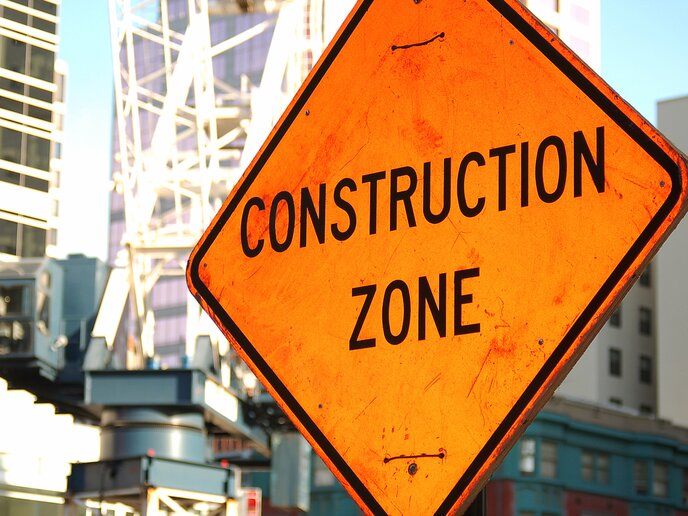

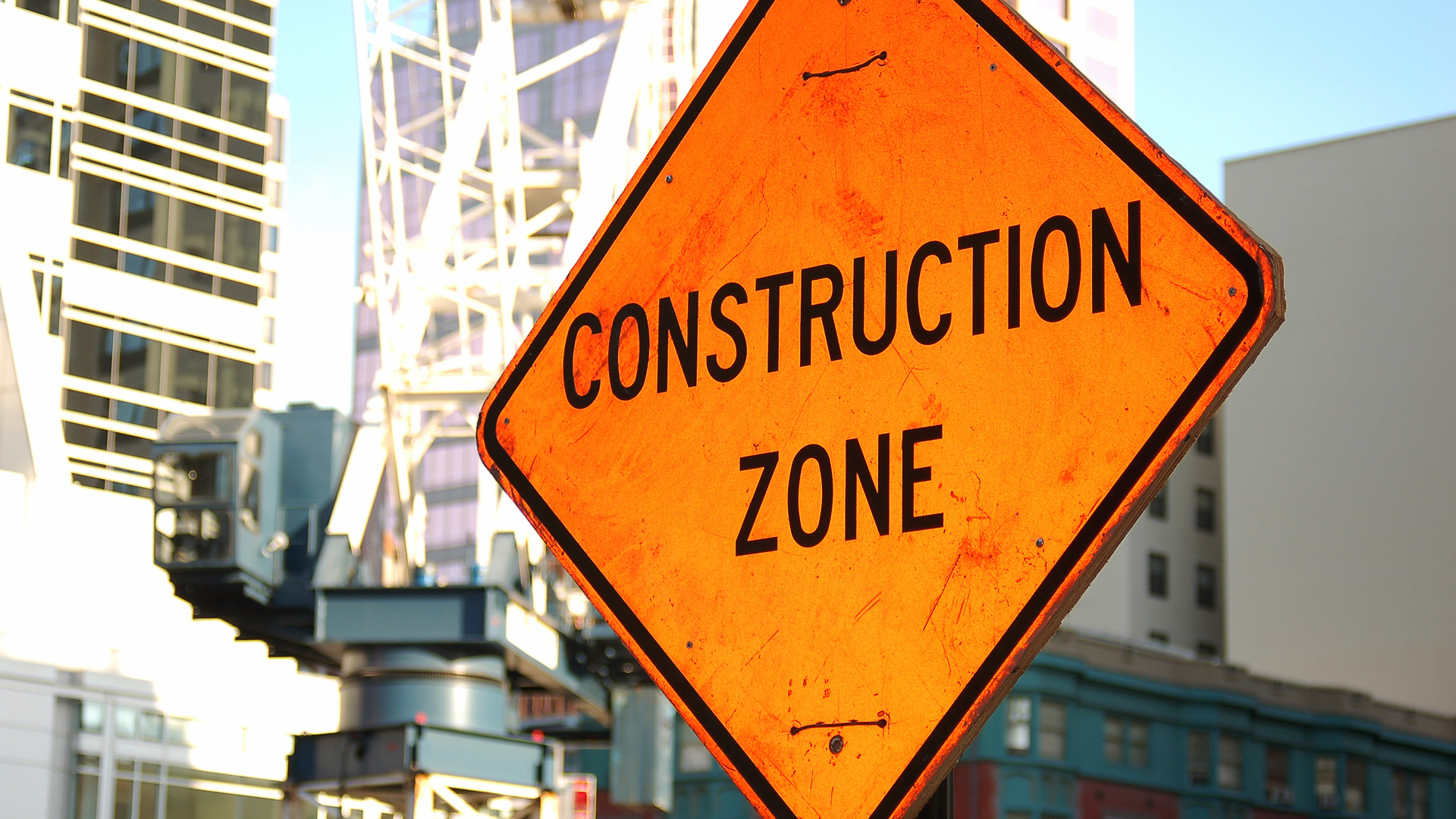

ORALITE® 5930 Prismatic Construction Grade is a highly reflective and flexible reflective film of class RA2 (design C) with a thickness of 0.510 mm. It is ideal for construction work zone traffic and guidance signs, especially when applied on polyolefin surfaces. The film offers an excellent resistance to corrosion and solvents as well as a durability of up to 5 years. It is available in 7 colours and CE-certified.
  • Certified Quality: CE Declaration of Performance ensures compliance with all relevant safety standards
  • Optimum reflective performance High Reflectivity: The reflective film 5930 (RA2, design C, 0.510 mm) ensures high performance visible safety
  • Flexibility: Material properties ensure excellent bonding to various surfaces, ideal for polyolefin substrates
  • Robust with high initial tack: Solvent polyacrylate ensures long-term adhesion with high initial tack, offers an excellent resistance to corrosion and solvents

Product information

Technical properties

Resistance

Resistance to cleaning agents No change adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C
Durability 5 Year(s) with professional processing, with vertical outdoor weathering, central European normal climate
Shelf Life 1 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 82 °C 		adhered on aluminium

Adhesive properties

Adhesive power 15 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1
Adhesive Permanent
Processing
Recommended printing procedure Screen printing, Digital print with UV-curing inks
Suitable substrate Metals, Galvanised sheet steel, Aluminium, Polyolefin substrates
Application temperature Minimum temperature 10 °C
Product Construction
Liner One-sided silicon-coated PP film
Front material Polymer PVC film
Adhesive Solvent-polyacrylate

General

Thickness 0.51 mm Average value, without protective liner and adhesive
Reflective Characteristics
Reflective Technology Prismatic
Reflectivity Compliance Reflective film structure: Design C
Reflectivity classes: RA2
Dimensions
Format Roll
Standard width 1235 mm
610 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
