ORALITE® 5910
High Intensity Prismatic Grade
ORALITE® 5910 High Intensity Prismatic Grade was developed for use in traffic control. The solution offers excellent visibility, high resistance to corrosion and solvents, and a long durability of up to 10 years with proper application. The film is available in 9 colours and meets all relevant standards (EN 12899, DIN 67520, DIN 6171) with CE certification.
- Certified quality: BASt approval, CE certificate, and annex, complies with EN 12899, DIN 67520, and DIN 6171
- High-quality reflective film: ORALITE® 5910 provides reflective class RA2 (design C) with a thickness of 0.320 mm (standard) or 0.385 mm (high intensity) for excellent nighttime visibility

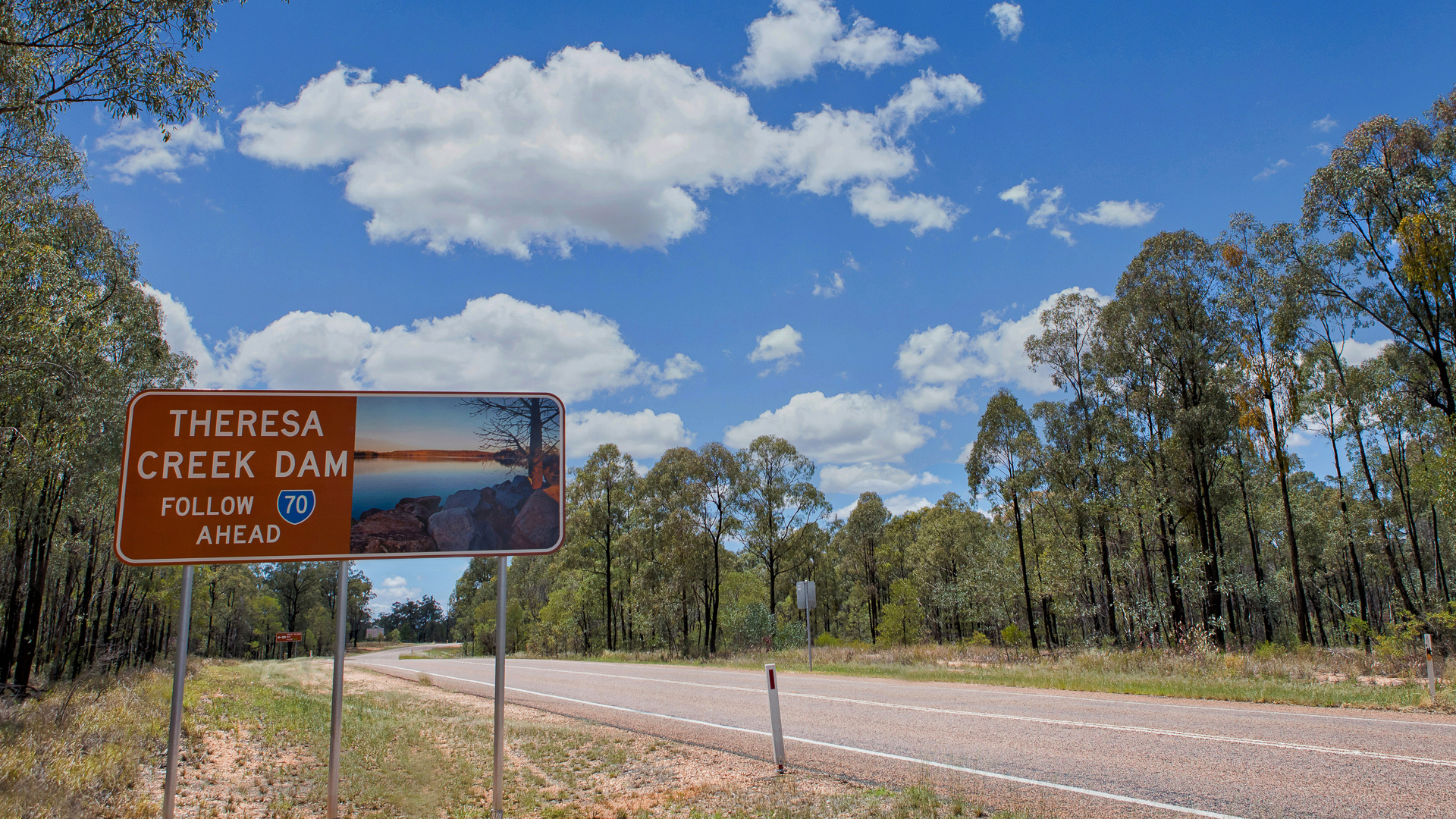

- Versatile colour options: Available in 9 colours , ideal for traffic signs and guideposts
- Long durability: Expected service life of up to 10 years with proper application
Available colours
9 Colours
010
White
020
Yellow
030
Red
035
Orange
050
Blue
060
Green
080
Brown
029
Yellow-Green fluorescent
037
Yellow fluorescent
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 10 Year(s) | unprinted, with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -56 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Screen printing, Digital print with UV-curing inks, Eco-solvent printing |
|---|---|
| Suitable substrate | Metals, Aluminium, Galvanised sheet steel |
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner | One-sided silicon-coated PP film |
|---|---|
| Front material | Acrylic film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.32 mm | Standard colours, average value, without protective liner |
|---|---|---|
| 0.385 mm | fluorescent colours, average value, without protective paper |
Reflective Characteristics

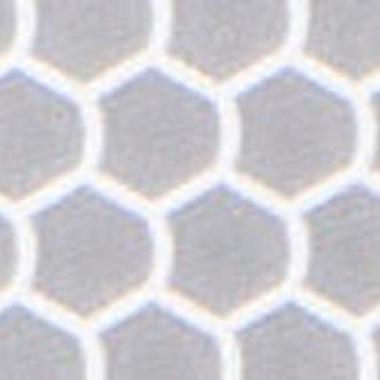

| Reflective Technology | Prismatic |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design C |
| Reflectivity classes: RA2 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1235 mm |
| 610 mm | |
| Standard length | 50 m |
