ORALITE® 5830
High Intensity Construction Grade

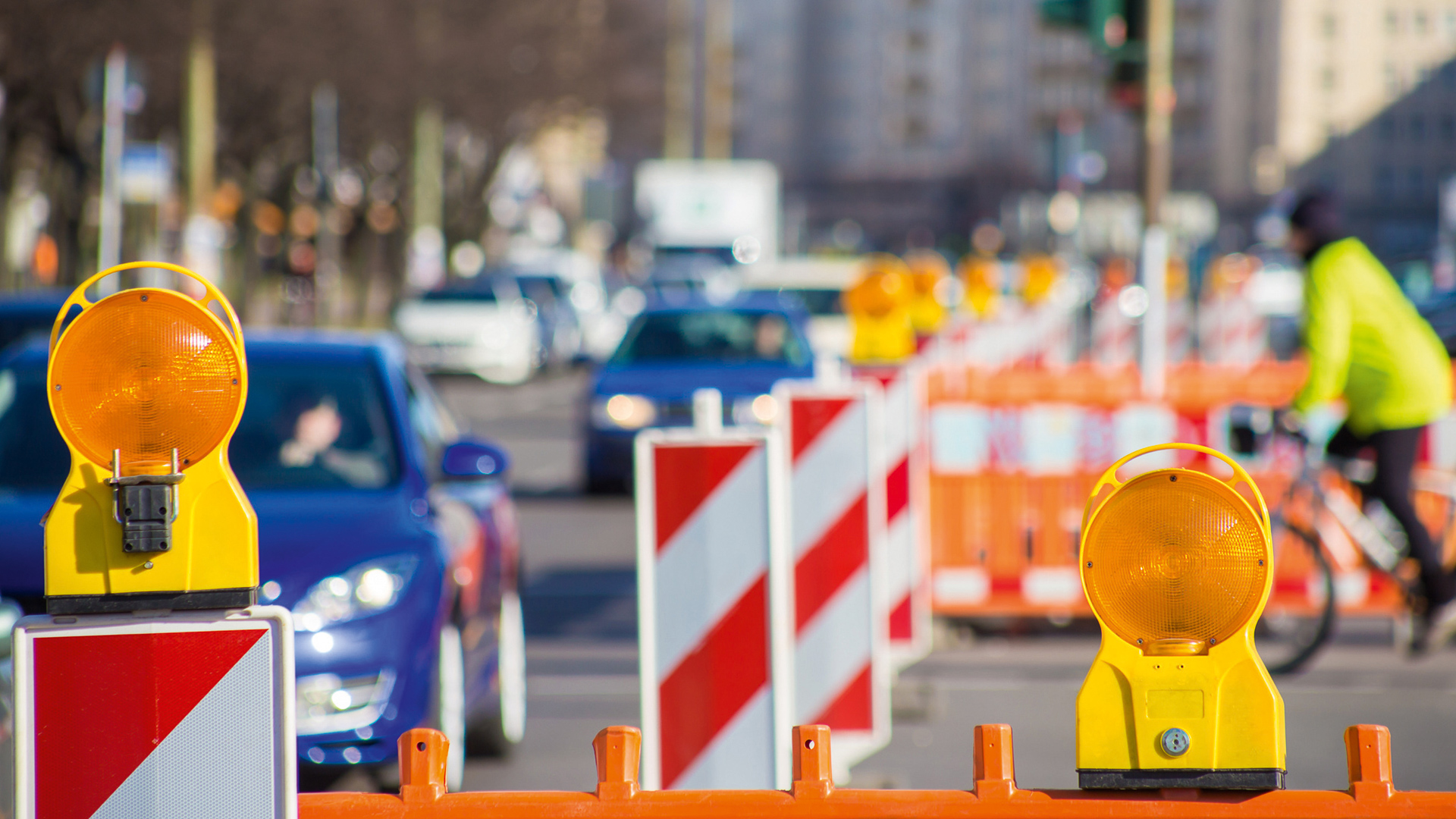

ORALITE® 5830 High Intensity Construction Grade is a highly reflective and flexible reflective film of class RA2 (design B). This product is specifically designed for Construction work zone traffic and guide signs, especially on polyolefin-based surfaces. The film offers an excellent resistance to corrosion and solvents, with a long durability of up to 5 years. Available in White, Yellow, and Red, additional colours are available upon request.
- High reflective performance: The RA2 (Type B) reflection class ensures an excellent visibility by day and night
- High flexibility: Adapts perfectly to polyolefin surfaces and enables easy processing
- Robust with high tack: Permanent adhesion with solvent-based polyacrylate, resistant to corrosion and solvents
- Long durability: Up to 5 years of durability with proper application
Available colours
3 Colours
010
White
020
Yellow
030
Red
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 5 | unprinted, with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | with professional bonding |
| Seawater resistance | Tested | adhered on aluminium | DIN 50021, after 100 h/ 23 °C no change |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 82 °C |
adhered on aluminium, central European normal climate |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent | with aggressive tack |
Processing
| Recommended printing procedure | Screen printing, Digital print with UV-curing inks |
|---|---|
| Suitable substrate | Polyolefin substrates |
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner | select.properties.product_structure.covering_material_group.covering_material.id.3683 |
|---|---|
| Front material |
Thickness front material: 0.21 mm Front material: Acrylic film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.21 mm | Average value, without protective liner and adhesive |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design B |
| Reflectivity classes: RA2 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1235 mm |
| 920 mm | |
| 610 mm | |
| Standard length | 50 m |
