ORALITE® 5800
High Intensity Grade

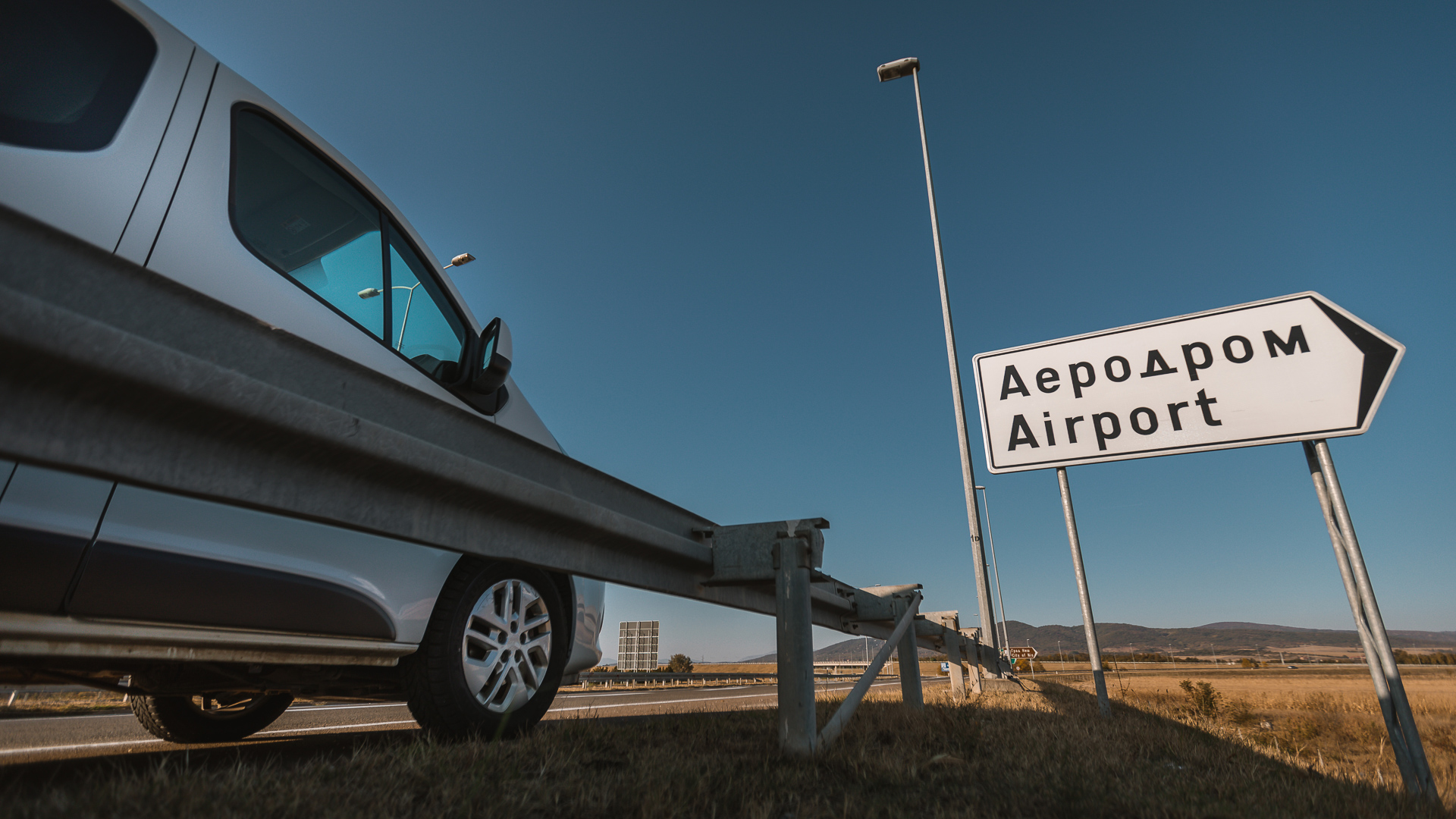

ORALITE® 5800 High Intensity Grade is a highly reflective film (class RA2, design B, thickness: 0.280 mm) that is characterised by its exceptional brightness and durability. With a honeycomb structure, it ensures excellent visibility by day and night. The film is specially designed for use on traffic signs, guidance systems, warning markings and information signs and offers a durability of up to 10 years.
- Reflective film (class RA2, design B, thickness: 0.280 mm): High retroreflection for excellent visibility in the dark
- Honeycomb structure: Optimises retroreflection and ensures clear and visible marking
- Range of colours: Available in 7 colours and a wide range of design options
- Durability of up to 10 years: For long-lasting applications that remain reliable even under extreme conditions
- Excellent corrosion and solvent resistance: Resistant to chemicals and environmental influences
Available colours
7 Colours
010
White
020
Yellow
035
Orange
030
Red
060
Green
050
Blue
080
Brown
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 10 | unprinted, with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -56 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Screen printing, UV printing, Eco-solvent printing |
|---|---|
| Suitable substrate | Aluminium, Galvanised sheet steel, Metals |
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner | One-sided silicon-coated PP film |
|---|---|
| Front material | Acrylic film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.28 mm | Average value, without protective paper |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design B |
| Reflectivity classes: RA2 |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1235 mm |
| 610 mm | |
| Standard length | 50 m |
