ORAJET® 3851
Digital Printing Film

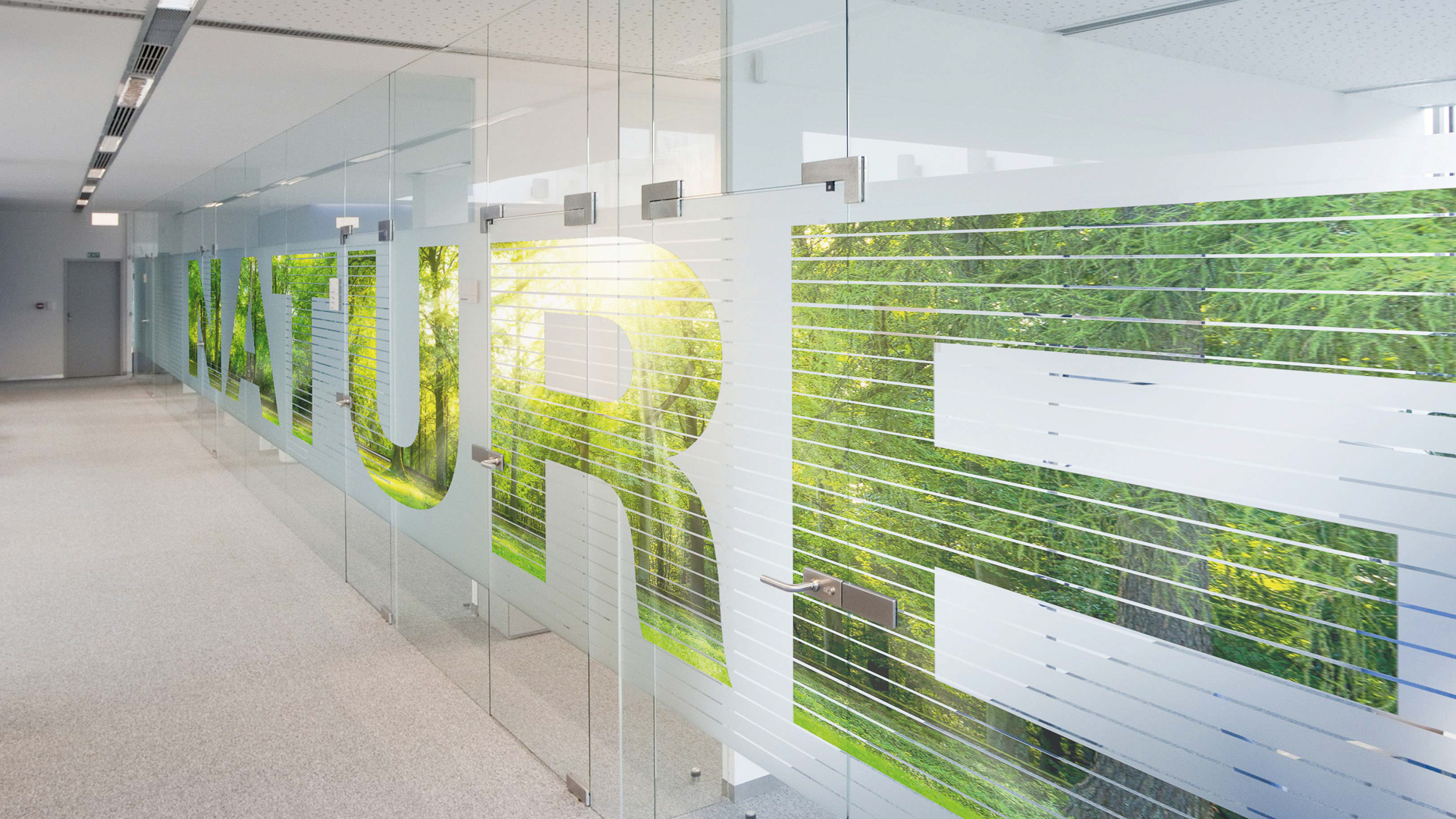

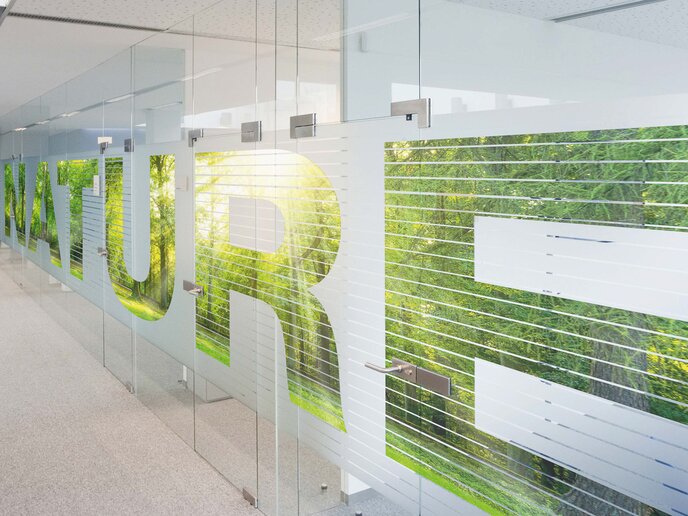

Special PVC film with polymer plasticisers for glass decoration. The reduced surface gloss of the film prevents unwanted reflections. Available in silver grey (fine structure). *on request

Product information

Technical properties

Resistance

Durability Durability :with vertical outdoor exposure, normal Central European climate
7 Year(s) Applies for vertical outdoor weathering, central European normal climate; unprinted
Shelf Life 2 Year(s) in original packaging, at 20 °C and 50% relative humidity
Maximum shrinkage Maximum shrinkage along 0.2 mm
Maximum shrinkage across 0 mm 		adhered on glass | FINAT TM 14, average value
Elongation at break Minimum elongation at break along 130 %
Minimum elongation at break across 150 % 		DIN EN ISO 527, average value
Tensile strength Minimum tensile strength along: 19 N/mm²
Minimum tensile strength across: 19 N/mm² 		DIN EN ISO 527
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 60 °C 		Short-term exposure up to 80 °C

Adhesive properties

Adhesive power 18 N/25 mm after 24h on glass | Average value, FINAT TM 1
16 N/25 mm after 24h on acrylic glass | Average value, FINAT TM 1
Adhesive Permanent
Processing
Recommended printing procedure Inkjet printing with solvent-based inks, Inkjet printing with UV inks
Application temperature Minimum temperature 10 °C
Product Construction
Liner Liner: PE-coated paper on both sides, siliconised on one side
Surface weight: 143 g/m²
Front material Thickness front material: 0.08 mm
Front material: Special PVC film

General

Thickness 0.08 mm without protective liner and adhesive, average force
Dimensions
Format Roll
Standard width 1370 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2026-02-04.
