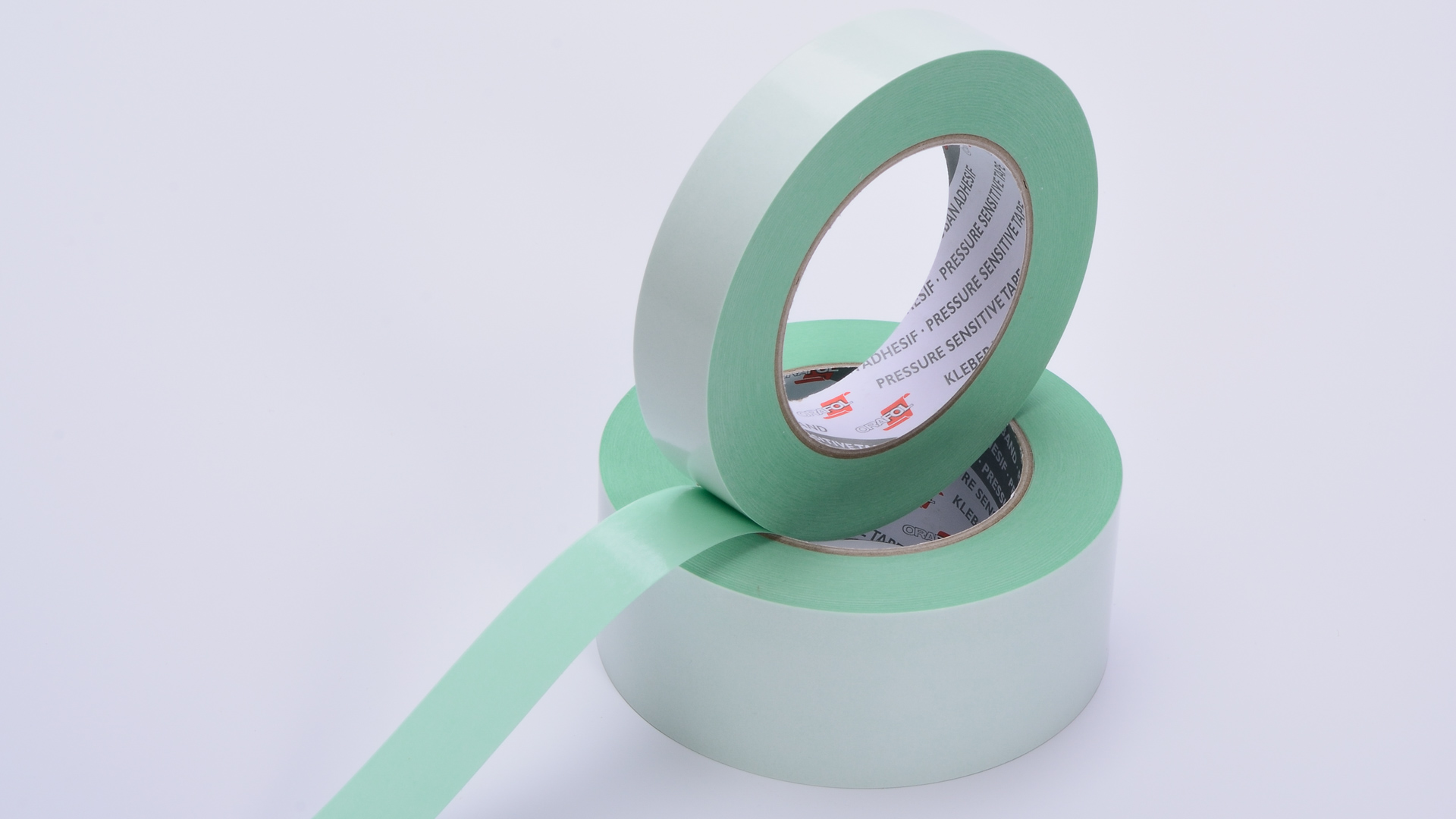

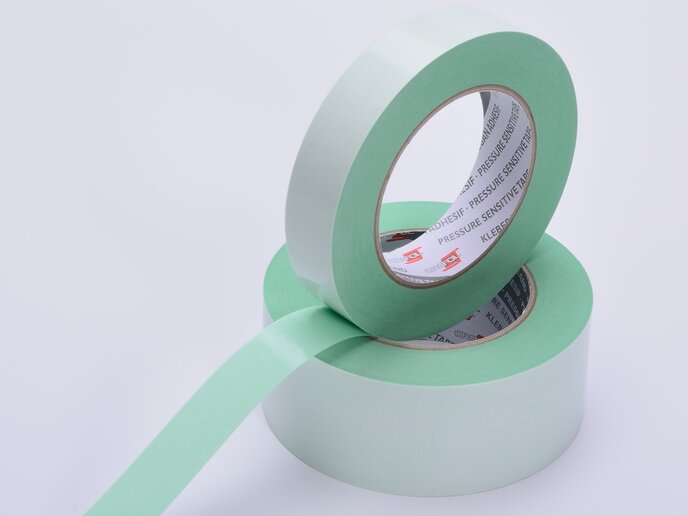

ORAFIX® 1293

The double-sided adhesive tape consists of a water-dispersible tissue paper that is coated on both sides with a modified, water-soluble acrylate adhesive. The adhesive is characterised by very good initial adhesion and a very good thermal resistance. The used adhesive RA2 complies with the Code of Federal Regulations, Food and Drugs (FDA), 21 CFR Ch. I, § 175.105.

Product information

Technical properties

Resistance

Shelf Life 1 Year(s) in original packaging at 20 °C and 50 % humidity
Temperature resistance Maximum temperature 200 °C 1 h, central European normal climate | short-term up to 230 °C

Adhesive properties

Adhesive power 6 N/25 mm after 1 min, on copy paper | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
7 N/25 mm after 20 min, on copy paper | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 10 Average value, FINAT TM 9
Maximum shear strength 1.5 Hour(s) from 23 °C to 230 °C | S.A.F.T. Test
Processing
Repulpability Repulpable to TAPPI UM 213
Product Construction

General

Thickness 0.06 mm Average value, adhesive + carrier
Adhesive covered side Water-soluble modified acrylate
Adhesive open side Water-soluble modified acrylate
Carrier Colour carrier: White
Carrier: Silk paper
translucent, repulpable
Dimensions
Format Roll, Cut
Cutting roll width 19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
Standard length 50 m

Downloads

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
