ORABOND® 1836

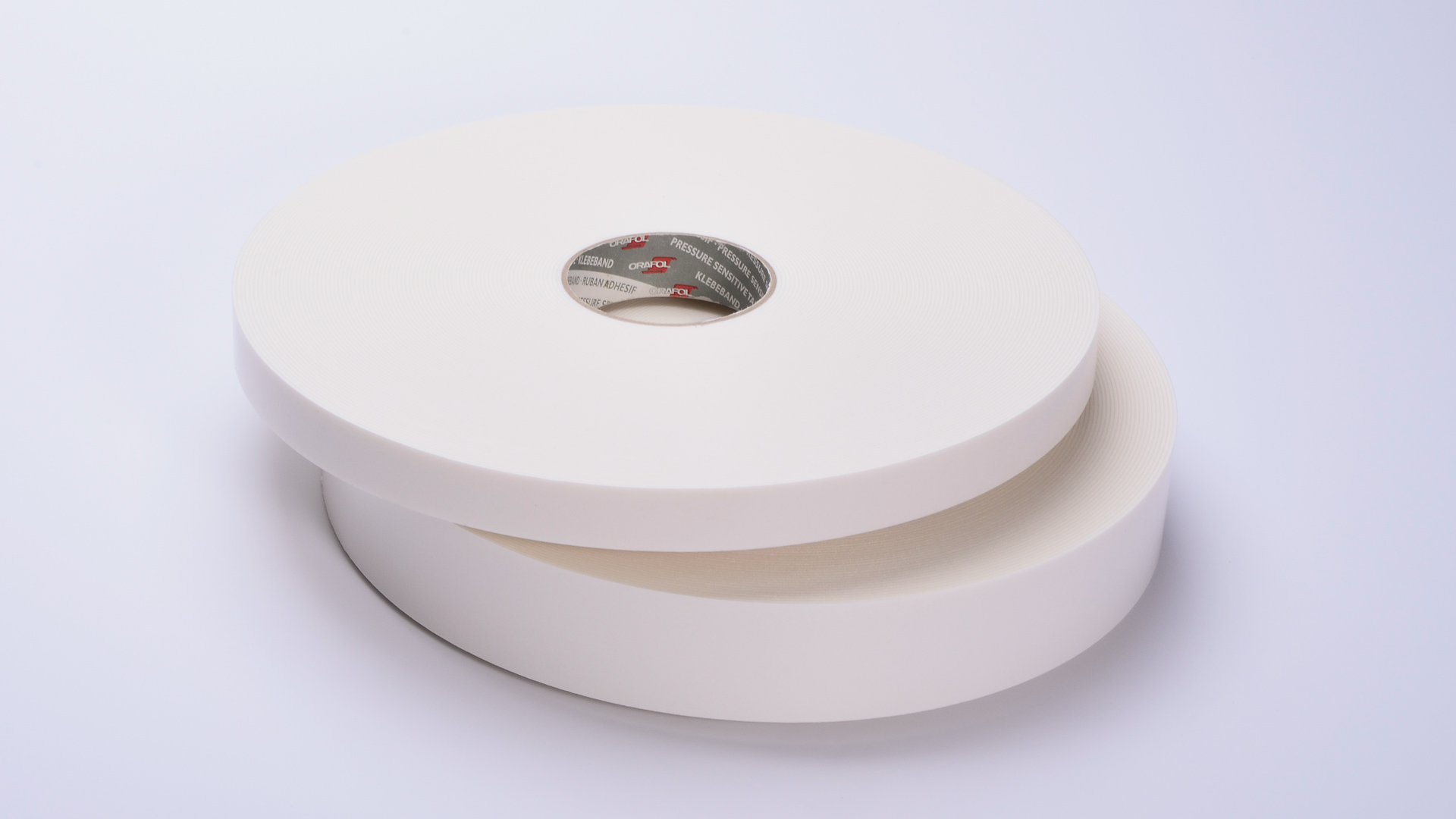

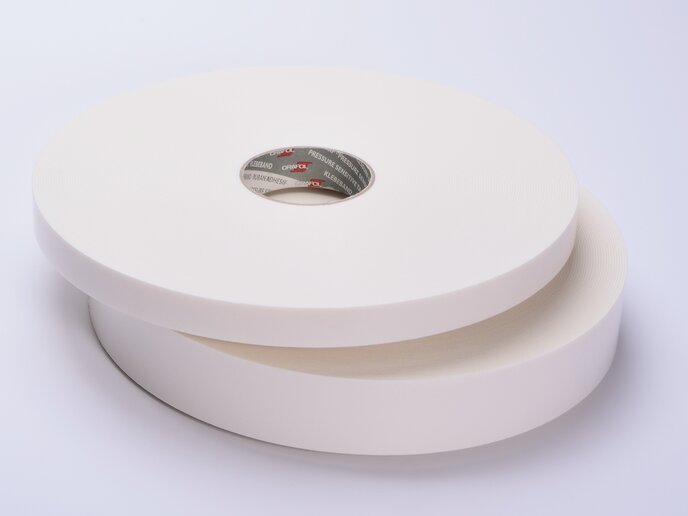

The double-sided adhesive tape consists of a white closed-cell polyethylene foam that is coated on the both sides with a rubber adhesive. The adhesive is characterised by amongst other things good adhesion on apolar substrates. The double-sided mounting tape is covered with white silicone paper.

Product information

Technical properties

Resistance

Shelf Life 1 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: 30 °C
Maximum temperature: 70 °C 		1 h, central European normal climate

Adhesive properties

Adhesive power 18 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm on stainless steel, after 20 min | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm after 24 h, on stainless steel | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Maximum shear strength 300 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Adhesive covered side Synthetic rubber
Adhesive open side Synthetic rubber
Carrier Colour carrier: White
Carrier: Polyethylene foam
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1250 mm
Standard length 50 m
