Technical data sheet - English (EN)
PDF, 88.07kB, 1 Page

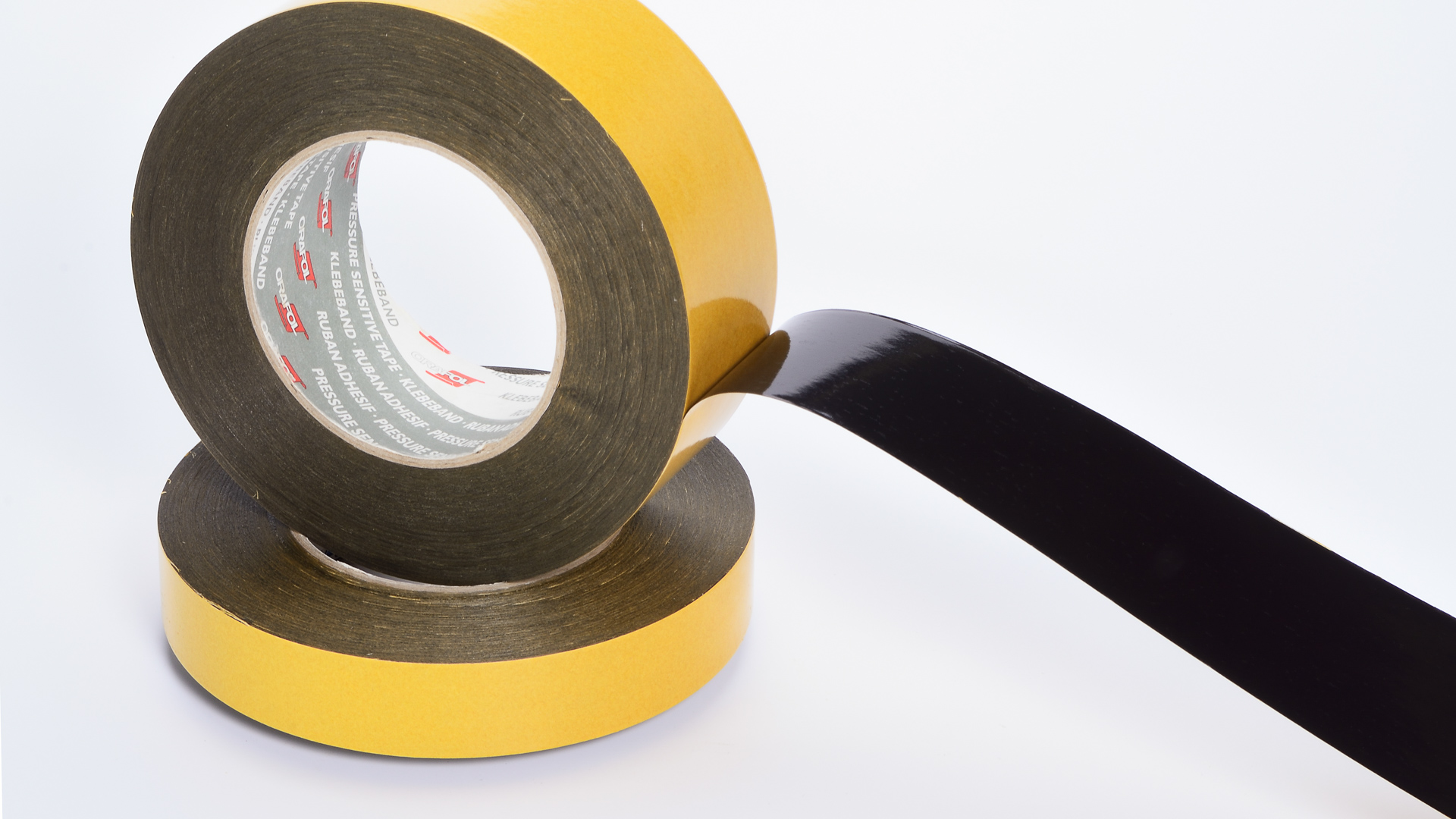

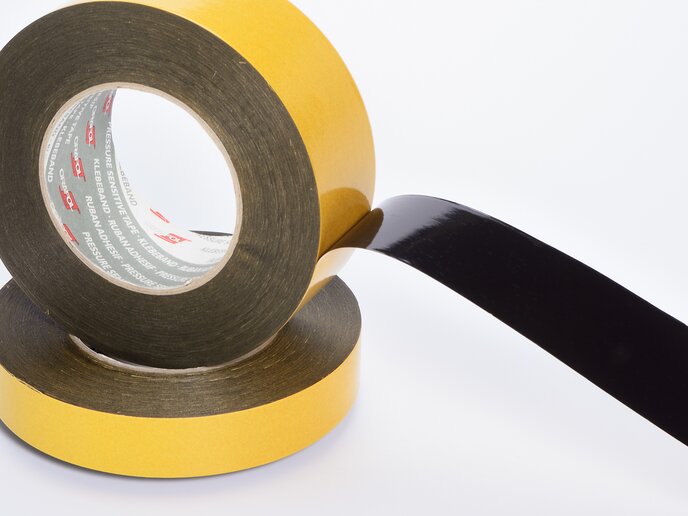

The double-sided adhesive tape consists of a black polyester film carrier that is coated on both sides with a modified acrylate adhesive which shows a very good resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The high-shear-resistant adhesive is characterised by an excellent permanent adhesive strength on metal, painted and high-energy plastic surfaces and a good permanent adhesive strength on low-energy surfaces. The polyester adhesive tape is covered with a siliconised paper on both sides.
Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
---|---|---|
Resistance to solvents and chemicals | Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | |
UV resistance | Recommended | |
Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 160 °C |
1 h, central European normal climate | short-term up to +180 °C |
Adhesive power | 18 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
---|---|---|
23 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
25 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
Initial adhesion (loop tack) | 28 N/25 mm | FINAT TM 9, average value |
Maximum shear strength | 600 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
10 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
Application temperature | Minimum temperature 15 °C |
---|---|
Substrate material /substrate | Highly energetic plastics, Metal, Paint |
Adhesive covered side | Modified acrylate |
---|---|
Adhesive open side | Modified acrylate |
Carrier | Black |
Format | Roll, Cut | |
---|---|---|
Cutting roll width | 9 mm | |
12 mm | ||
15 mm | ||
19 mm | ||
25 mm | ||
30 mm | ||
38 mm | ||
50 mm | ||
60 mm | ||
75 mm | ||
100 mm | ||
Standard width | 1000 mm | |
Standard length | 50 m |
