Technical data sheet - English (EN)
PDF, 156.08kB, 3 Pages
ORALITE® VC 104+
Flex Grade Segmented / Continuous

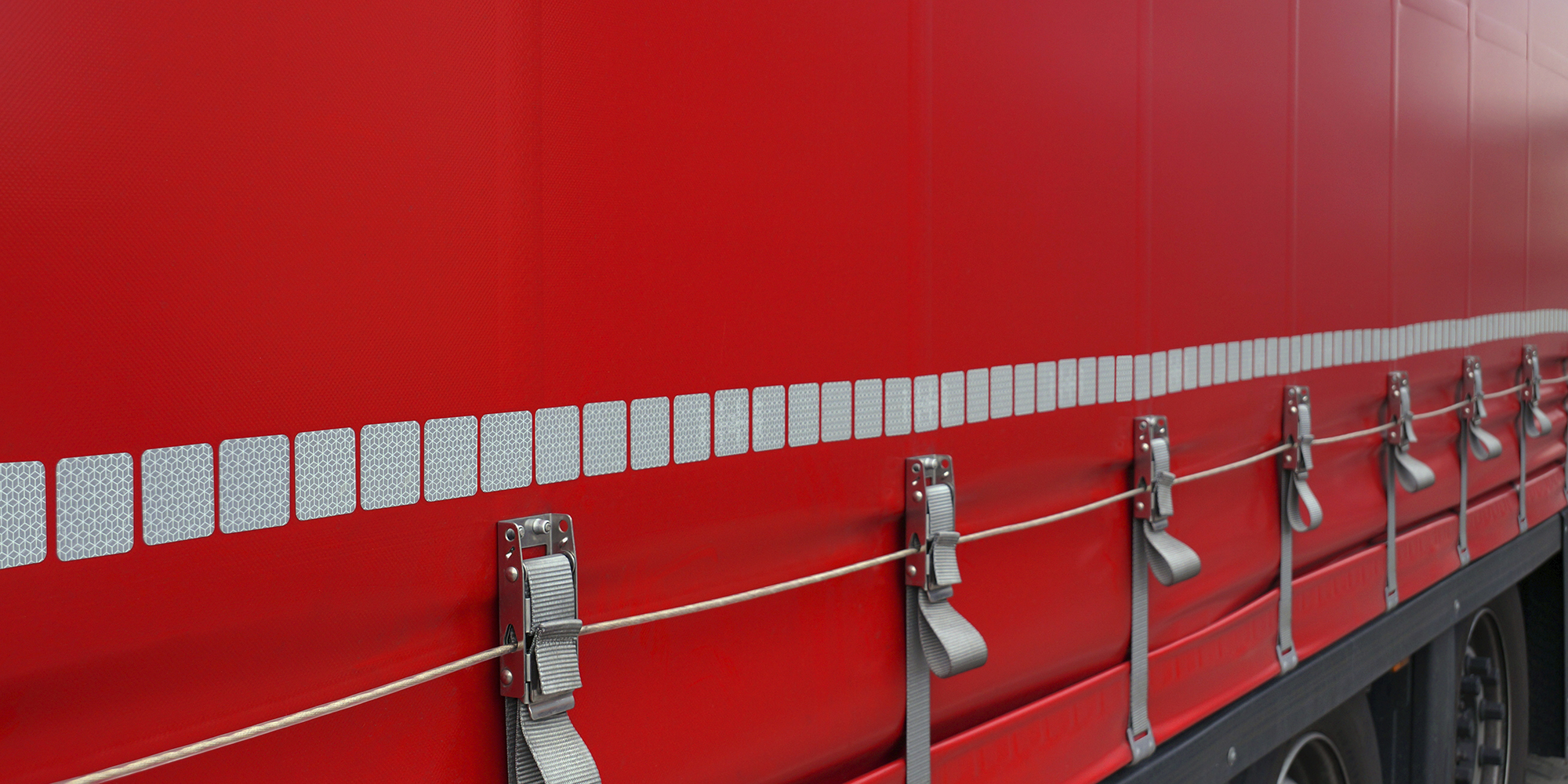

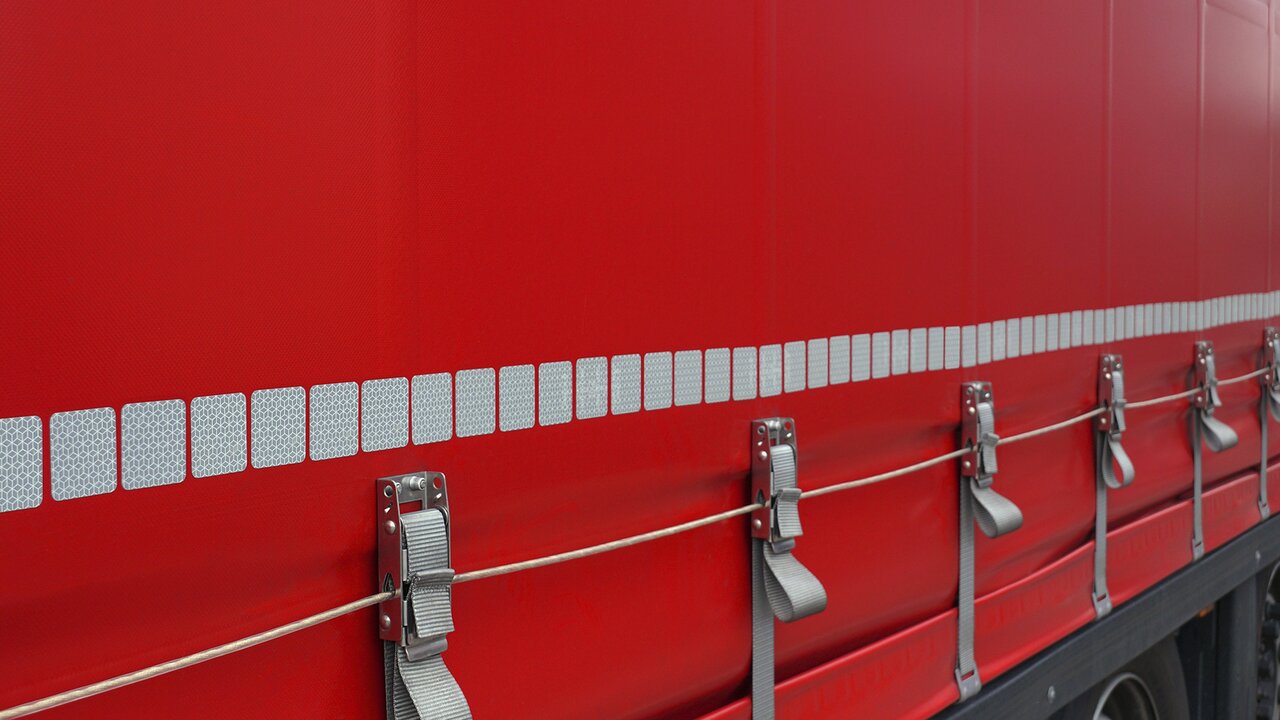

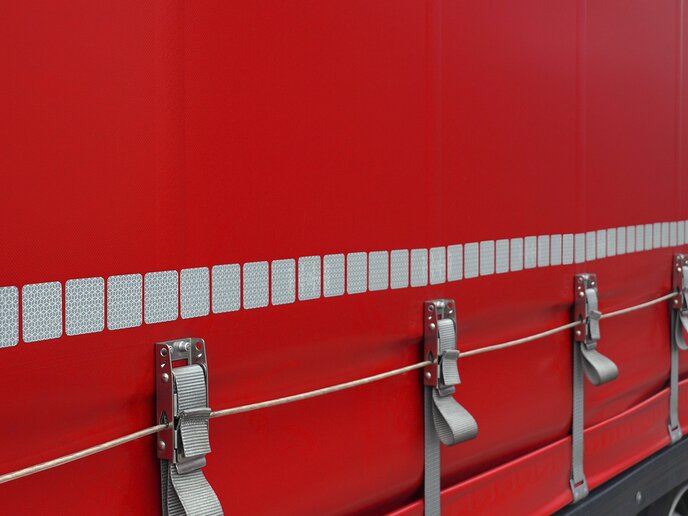

ORALITE® VC 104+ Flex Grade Segmented/Continuous is a durable, weather-resistant reflective film which was developed for application as safety marking tape for lorries and trailers with tarpaulins. This reflective film enables an increased adaptation on the substrate material.
Available colours
3 Colours
012
Red
015
White
065
Yellow
Product information
Technical properties
Resistance
| Durability | 3 Year(s) | |
|---|---|---|
| Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity | Storing must be effected in a clean and dry location without direct sunlight. |
| Temperature resistance |
Minimum temperature: -34 °C Maximum temperature: 90 °C |
The actual application temperature depends on various factors, including the substrates to be bonded, the ambient conditions, the load and the type of application. | The data are based on laboratory tests and were determined without load. |
Processing
| Suitable substrate | PVC-coated polyester fabric | The adhesive power depends to a large extent on the surface of the cover. |
|---|
Product Construction
General
| Thickness | 0.25 mm |
|---|
| Front material | Special Polyester film |
|---|
Reflective Characteristics
| Reflective Technology | Prismatic |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 50 mm |
| Standard length | 50 m |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 318.35kB, 10 Pages
Product information - English (EN)
PDF, 141.18kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
