ORALITE® 5951
High Intensity Prismatic Container Marking Grade

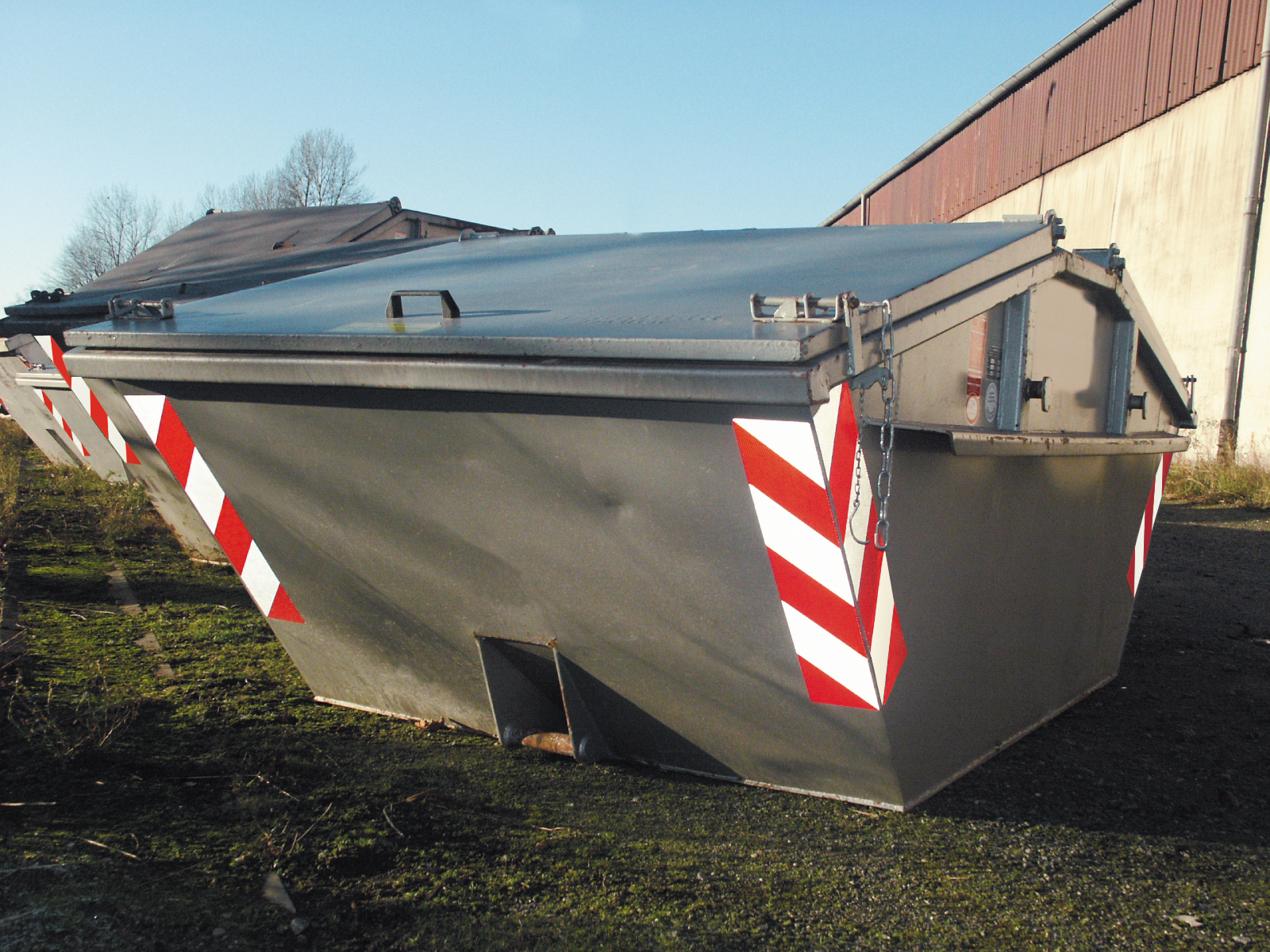

ORALITE® reflective films of the series 5951 High Intensity Prismatic Container Marking Grade are flexible, highly reflective, weatherproof, self-adhesive films. They are characterised by corrosion and solvent resistance. The product was developed specifically for containers and swap bodies on public transport. The film is equipped with an adhesive which ensures permanent adhesion to painted surfaces. When used in accordance with the recommended processing notes the film remains fully functioning for a period of up to five years. The reflection system consists of microprisms which thanks to their special design and by utilising total reflection achieve high reflection values. The specific form of the cells indicates the running direction of the roll material and enables the film manufacturer to be identified.

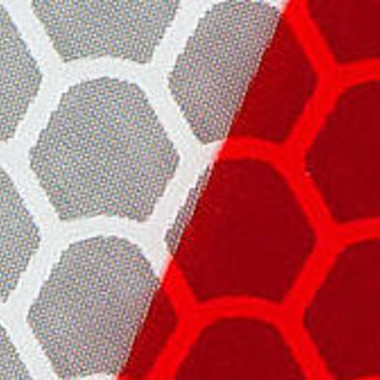

Available colours
1 Colours
010
White / Red
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 5 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 82 °C |
adhered on aluminium |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Suitable substrate | painted metal surfaces, Metals |
|---|
Product Construction
| Liner | One-sided silicon-coated PP film |
|---|---|
| Front material | Acrylic film |
| Adhesive |
Colour adhesive: Transparent Adhesive: Solvent-polyacrylate |
General
| Thickness | 0.4 mm | Average value, without protective liner and adhesive |
|---|
Reflective Characteristics
| Reflective Technology | Prismatic |
|---|---|
| Reflectivity Compliance | Reflective film structure: Aufbau C (mikroprismatisch) |
| Reflectivity classes: RA2 |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 176.27kB, 6 Pages
Product information - English (EN)
PDF, 200.38kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2026-02-04.
