Technical data sheet - English (EN)
PDF, 194.79kB, 3 Pages

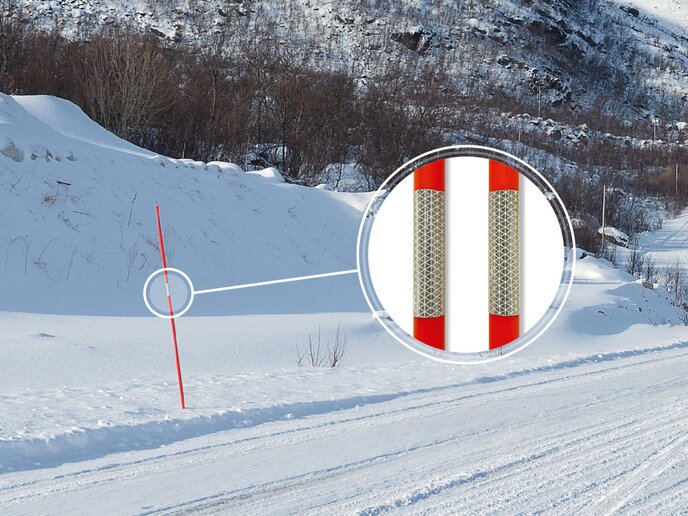

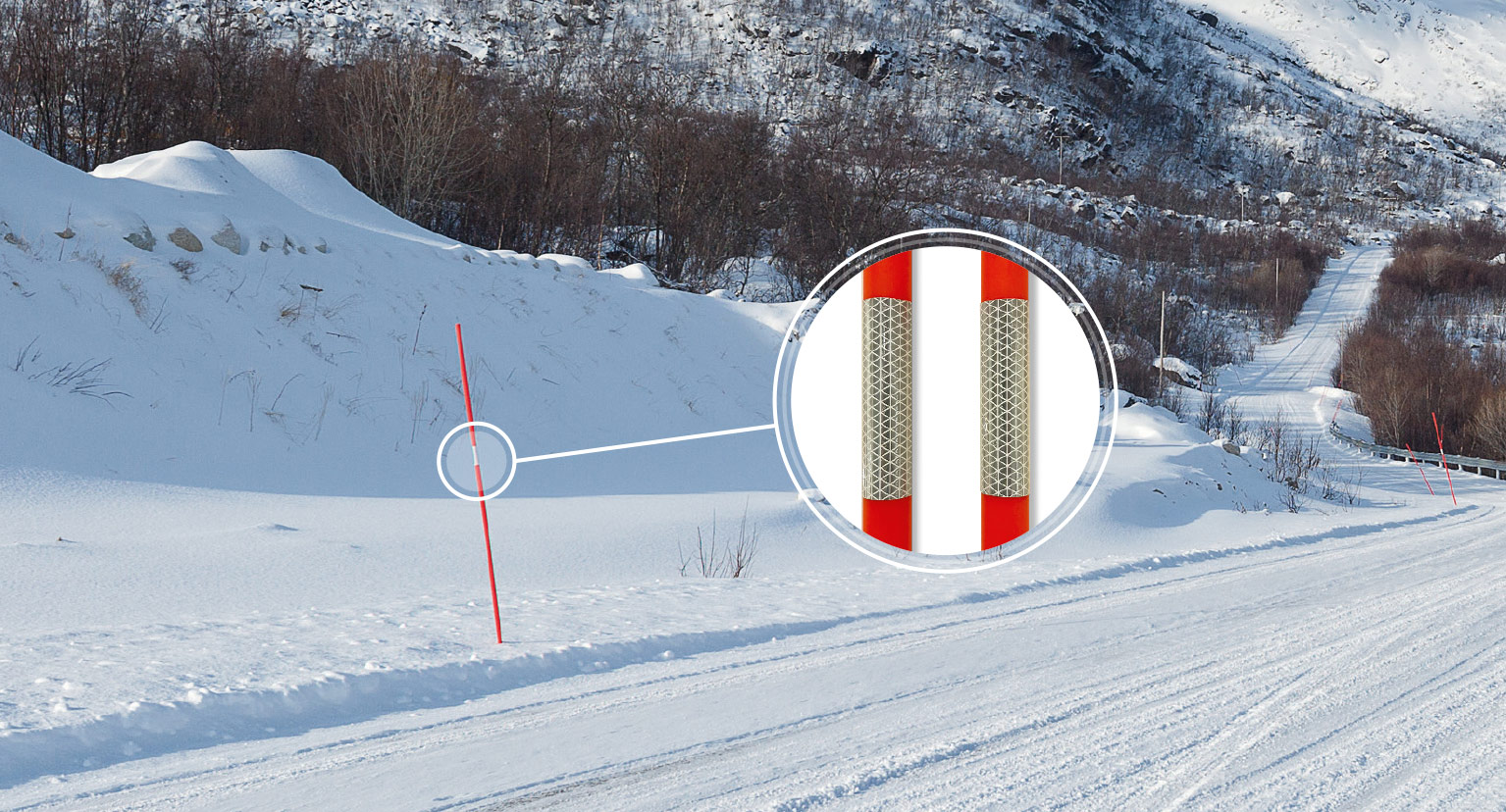

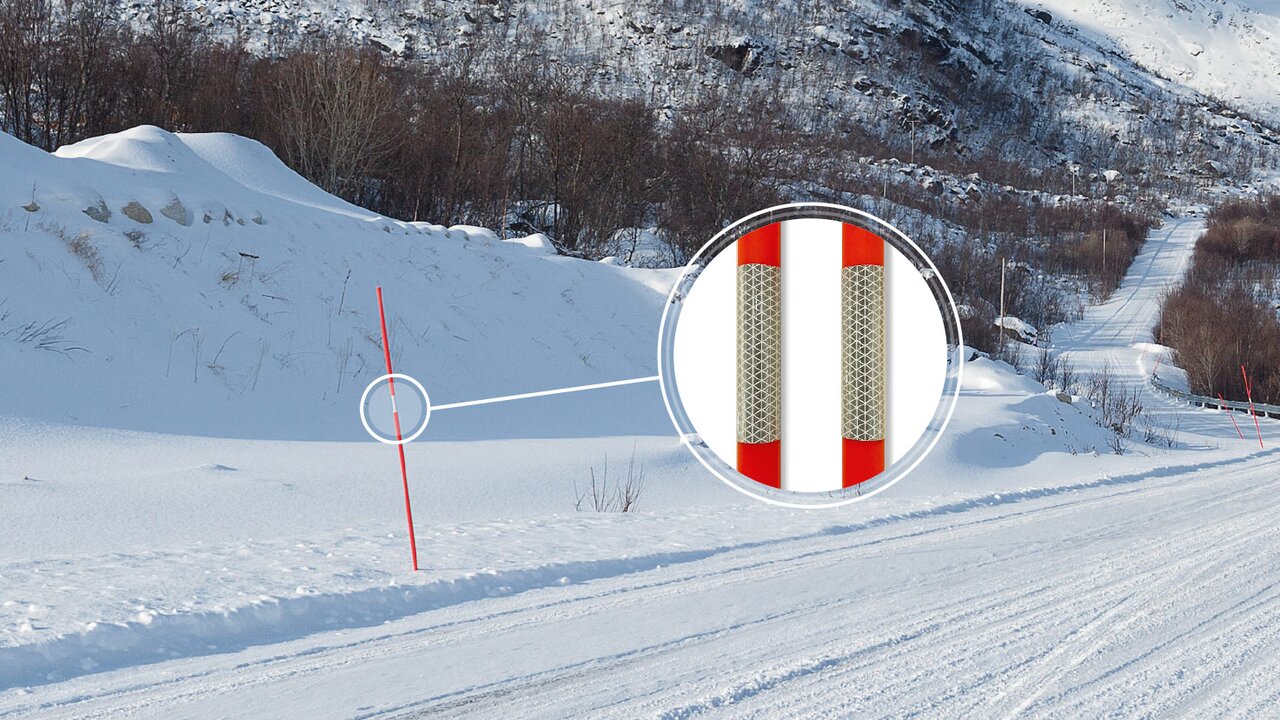

ORALITE® 5930MFlex Prismatic Construction Grade is a highly reflective film of class RA2 (design C). The extraordinary flexibility of the product allows conforming around edges and tolerates overlapped application with excellent adhesion to polyolefinic substrates. The film offers excellent resistance to corrosion and solvents and has a durability of up to 5 years. It is available in 7 colours.
Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
---|---|---|
Durability | 5 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
---|
Recommended printing procedure | Screen printing |
---|---|
Suitable substrate | Metals, Polyolefin substrates |
Application temperature | Minimum temperature 10 °C |
Liner | PE-coated paper on both sides, siliconised on one side |
---|---|
Front material | Polyurethane |
Adhesive | Solvent-polyacrylate |
Thickness | 0.36 mm | Average value, without protective paper |
---|
Reflective Technology | Prismatic |
---|---|
Reflectivity Compliance | Reflective film structure: Design C |
Reflectivity classes: RA2 |
Format | Roll |
---|---|
Standard width | 1235 mm |
610 mm | |
Standard length | 50 m |
PDF, 194.79kB, 3 Pages
PDF, 162.37kB, 2 Pages
PDF, 89.34kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
