ORALITE® 5831
High Intensity Construction Grade

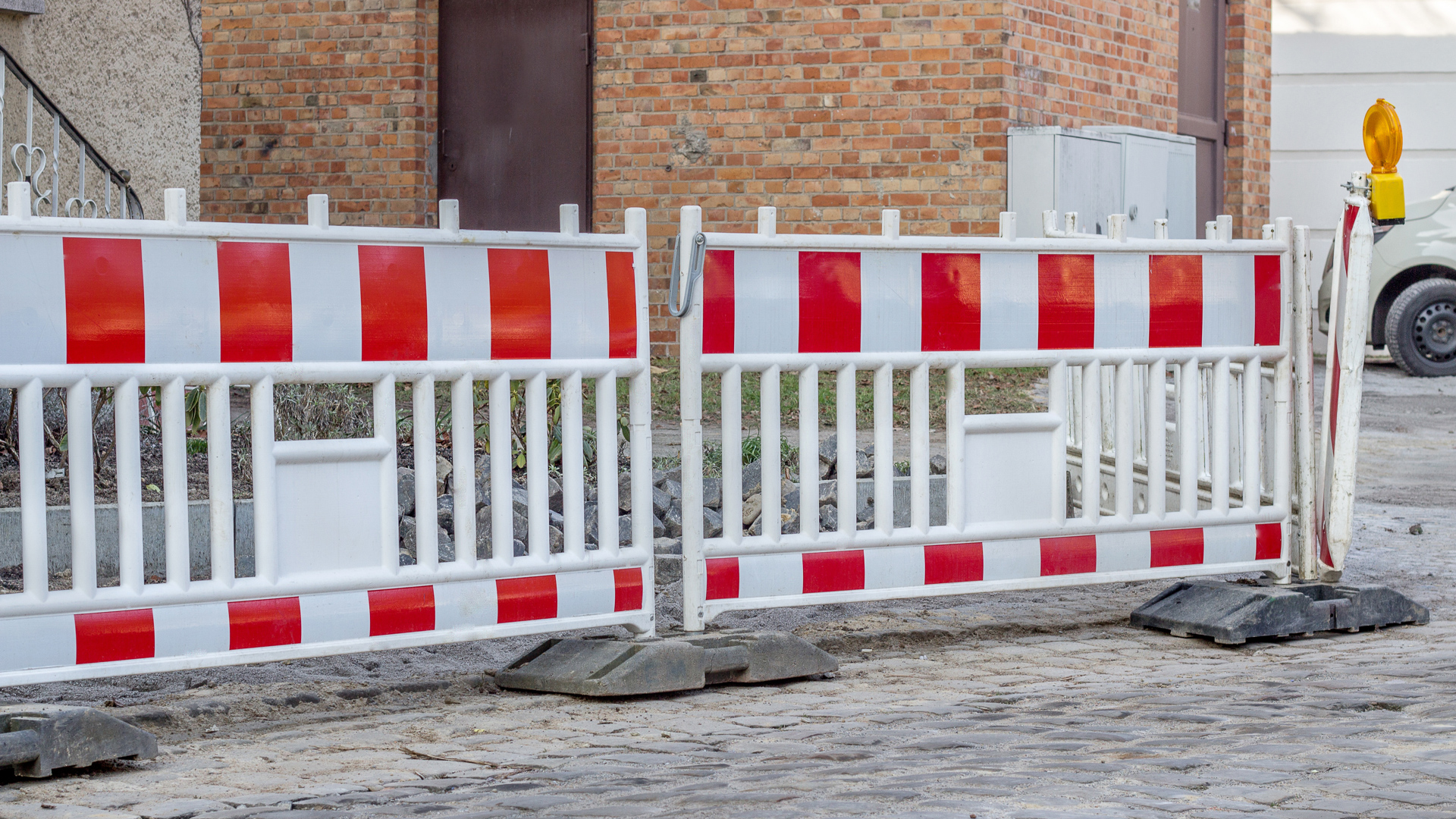

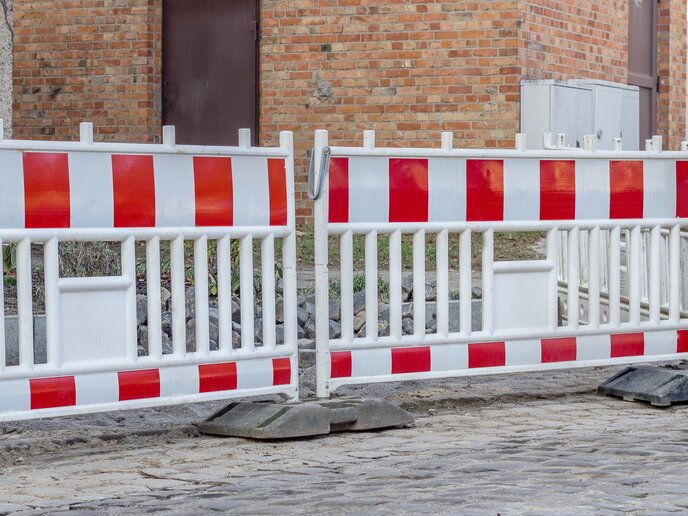

ORALITE® 5831 High Intensity Construction Grade is a reflective film (RA2, design B) that has been specially developed for marking construction sites. It is available in the colours white-red, yellow-red and yellow-black and is ideal for use on plastic surfaces. With a long-lasting and highly adhesive solvent polyacrylate adhesive, it ensures a permanently safe application and high visibility.
- Reflective film (RA2, design B): High retroreflection for optimum visibility at night and in poor lighting conditions
- Versatile colour selection: Available in White-Red, Yellow-Red and Yellow-Black, ideal for roadworks markings and increased road safety
- Durability of 5 years: Durable and resistant to weathering for longterm use
- High adhesive strength: The solvent polyacrylate adhesive ensures permanent adhesion, especially to plastic surfaces
Available colours
3 Colours
010
White / Red
020
Yellow / Red
020
Yellow / Black
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 5 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 1 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Mineral oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | with professional bonding |
| Seawater resistance | Tested | adhered on aluminium | DIN 50021, after 100 h/ 23 °C no change |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 82 °C |
adhered on aluminium, central European normal climate |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent | with aggressive tack |
Processing
| Suitable substrate | Polyolefin substrates |
|---|---|
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner | PE paper siliconised on one side |
|---|---|
| Front material | Acrylic film |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.21 mm | Average value, without protective liner |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Aufbau B (eingekapselte Glaskugeln) |
| Reflectivity classes: RA2 |
Dimensions
| Format | Roll, Sheets | |
|---|---|---|
| Standard width | 100 mm | |
| 250 mm | block print | |
| Standard length | 50 m | |
| Standard dimensions sheets | 1000 mm X 246 mm |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 162.37kB, 2 Pages
Product information - English (EN)
PDF, 200.86kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2026-02-04.
Catalogue
Traffic Signs & Construction Zones - English (EN)
PDF, 4.13MB, 40 Pages
