ORALITE® 5710
Engineer Grade Premium

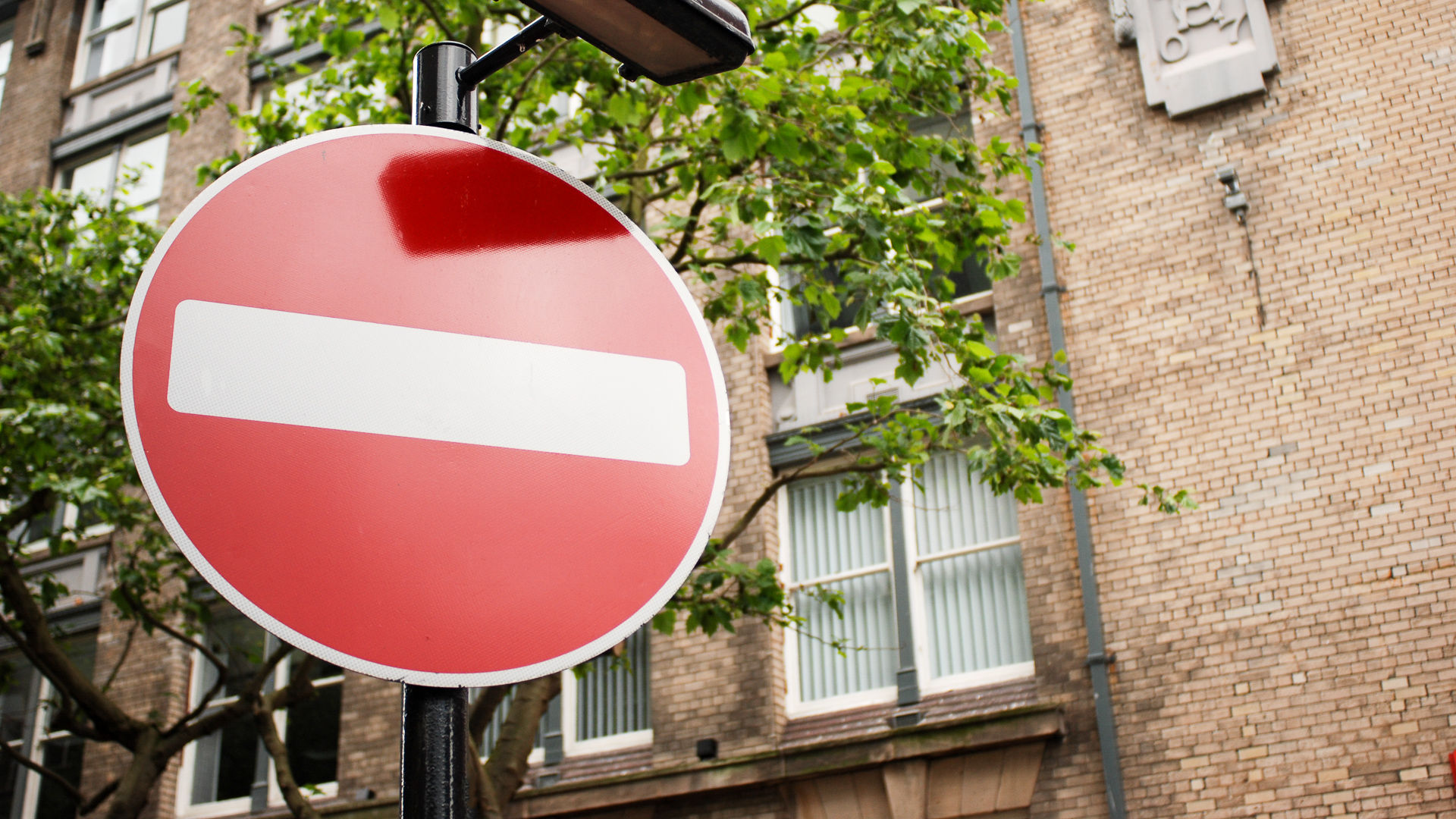

The ORALITE® 5710 Engineer Grade Premium is a highly reflective film designed for use in traffic control. With excellent corrosion and solvent resistance, it provides high visibility and a durability of up to 7 years with proper application. It is available in 7 colours and meets all relevant standards with CE certification.
- Certified quality: BASt approval, CE certificate, and annex, complies with EN 12899, DIN 67520, and DIN 6171
- Reflective film (RA1, design A, 0.130 mm): Provides excellent nighttime visibility and durability with low thickness
- Colour options: Available in 7 colours for various applications
- Long durability: Up to 7 years with proper processing, ideal for long-term applications
Available colours
7 Colours
010
White
020
Yellow
035
Orange
030
Red
060
Green
050
Blue
080
Brown
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium | 8 h in detergent solution (0.5 % household cleaner) at room temperature and 65 °C |
|---|---|---|
| Durability | 7 Year(s) | with professional processing, with vertical outdoor weathering, central European normal climate |
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Mineral oils | |
| Seawater resistance | Tested | adhered on aluminium | DIN 50021, after 100 h/ 23 °C no change |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 80 °C |
product.properties.technical_attributes.durability.temperature_resistance_block.temperature_resistance_condition.id.344.7328a8e2 |
Adhesive properties
| Adhesive power | 15 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Recommended printing procedure | Screen printing, Eco-solvent printing, UV printing |
|---|---|
| Suitable substrate | Aluminium, Galvanised sheet steel, Metals |
| Application temperature | Minimum temperature 10 °C |
Product Construction
| Liner |
Liner: Silicone cardboard PE coated on both sides Surface weight: 145 g/m² |
|---|---|
| Front material |
Thickness front material: 0.13 mm Front material: Alkyd resin |
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.13 mm | Average value, without protective liner and adhesive |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|---|
| Reflectivity Compliance | Reflective film structure: Design A (embedded glass beads) |
| Reflectivity classes: RA1 |
Dimensions
| Format | Roll | |
|---|---|---|
| Standard width | 1520 mm | only available in white |
| 1235 mm | ||
| 920 mm | ||
| 760 mm | ||
| 610 mm | ||
| Standard length | 50 m |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 182.78kB, 6 Pages
Product information - English (EN)
PDF, 199.98kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2026-02-04.
Certificates
CE-Certificate - English (EN)
PDF, 217.42kB, 1 Page
CPR - English (EN)
PDF, 807.43kB, 2 Pages
Attachment - English (EN)
PDF, 2.28MB, 4 Pages
DoP - English (EN)
PDF, 790.16kB, 5 Pages
DoP - English (EN)
PDF, 786.52kB, 4 Pages
Catalogue
Traffic Signs & Construction Zones - English (EN)
PDF, 4.13MB, 40 Pages
