ORALITE® 5431
Construction Grade

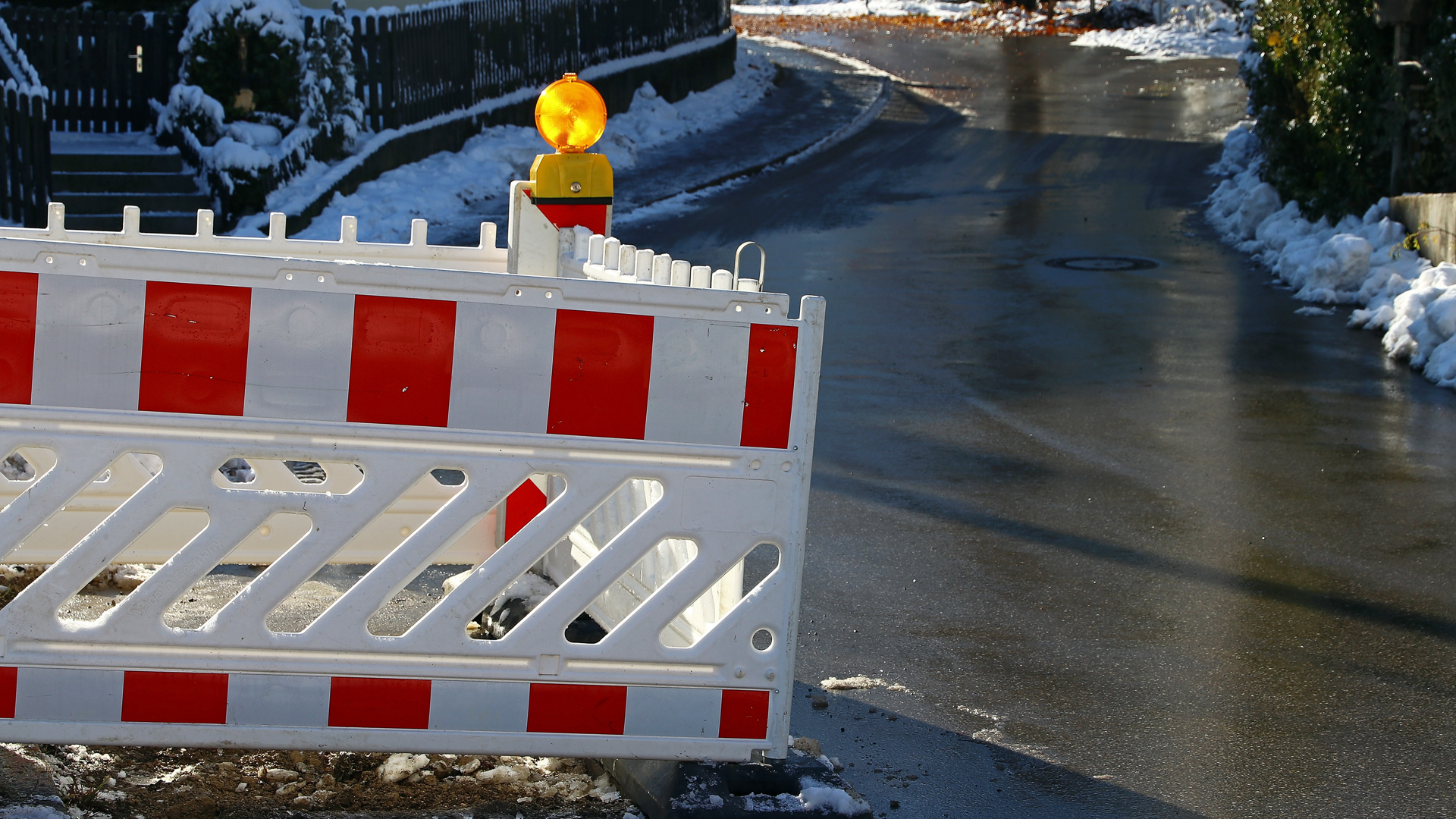

ORALITE® 5431 Construction Grade has been specially developed for construction site safety and offers reliable retroreflective marking. The reflective film (class: RA1, design A, thickness: 0.09 mm) is available in the colour combinations white-red, yellow-black and yellow-red and is ideal for temporary markings on a wide variety of substrates, including polyolefin materials. It is characterised by very good printability and impresses with a durability of up to 4 years - long-lasting and high-performance.
  • Robust and smooth surface: Offers high scratch and impact resistance as well as very good printability
  • Flexibility in processing: Available as a roll or cut to size for individual requirements
  • Versatile colour selection: Available in White-Red, Yellow-Black and Yellow-Red for different applications
  • High adhesive strength: Solvent polyacrylate pressure-sensitive adhesive with strong tack, ideal for polyolefin substrates
  • Durability: Up to 4 years durability for reliable construction site protection

Product information

Technical properties

Resistance

Durability 4 Year(s) with professional processing, with vertical outdoor weathering, central European normal climate
Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -56 °C
Maximum temperature: 82 °C 		adhered on aluminium

Adhesive properties

Adhesive power 15 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1
Adhesive Permanent with aggressive tack
Processing
Recommended printing procedure Inkjet printing with solvent inks
Suitable substrate Polyolefin substrates
Application temperature Minimum temperature 10 °C
Product Construction
Liner Liner: Silicone cardboard PE coated on both sides
Surface weight: 145 g/m²
Adhesive Solvent-polyacrylate

General

Thickness 0.09 mm Average value, without protective liner and adhesive
Reflective Characteristics
Reflective Technology Glass bead
Reflectivity Compliance Reflective film structure: Design A
Reflectivity classes: RA1
Dimensions
Format Roll
Standard width 246 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
