ORALITE® 3000

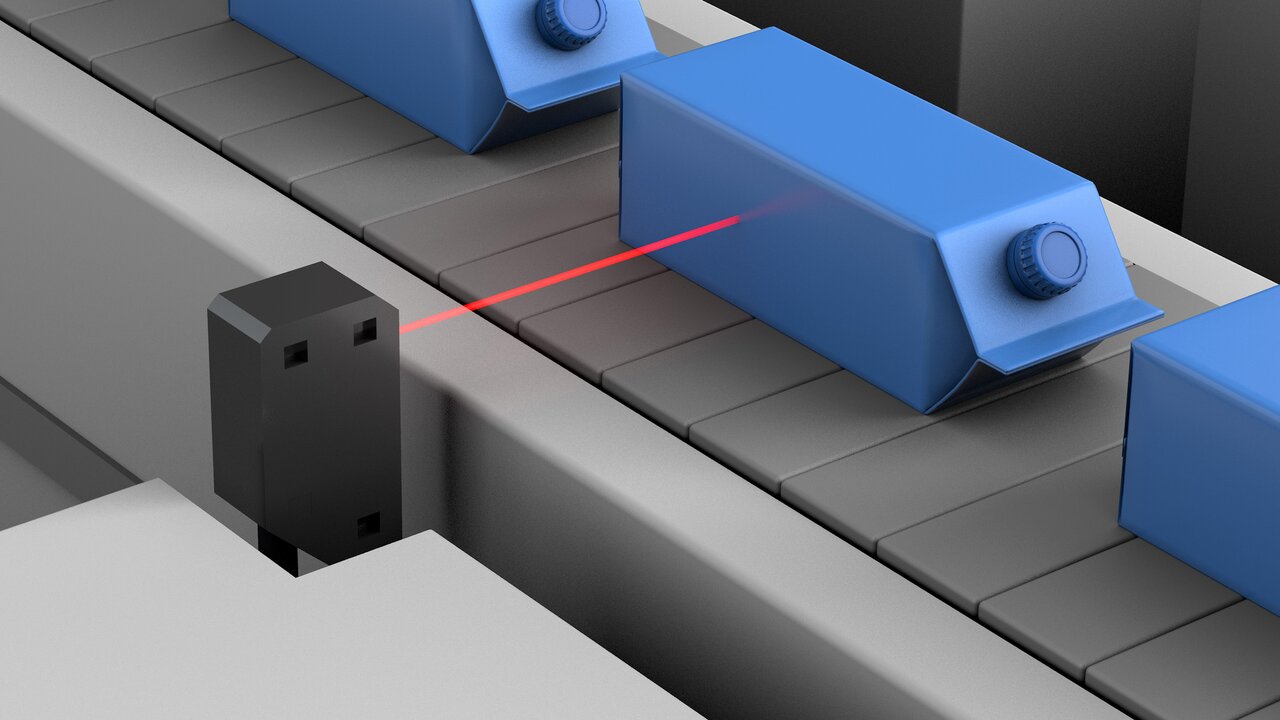

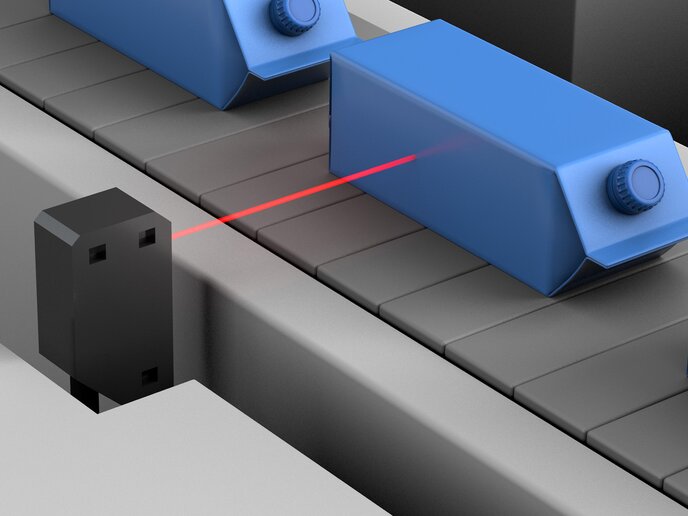

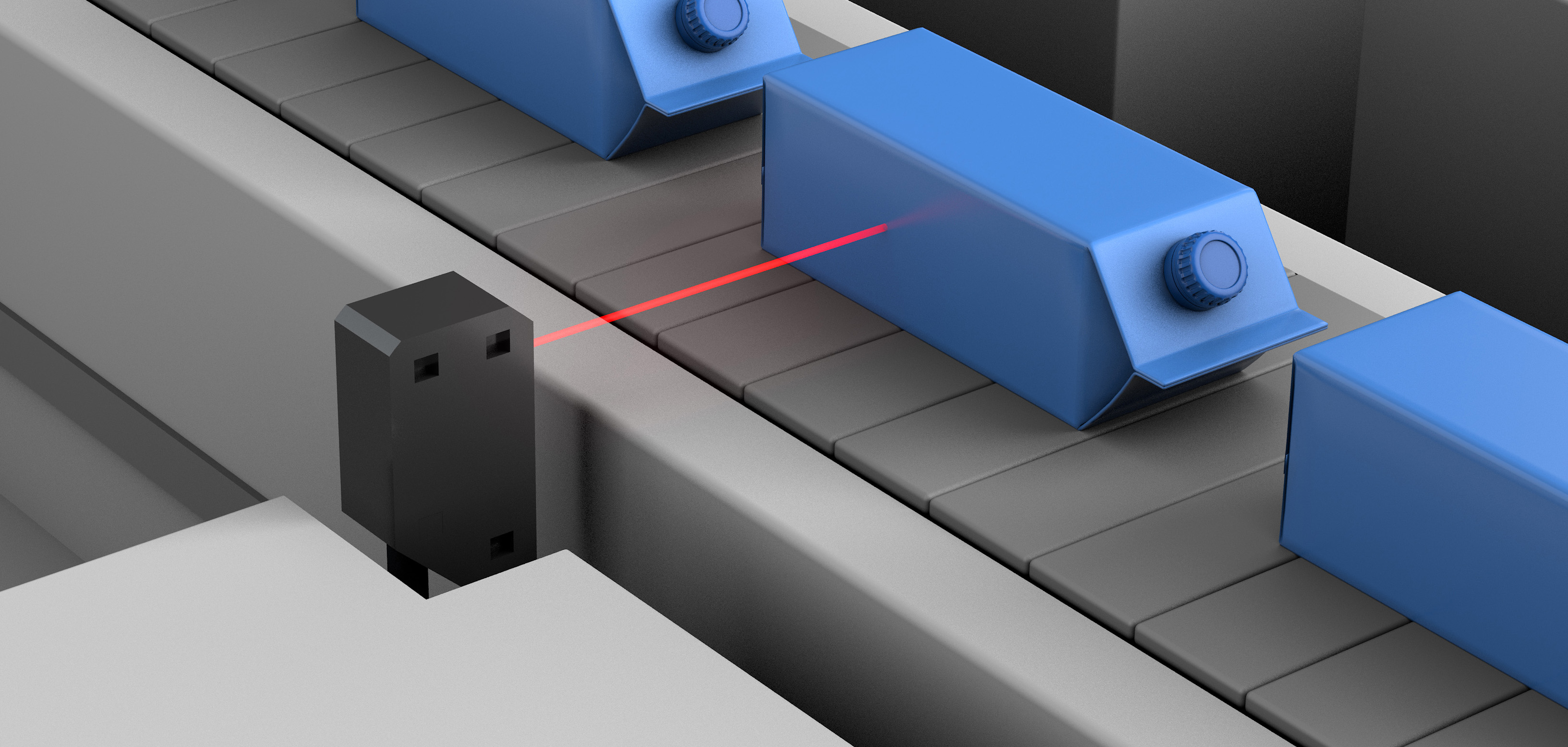

Super Lens Photoelectric Sheeting
ORALITE® 3000 is designed as a film which generates the retroreflection with embedded, exposed glass spheres. The product is equipped with a pressure-activated adhesive which can be removed from many surfaces under the influence of heat.
Available colours
1 Colors
015
Silver
Product information
Technical properties
Resistance
| Durability | Durability (general note):All rolls as well as residues must be kept tightly wound in the original packaging. | |
|---|---|---|
| 1 Year(s) | Store the film at a clean and dry location without direct sunlight. Storage should take place at 20 °C and 50 % relative humidity. | |
| Temperature resistance | Maximum temperature 95 °C | Use in high-temperature environments (over 95°C) over a longer period of time can permanently reduce the back radiation. |
Adhesive properties
| Adhesive | Removable | under the influence of heat |
|---|
Processing
| Application temperature |
Minimum temperature: 15 °C Maximum temperature: 38 °C |
|---|
Product Construction
General
| Thickness | 0.24 mm |
|---|
Reflective Characteristics
| Reflective Technology | Glass bead |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 762 mm |
| Standard length | 45.7 Minute(s) |
Downloads
Technical documents
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
