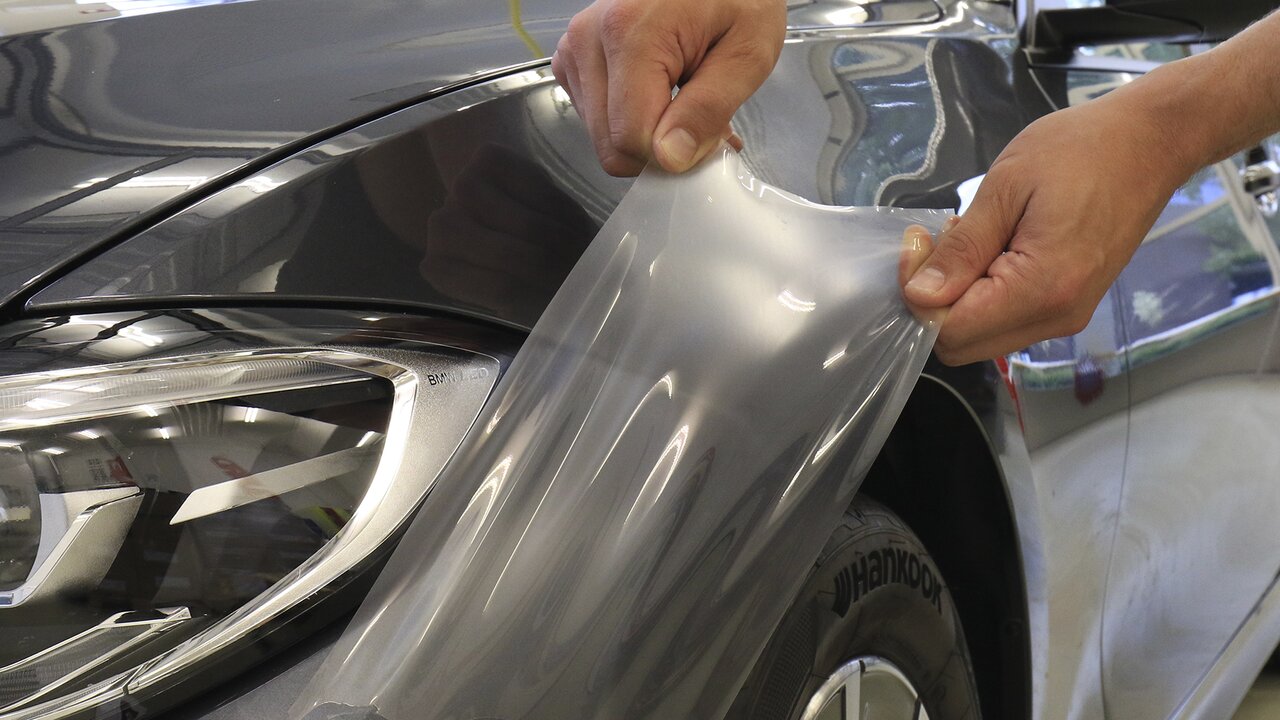

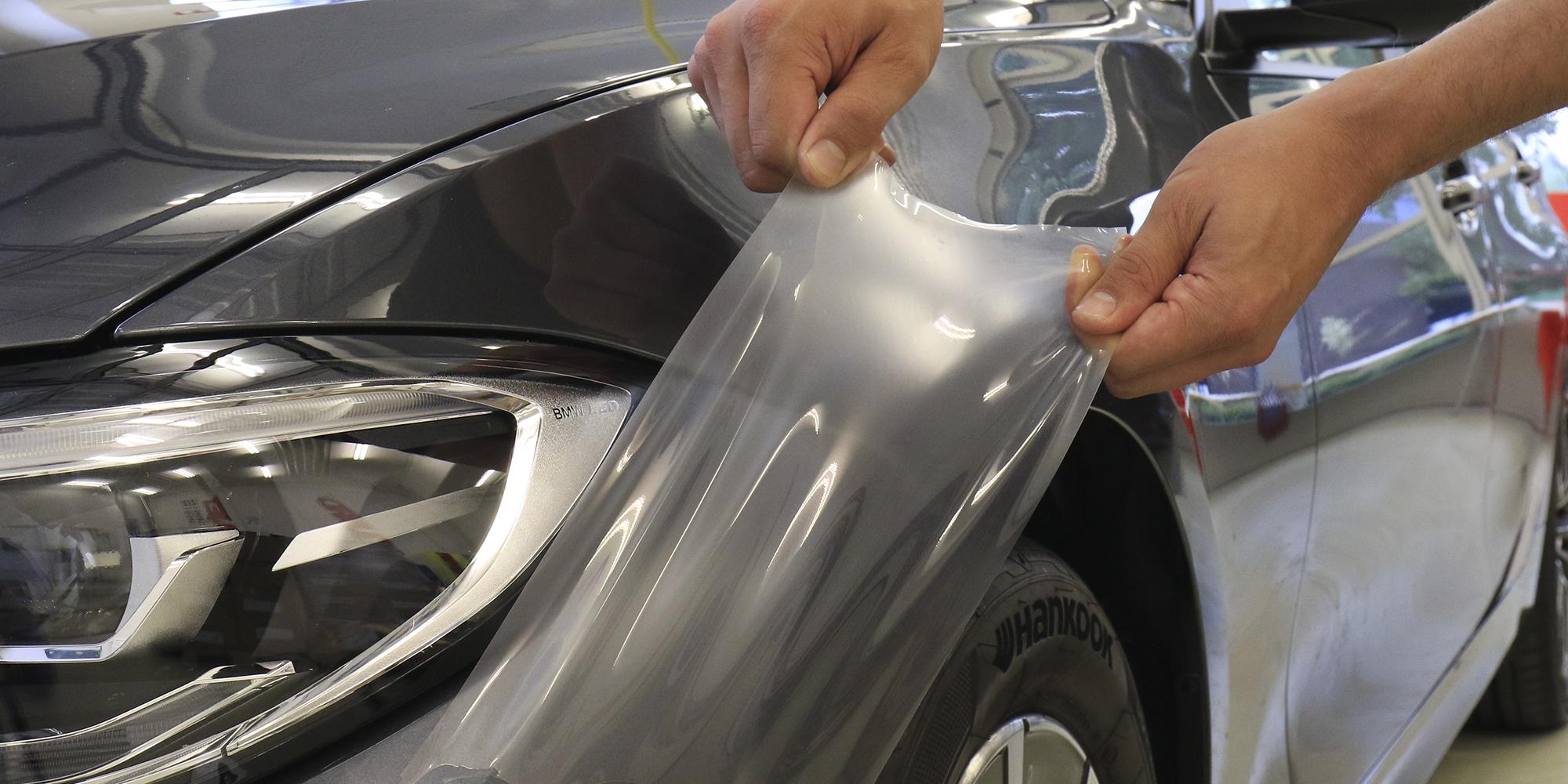

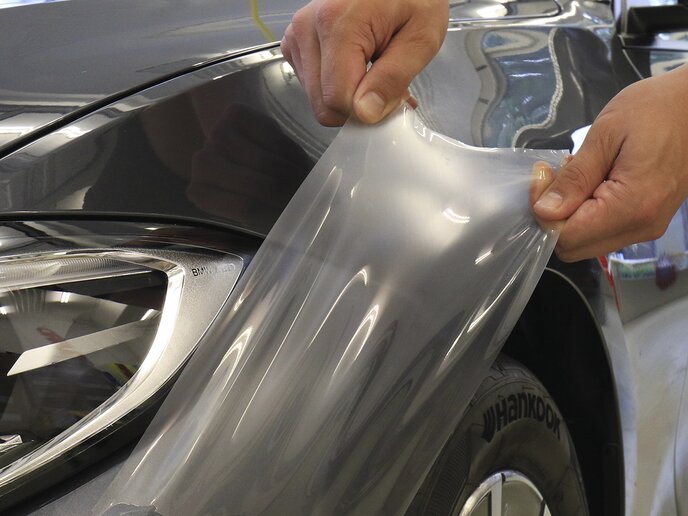

ORAGUARD® PPF2815GF
Paint Protection Film

Surface functionalised polyurethane film, highly transparent, glossy with excellent UV resistance and self-healing surface. The surface has a particularly high resistance to chemicals. The migration of dirt is prevented effectively in the film through the surface coating - meaning that the 2815GF is resistant to yellowing.

Product information

Technical properties

Resistance

Ageing test 1000 Hour(s) Xenon weathering according to EN ISO 4892
Durability Durability (general note):product.properties.technical_attributes.durability.lifetime_value_group.lifetime_value_condition_all.id.538
10 Year(s)
Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Resistance to solvents and chemicals Water, Sulphuric acid (10 %), Hydrochloric acid (10 %), Bird droppings (pancreatin), Tree resin, Fuels, Motor oil, Isopropyl alcohol Immersion for: 1 hour (water, acid), 30 min (pancreatin, tree resin), 10 min (isopropyl alcohol, fuel, engine oil), check after 24 h at RT
Maximum shrinkage Maximum shrinkage along 0.2 mm
Maximum shrinkage across 0.2 mm 		Bonded to steel max. | product.properties.technical_attributes.durability.maximum_shrinkage_block.maximum_shrinkage_lengthwise_note.id.538.a6b9bbf4
Elongation at break Minimum elongation at break along 300 %
Minimum elongation at break across 300 % 		DIN EN ISO 527
Tensile strength Minimum tensile strength along: 29 N/mm²
Minimum tensile strength across: 29 N/mm² 		EN ISO 527
Stone chip resistance Passed To SAE J400 2.4L gravel
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 100 °C

Adhesive properties

Adhesive power 17 N/25 mm after 24 h, on stainless steel, average value | FINAT TM 1
Adhesive Permanent
Processing
Application temperature Minimum temperature 10 °C
Proposed application technology Wet application Wet application procedure with ORAFOL Application Gel
Product Construction
Liner PET film, single-side silicone coated
Front material Thickness front material: 0.16 mm
Front material: Polyurethane film

General

Thickness 0.16 mm without protective liner and adhesive, average value
Dimensions
Format Roll
Standard width 1520 mm
Standard length 50 m
15 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
