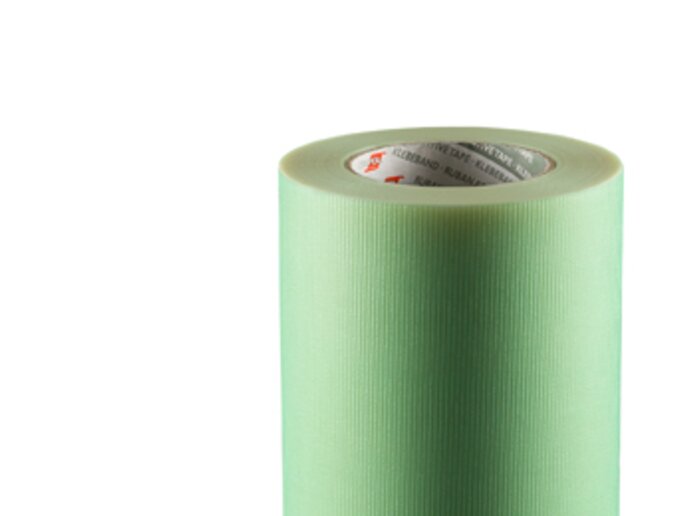

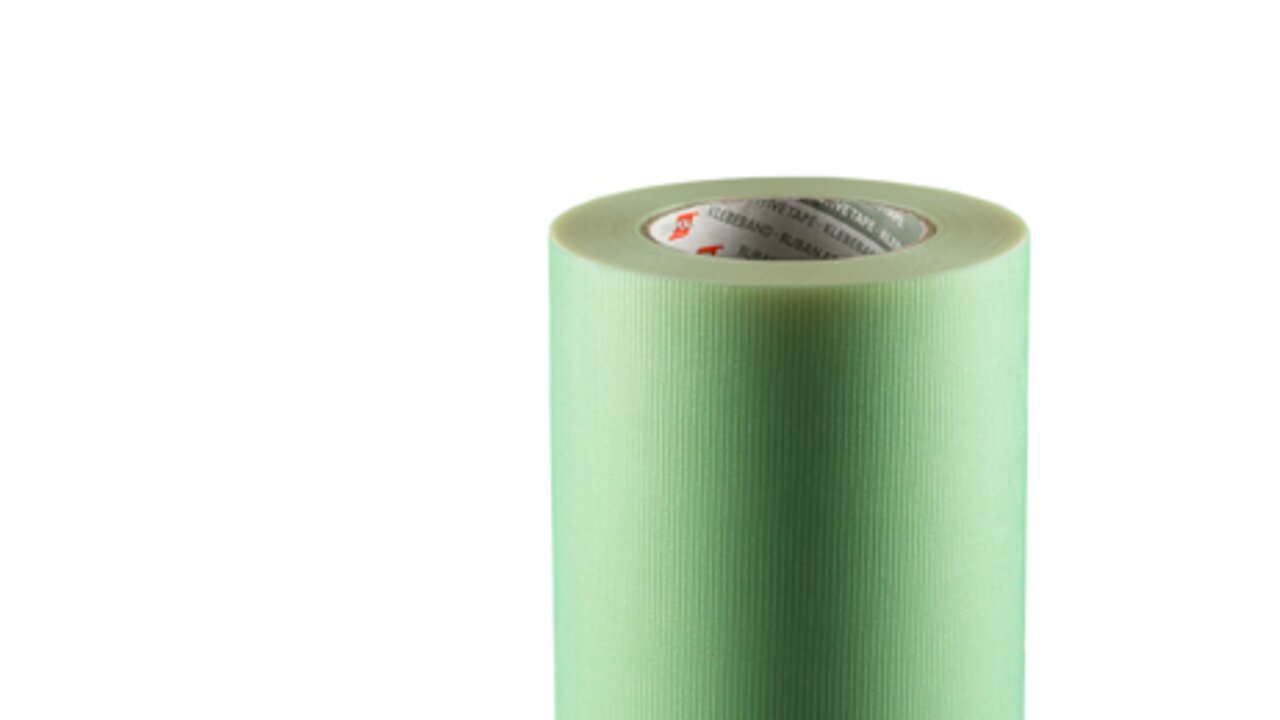

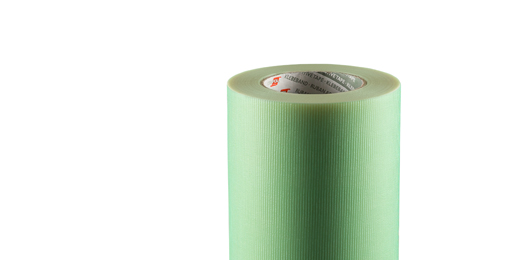

ORAFLEX® 11397
Solid
Double-sided cliché mounting tape with film carrier and natural rubber adhesive for the mounting of photopolymer and rubber clichés on mounting films, sleeves or metal cylinders in flexographic, book and label printing
Product information
Technical properties
Resistance
| Shelf Life | 1 Year(s) |
|---|---|
| Temperature resistance | Maximum temperature 60 °C |
Adhesive properties
| Dynamic shear strength | 180 | in N/625 mm² |
|---|---|---|
| Adhesive power | 10 N/25 mm | at 180° | Average value |
| 9 N/25 mm | at 90° | Average value |

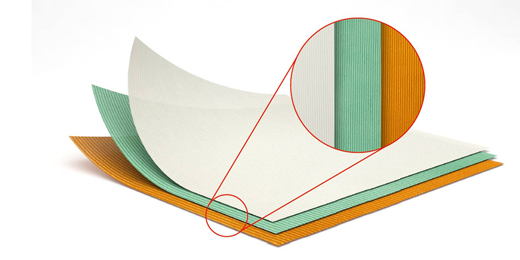

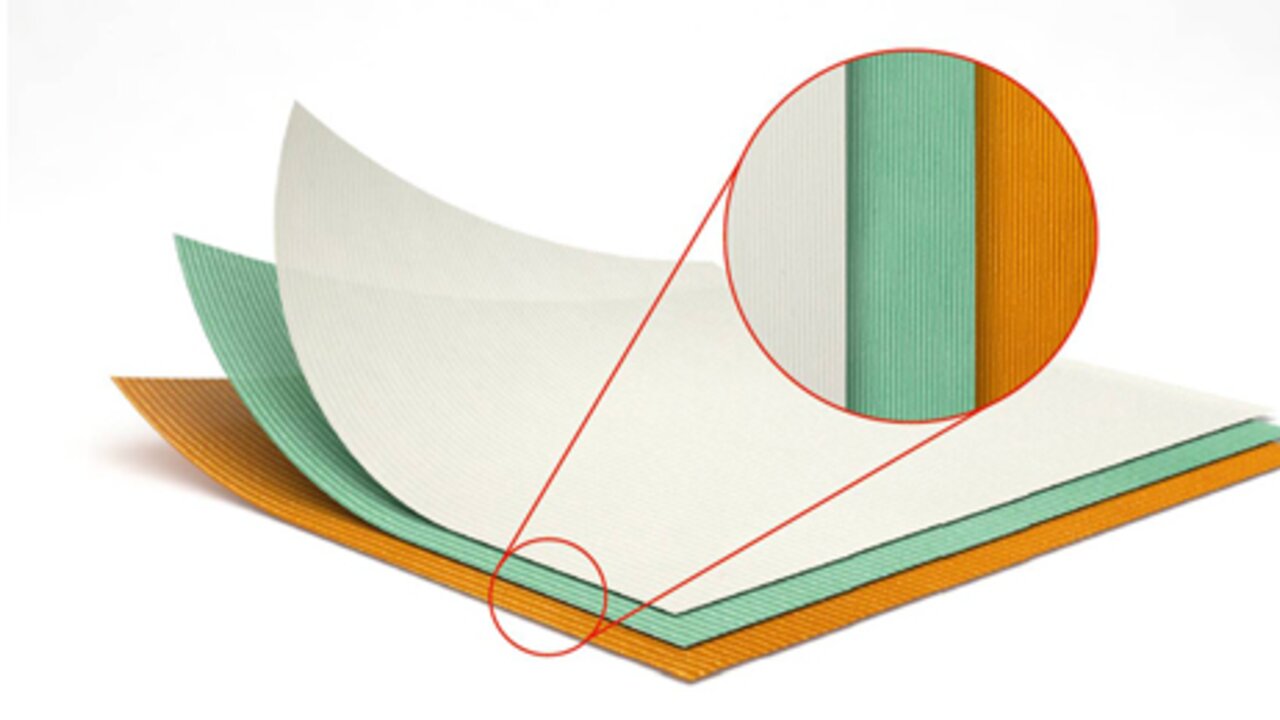

Product Construction
| Liner |
Liner: Pleated siliconised PP film Colour cover material: Green |
|
|---|---|---|
| Adhesive covered side | Natural rubber | |
| Adhesive open side | Natural rubber | |
| Carrier |
Colour carrier: Transparent Carrier: PP film |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 310 mm |
| 1250 mm | |
| Standard length | 25 m |
Downloads
Technical documents
Product information - English (EN)
PDF, 140.72kB, 1 Page
Shelf Life - English (EN)
PDF, 163.28kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
