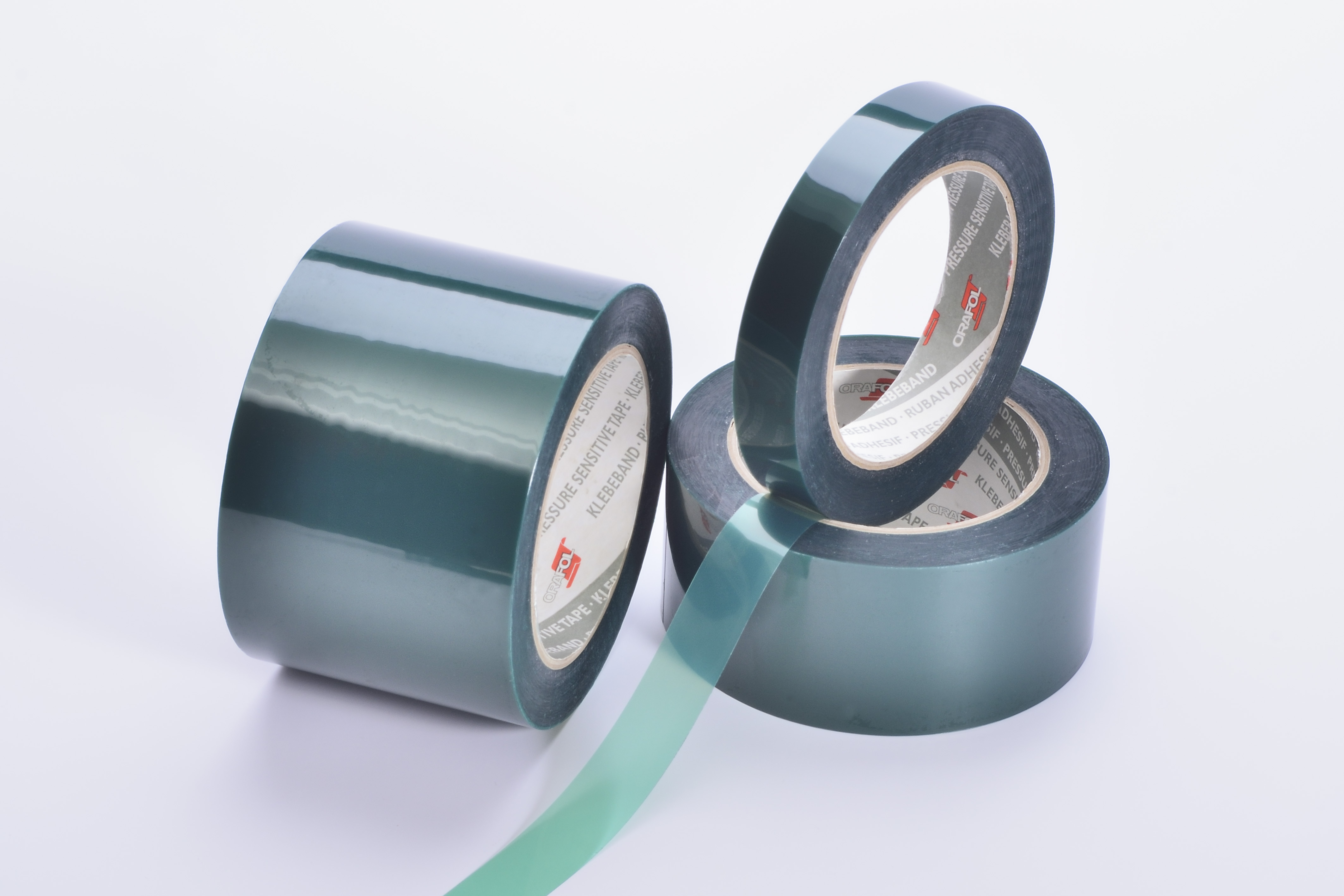

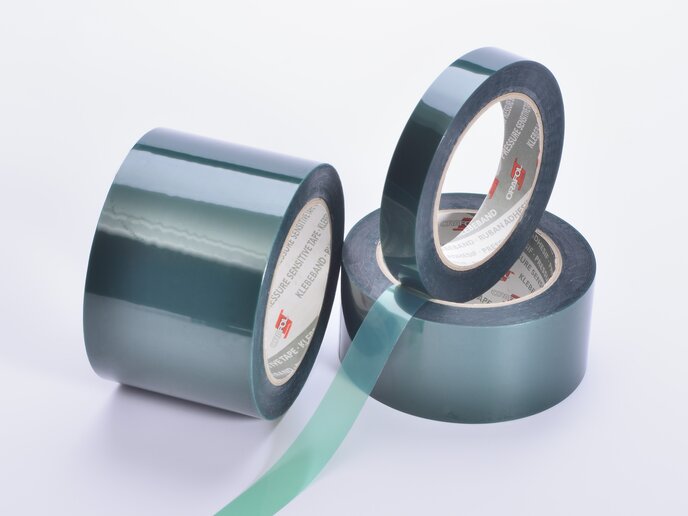

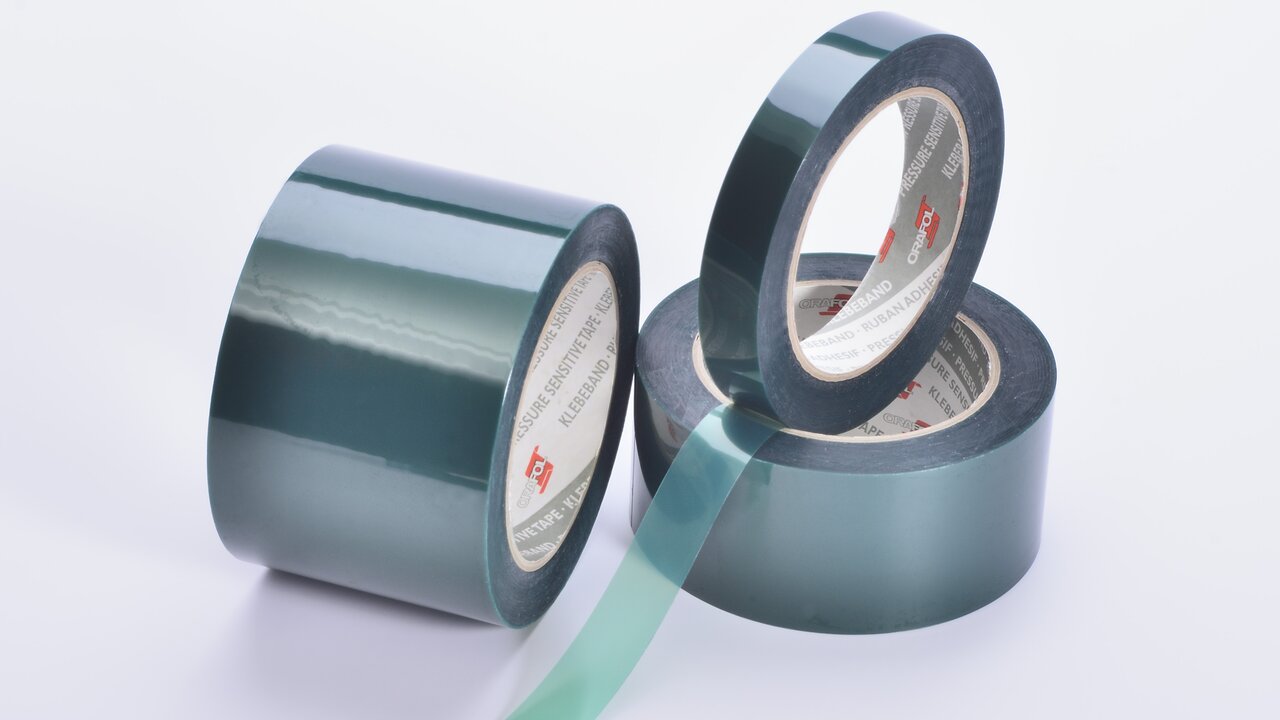

The adhesive tape consists of a polyester film carrier that is coated on one side with a silicone rubber adhesive. The adhesive is characterised by a high shear resistance and high temperature resistance as well as age resistance and extensive plasticiser resistance. The adhesive shows a good adhesion to adhesive-repellent materials.
Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
---|---|---|
Resistance to solvents and chemicals | Mineral oils, Greases, Fuels, Aliphatic solvents, Salts and alkalis, Weak acids | |
Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 180 °C |
*1 h, central European normal climate | short-term up to +200 °C |
Adhesive power | 3 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1 |
---|---|---|
5 N/25 mm | on stainless steel, after 20 min | Average value, FINAT TM 1 | |
8 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 | |
Initial adhesion (loop tack) | 7 | Average value, FINAT TM 9 |
Maximum shear strength | 10 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
Application temperature | Minimum temperature 15 °C |
---|
Adhesive open side | Silicone rubber | |
---|---|---|
Carrier |
Colour carrier: Transparent Carrier: Polyester |
Format | Roll, Cut | |
---|---|---|
Cutting roll width | 19 mm | |
25 mm | ||
30 mm | ||
38 mm | ||
50 mm | ||
60 mm | ||
75 mm | ||
Standard length | 50 m |
