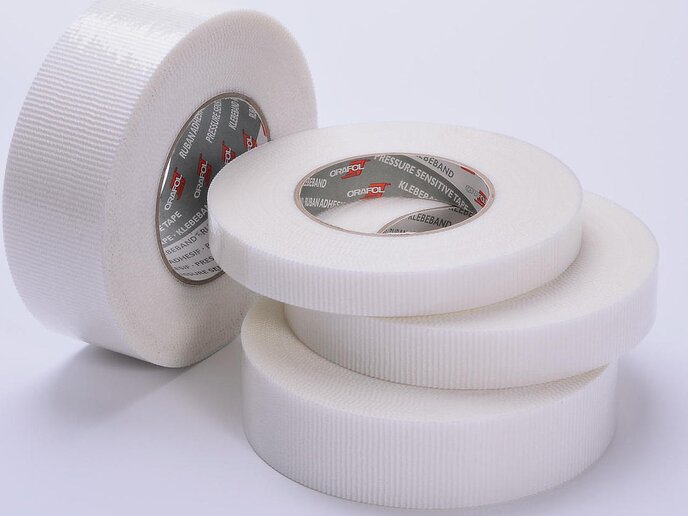

ORAFIX® 1305

The adhesive tape consists of a polyester film carrier siliconised on one side that is coated with a silicone rubber adhesive. The adhesive is characterised by a high shear resistance and high temperature resistance as well as age resistance and extensive plasticiser resistance. The adhesive shows a good adhesion to adhesive-repellent materials.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Maximum temperature 180 °C

Adhesive properties

Adhesive power 9 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
10 N/25 mm on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
12 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 10 N/25 mm Average value, FINAT TM 9
Maximum shear strength 72 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
1 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Liner Liner: Hard PVC film
Colour cover material: White 		pleated
Adhesive open side Silicone rubber
Carrier Colour carrier: Transparent
Carrier: Polyester
Dimensions
Format Roll, Cut
Cutting roll width 19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
200 mm
250 mm
330 mm
500 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
