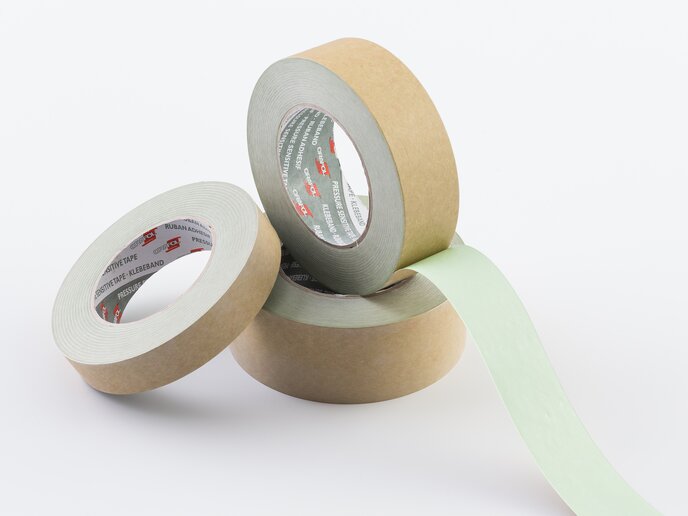

ORAFIX® 129702
One-sided adhesive tape consisting of a water-dispersible paper, siliconised on one side that is coated with a water-soluble, modified acrylate adhesive. The adhesive is characterised by good initial adhesion and high thermal consistency. The used adhesive RA2 complies with the Code of Federal Regulations, Food and Drugs (FDA), 21 CFR Ch. I, § 175.105.
Product information
Technical properties
Resistance
| Shelf Life | 1 Year(s) | in closed original packaging, in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Tensile strength |
Minimum tensile strength along: 210 MPa Minimum tensile strength across: 100 MPa |
EN ISO 527 |
| Temperature resistance | Maximum temperature 200 °C | central European normal climate | short-term up to +230 °C |
Adhesive properties
| Adhesive power | 14 N/25 mm | after 1 min, FINAT TM 1, on copy paper |
|---|---|---|
| 16 N/25 mm | after 20 min, FINAT TM 1, on copy paper | |
| Initial adhesion (loop tack) | 13 N/25 mm | FINAT TM 9 | Average value |
| Maximum shear strength | 1.5 Hour(s) | at 230 °C | Average value, S.A.F.T. Test from 23 °C to 230 °C |
Processing
| Repulpability | Repulpable | to TAPPI UM 213 |
|---|
Product Construction
| Adhesive covered side | Water-soluble modified acrylate | |
|---|---|---|
| Adhesive open side | Water-soluble modified acrylate | |
| Carrier |
Colour carrier: Brown Carrier: Paper siliconised on one side |
Dimensions
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 19 mm | |
| 25 mm | ||
| 30 mm | ||
| 38 mm | ||
| 50 mm | ||
| 60 mm | ||
| 75 mm | ||
| Standard length | 50 m |
