Technical data sheet - English (EN)
PDF, 1.35MB, 3 Pages
ORACAL® UV05

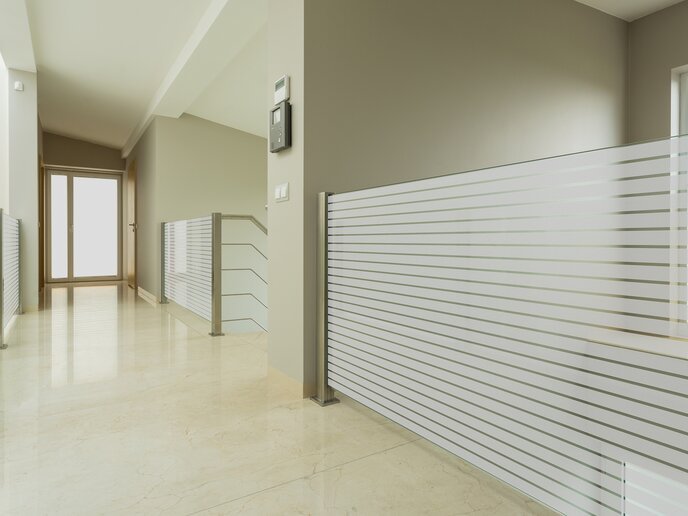

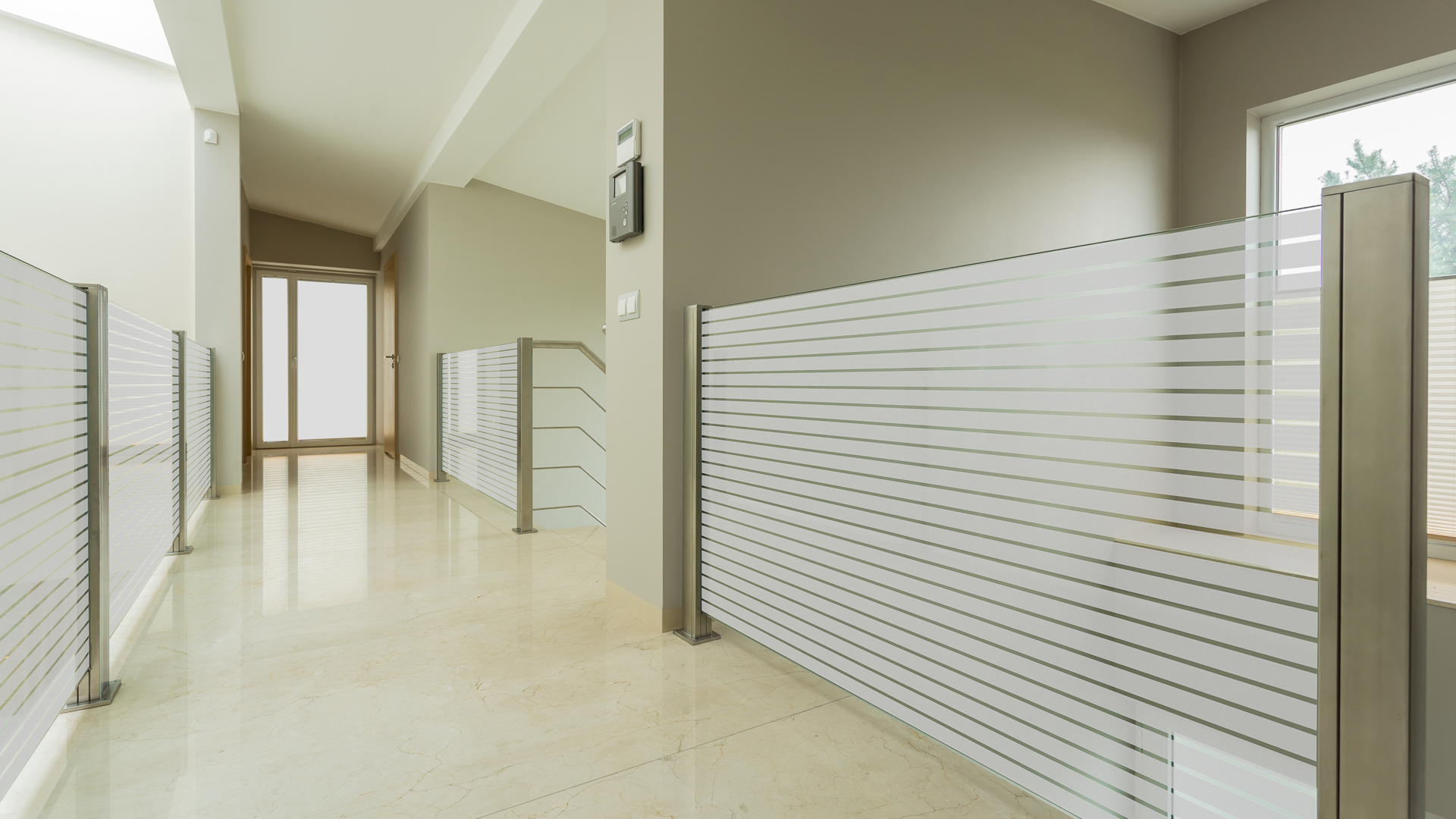

ORACAL® Decorative Window Films are PET-based design window films for the applications on flat glass surfaces indoors.
Product information
Technical properties
Resistance
| Durability | 5 Year(s) | with professional processing and proper care and use, interior | Applies for indoor application. Further information is available under: https://www.orafol.com/de/europe/support |
|---|---|---|
| Shelf Life | 2 Year(s) | in original packaging (with side holders) vertical storage, at 20 °C and 50 % relative humidity |
Processing
| Application temperature | Minimum temperature 10 °C |
|---|---|
| Proposed application technology | Wet application |
Product Construction
| Liner | Silicon-coated polyester |
|---|---|
| Front material |
Thickness front material: 0.038 mm Front material: PET-based design window film |
| Adhesive | Polyacrylate |
General
| Thickness | 0.05 mm | without cover material and adhesive, average value, see product description |
|---|---|---|
| 0.038 mm | without cover material and adhesive, average value, see product description |
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1525 mm |
| Standard length | 30 m |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 1.34MB, 2 Pages
Product information - English (EN)
PDF, 631.87kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
