ORACAL® 951
Premium Cast

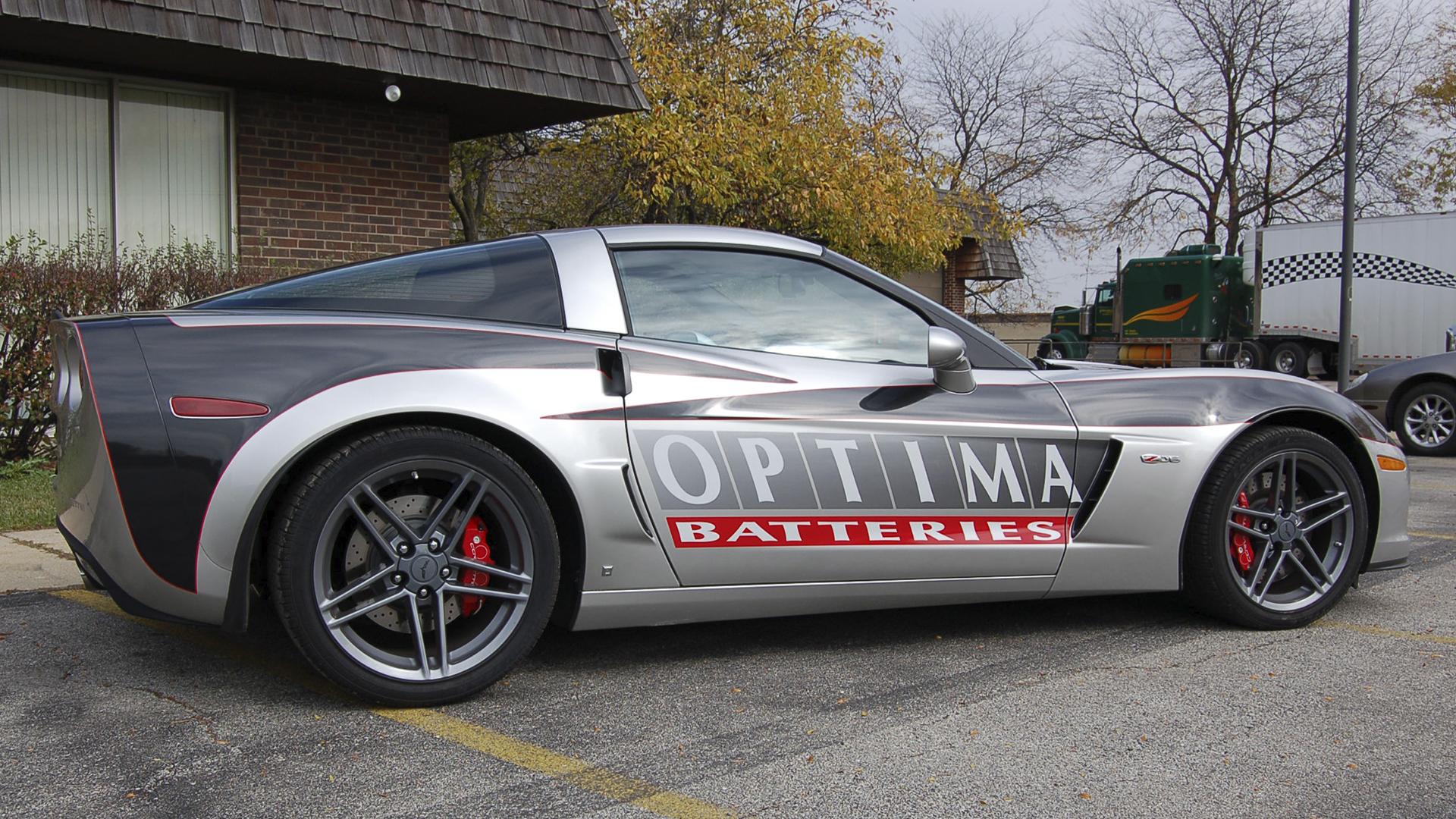

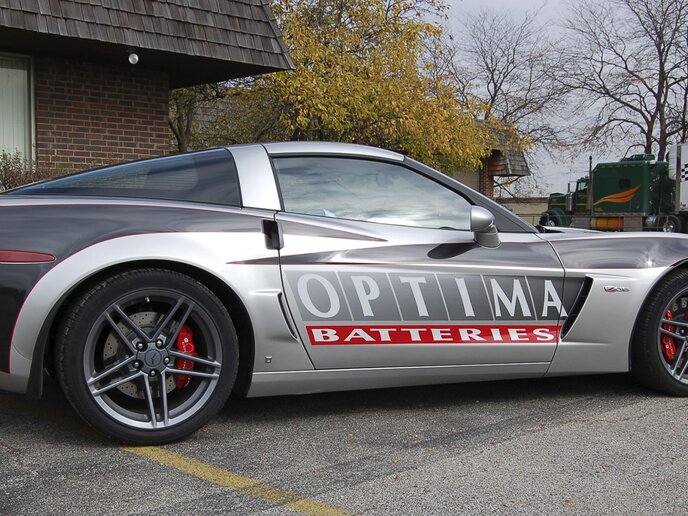

Moulded premium PVC film for plotter applications with optimum cutting and processing properties. Specifically developed for labelling, markings and decorations. Suitable in particular for high-quality advertising on vehicles and means of transport. Also applicable on uneven and curved substrates as well as in beads and over rivets. Surface high-gloss, in addition matt white and matt black. The high-gloss surface finish is suitable for digital thermal transfer printing (with resin ribbons).

Product information

Technical properties

Resistance

Resistance to cleaning agents No change adhered on aluminium, 0.5 % household detergent, at room temperature and 65 °C | 0.5 % household cleaning agent, at room temperature and 65 °C
Durability Durability (general note):with professional processing and proper care and use, applies for vertical outdoor weathering and central European normal climate
10 Year(s) Black, white
8 Year(s) Transparent, coloured
6 Year(s) metallic
3 Year(s) Copper, gold metallic, bronze, lead gold, pyrite, red gold L, leaf green metallic, steppe green metallic
Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Resistance to solvents and chemicals Greases, Fuels, Oils, Aliphatic solvents, Weak acids, Salts and alkalis
Maximum shrinkage Unsupported type | Unsupported type
Elongation at break Minimum elongation at break along: 150 %
Minimum elongation at break across: 150 % 		DIN EN ISO 527
Tensile strength Minimum tensile strength along: 21 MPa
Minimum tensile strength across: 21 MPa 		EN ISO 527
Seawater resistance Tested adhered on aluminium | EN ISO 9227, after 100 h/35 °C no change
Temperature resistance Minimum temperature: -50 °C
Maximum temperature: 120 °C 		Short-term load, bonded to aluminum
Water resistance Tested adhered on aluminium, at 23 °C

Adhesive properties

Adhesive power 18 N/25 mm after 24 h, on stainless steel | FINAT TM 1
Adhesive Permanent
Processing
Recommended printing procedure Digital thermal transfer printing the high-gloss surface finish is suitable for digital thermal transfer printing (with resin ribbons)
Application temperature Minimum temperature 8 °C
Product Construction
Adhesive Solvent-polyacrylate

General

Thickness 0.05 mm Average value, without protective liner and adhesive
Dimensions
Format Roll
Standard width 1260 mm
Standard length 50 m
25 m
