ORACAL® 7710
Fluorescent Premium Cast Plus

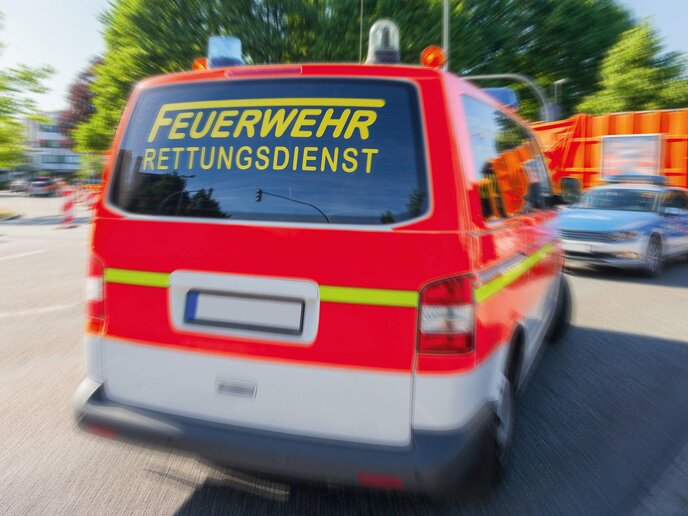

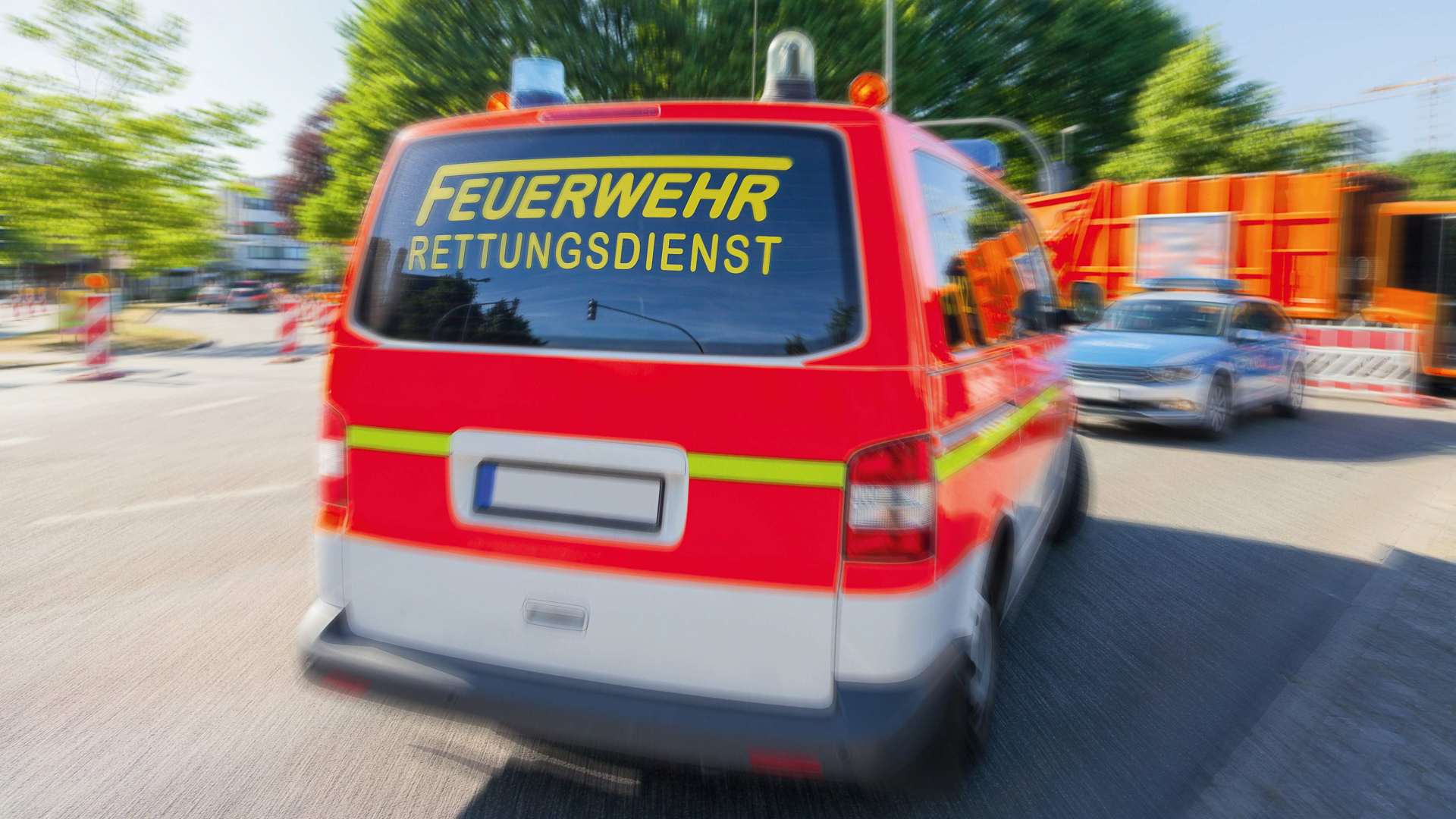

Specially developed for emergency vehicles, moulded premium PVC film with a high degree of attention thanks to its intensive lighting effect in all daylight conditions. Especially effective at dawn and dusk and other poor visibility conditions. The series ORACAL® 7710 Fluorescent Premium Cast Plus is available in the colours 029 Yellow fluorescent and 039 Red fluorescent.
Available colours
2 Colours
029G
Yellow fluorescent
Glossy
222 250 4 (sRGB)
039G
Red fluorescent
Glossy
247 15 9 (sRGB)
Product information
Technical properties
Resistance
| Resistance to cleaning agents | No change | adhered on aluminium |
|---|---|---|
| Durability | Durability (general note):The real durability and durability to be expected depend in particular on ambient conditions, amongst other also after the pre-treatment of the substrate and regular care | |
| 4 Year(s) | with professional processing and proper care and use, applies for vertical outdoor weathering and central European normal climate | |
| Shelf Life | 2 Year(s) | in original packaging upright, at 20 °C and 50 % relative humidity |
| Resistance to solvents and chemicals | Oils, Greases, Fuels, Aliphatic solvents, Weak acids, Salts and alkalis | at room temperature, 72 h after adhesion on aluminium |
| Maximum shrinkage |
Maximum shrinkage along: 0.15 mm Maximum shrinkage across : 0.15 mm |
bonded to steel | Average value, FINAT TM 14 |
| Elongation at break |
Minimum elongation at break along: 150 % Minimum elongation at break across: 150 % |
Average value, EN ISO 527 |
| Tensile strength |
Minimum tensile strength along: 18 MPa Minimum tensile strength across: 18 MPa |
Average value, EN ISO 527 |
| Seawater resistance | Tested | adhered on aluminium | EN ISO 9227, after 100 h/35 °C no change |
| Temperature resistance |
Minimum temperature: -50 °C Maximum temperature: 120 °C |
Short-term load, bonded to aluminum |
| Water resistance | Tested | at 23 °C, bonded on aluminium | after 100 h no change |
Adhesive properties
| Adhesive power | 18 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1 |
|---|---|---|
| Adhesive | Permanent |
Processing
| Application temperature | Minimum temperature 8 °C |
|---|
Product Construction
| Liner |
Liner: Silicone cardboard coated on one side Surface weight: 137 g/m² |
|---|---|
| Adhesive | Solvent-polyacrylate |
General
| Thickness | 0.17 mm | Average value, without protective liner and adhesive |
|---|
Dimensions
| Format | Roll |
|---|---|
| Standard width | 1260 mm |
| Standard length | 50 m |
| 25 m |
