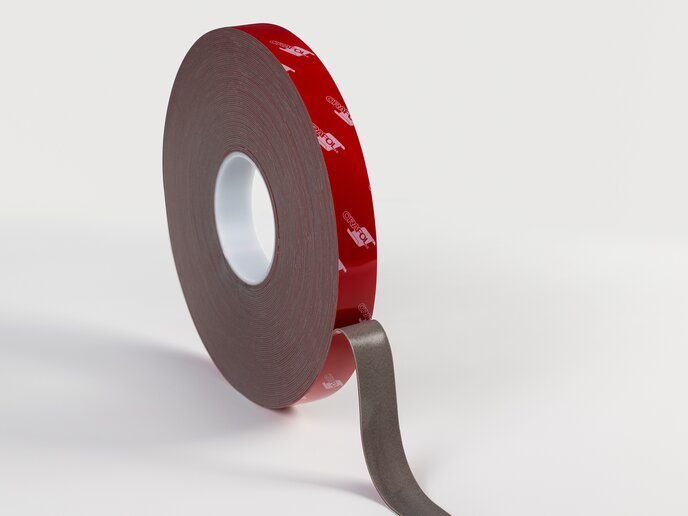

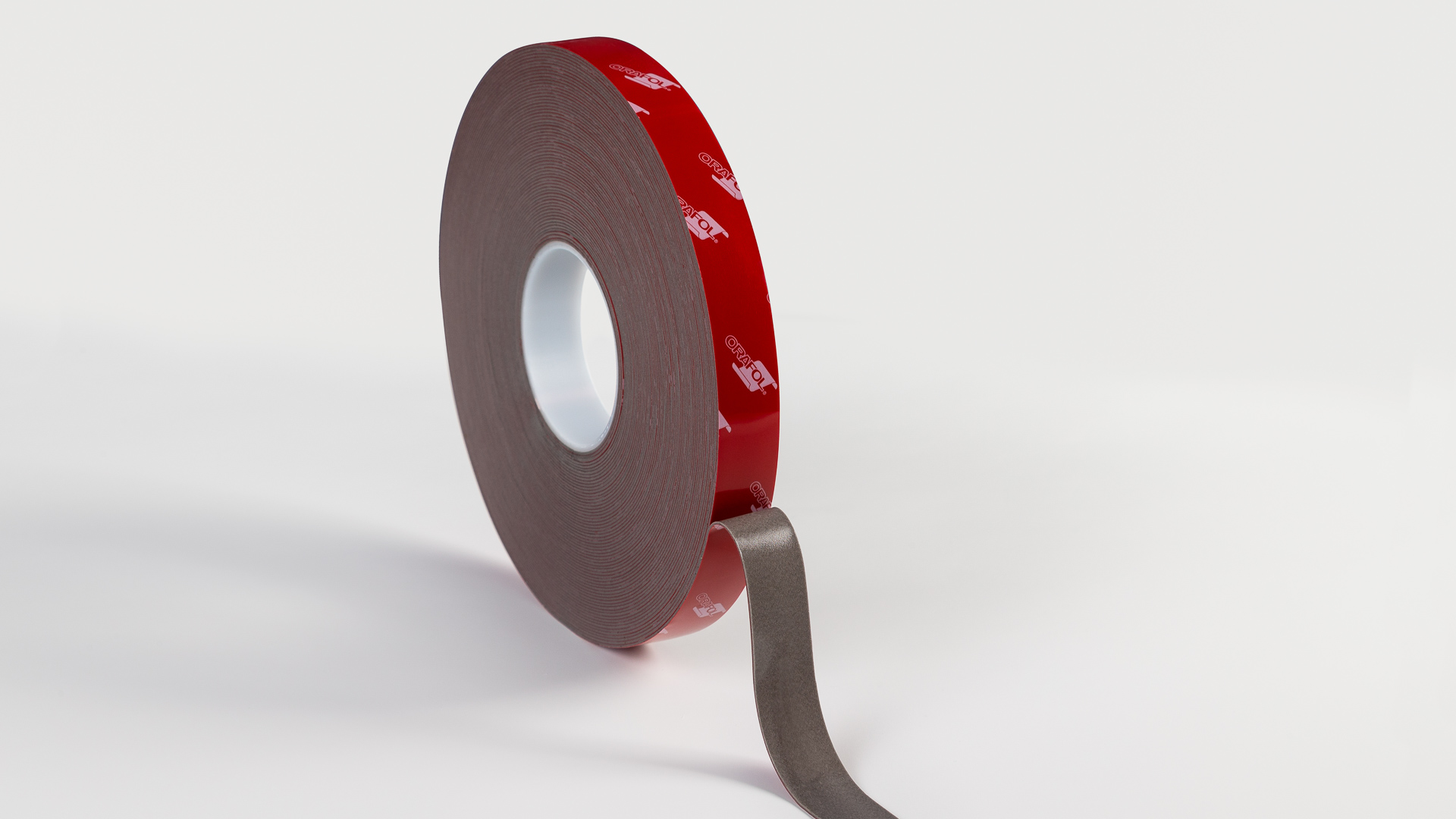

ORABOND® UHB04150G
Acrylic Foam Tape
The ORABOND® UHB04150G adhesive tape consists of an acrylate adhesive which was developed for adhesions and mounting applications that are exposed to extremely high shear and temperature stresses. Thanks to the visco-elastic properties of the UHB® adhesive, stresses resulting from different thermal expansion coefficients of the adhesive substrates can be equalised. This also allows for an excellent surface wetting, which leads to extremely high adhesive forces. The material also offers excellent UV resistance.
Product information
Technical properties
Resistance
| Shelf Life | 2 Year(s) | in original packaging, at 20 °C and 50 % relative humidity |
|---|---|---|
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 200 °C |
short-term |
|
Minimum temperature: -40 °C Maximum temperature: 150 °C |
long-term |
Adhesive properties
| Dynamic shear strength | 0.56 N/mm² | after 24 h, based on ASTM D1002, on stainless steel |
|---|---|---|
| Adhesive tensile strength (T-pull) | 0.76 N/mm² | after 24 h, based on ASTM D897, on anodised aluminium |
| Adhesive power | 50 N/25 mm | after 24 h, based on ASTM D3330, on stainless steel |
Processing
| Application temperature | Minimum temperature 1 °C |
|---|
Product Construction
| Liner |
Liner: PE film Colour cover material: Red |
|---|---|
| Adhesive covered side | Acrylate adhesive "UHB04" |
Dimensions
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 19 mm | ||
| 25 mm | ||
| Standard width | 800 mm | |
| Standard length | 25 m |
Downloads
Technical documents
Processing notes - English (EN)
PDF, 39.04kB, 2 Pages
Product information - English (EN)
PDF, 140.51kB, 1 Page
Shelf Life - English (EN)
PDF, 163.28kB, 1 Page
Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
