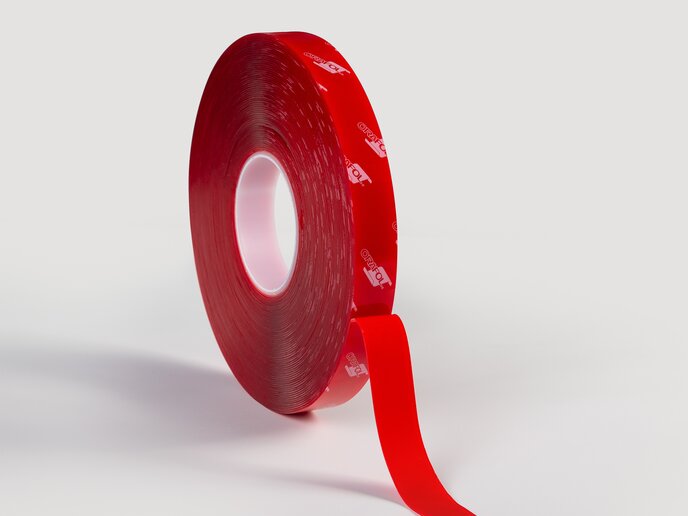

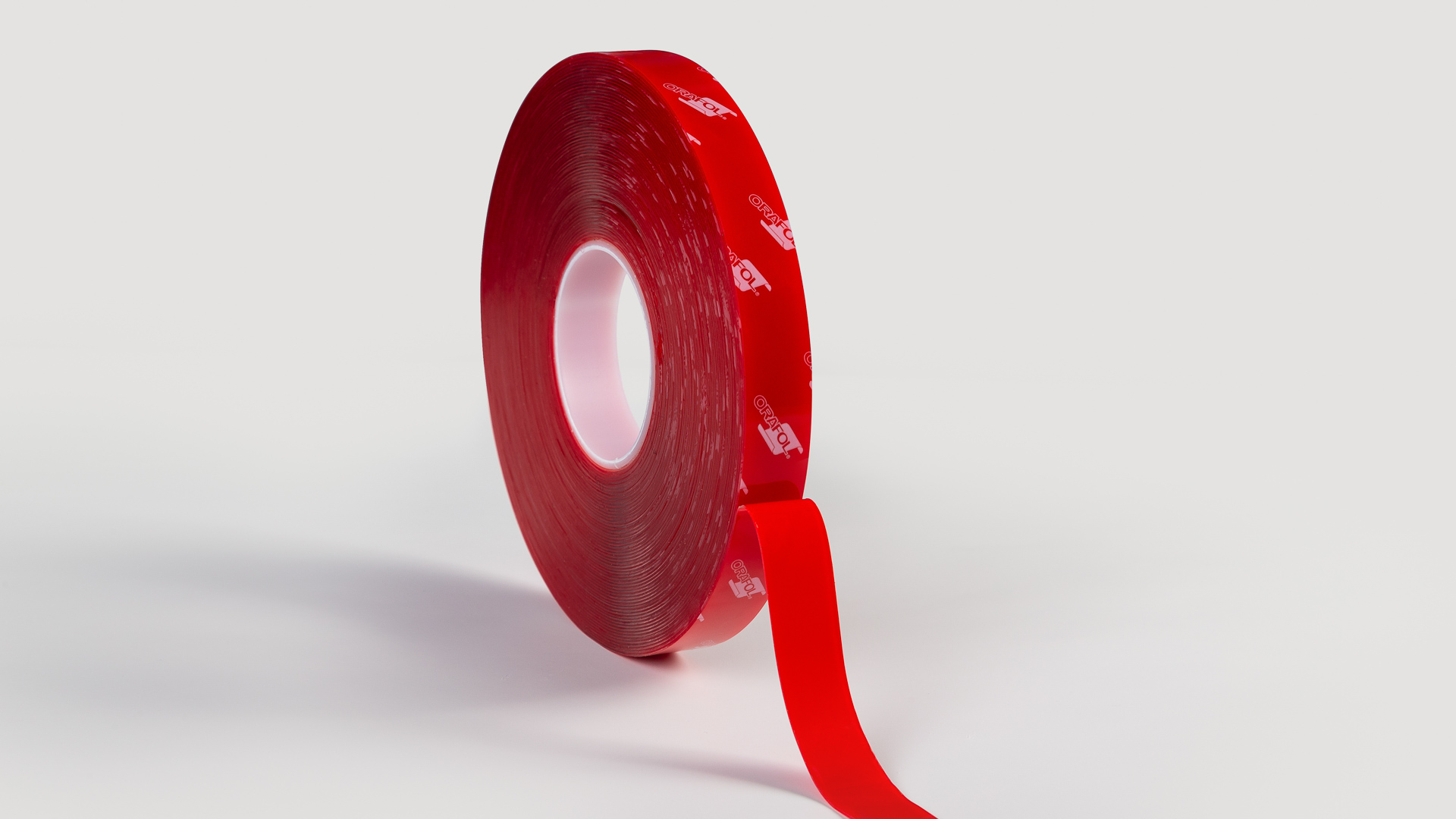

ORABOND® UHB03100T
Acrylic Foam Tape

The ORABOND® UHB03100T adhesive tape consists of an acrylate adhesive which was developed for adhesions and mounting applications that are exposed to extremely high shear and temperature stresses. Thanks to the visco-elastic properties of the UHB® adhesive, stresses resulting from different thermal expansion coefficients of the adhesive substrates can be equalised. This also allows for an excellent surface wetting, which leads to extremely high adhesive forces. The transparent adhesive guarantees an aesthetic adhesion of translucent materials and offers an excellent UV resistance.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 200 °C 		short-term
Minimum temperature: -40 °C
Maximum temperature: 100 °C 		long-term

Adhesive properties

Dynamic shear strength 0.5 N/mm² after 24 h, based on ASTM D1002, on stainless steel
Adhesive tensile strength (T-pull) 1.11 N/mm² after 24 h, based on ASTM D897, on anodised aluminium
Adhesive power 48 N/25 mm after 24 h, based on ASTM D3330, on stainless steel
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Liner Liner: PE film
Colour cover material: Red 		Further cover materials: PE paper siliconised on both sides (130 µm, white with ORAFOL logo), further types on request
Adhesive covered side Acrylate adhesive "UHB03"
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
19 mm
25 mm
Standard width 800 mm
Standard length 33 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
