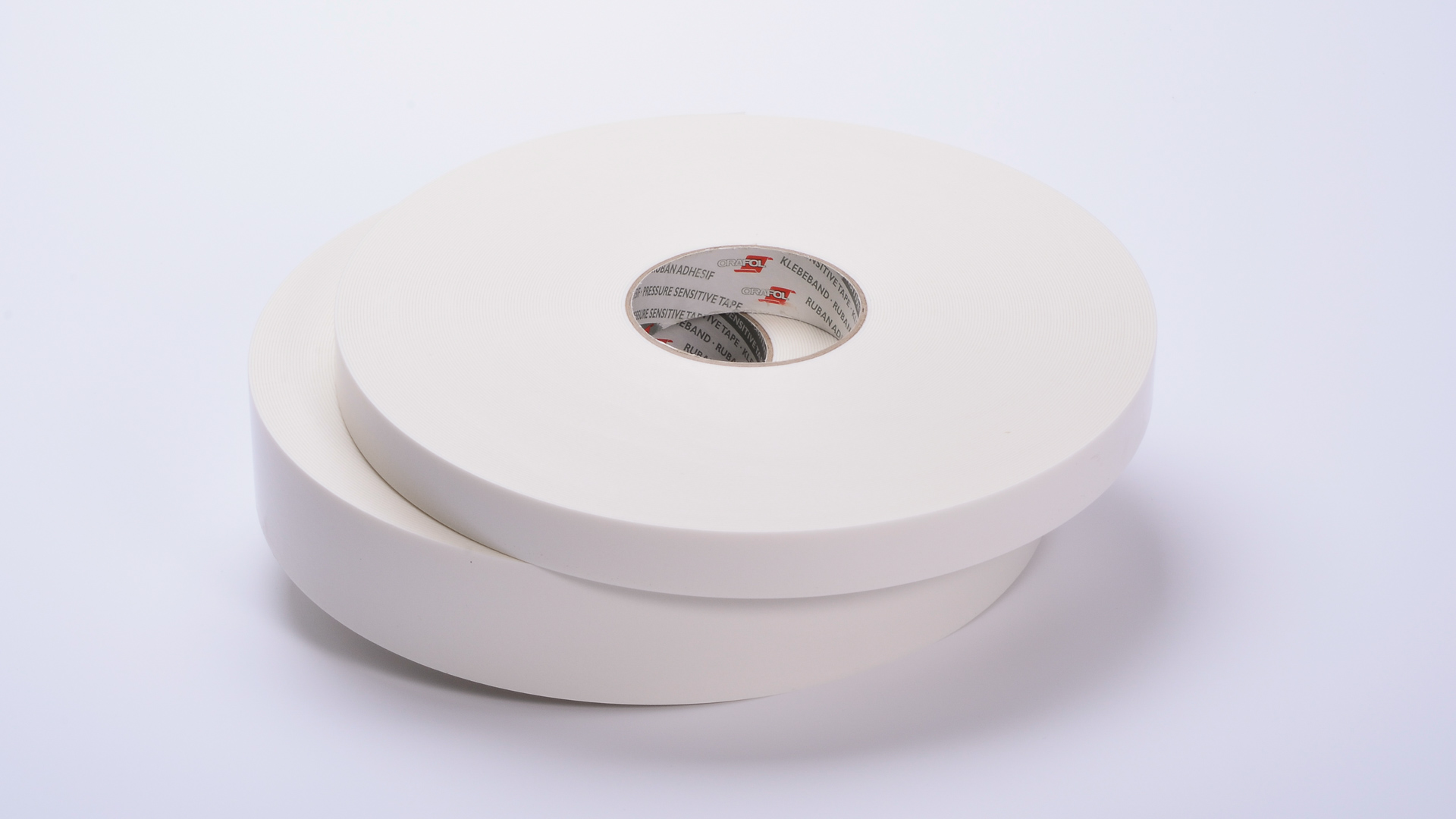

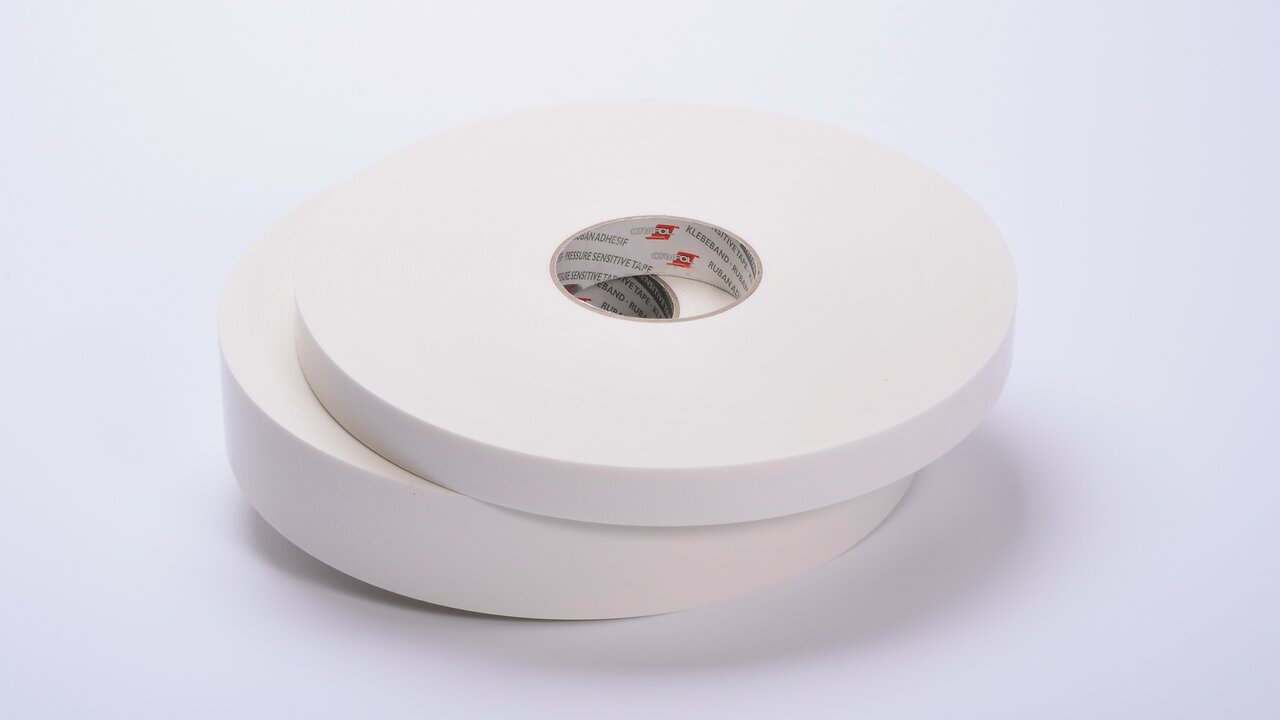

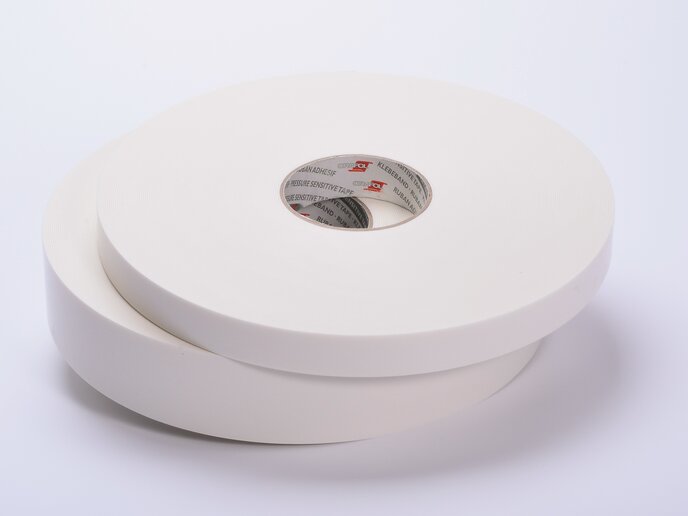

ORABOND® 1871

The double-sided adhesive tape consists of a white closed-cell polyethylene foam that is coated on the both sides with a rubber adhesive. The adhesive is characterised by amongst other things good adhesion on apolar substrates.

Product information

Technical properties

Resistance

Shelf Life 1 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -30 °C
Maximum temperature: 70 °C
central European normal climate

Adhesive properties

Adhesive power 18 N/25 mm after 1 min, FINAT TM 1, on stainless steel, covered on one side with 0.05 mm polyester film | Foam tear
18 N/25 mm after 20 min, FINAT TM 1, on stainless steel, covered on one side with 0.05 mm polyester film | Foam tear
18 N/25 mm after 24 h, FINAT TM 1, on stainless steel, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 37 N/25 mm FINAT TM 9 | Average value
Maximum shear strength 50 Hour(s) Average value, at 23 °C, FINAT TM 8, on stainless steel, covered on one side with 0.05 mm polyester film
0.16 Hour(s) Average value, at 70 °C, FINAT TM 8, on stainless steel, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Adhesive covered side Polyacrylate
Adhesive open side Polyacrylate
Carrier Colour carrier: White
Carrier: Closed-cell polyethylene foam
Dimensions
Format Roll
Standard width 1250 mm
Standard length 50 m

Downloads

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-01-21.
