ORABOND® 1864

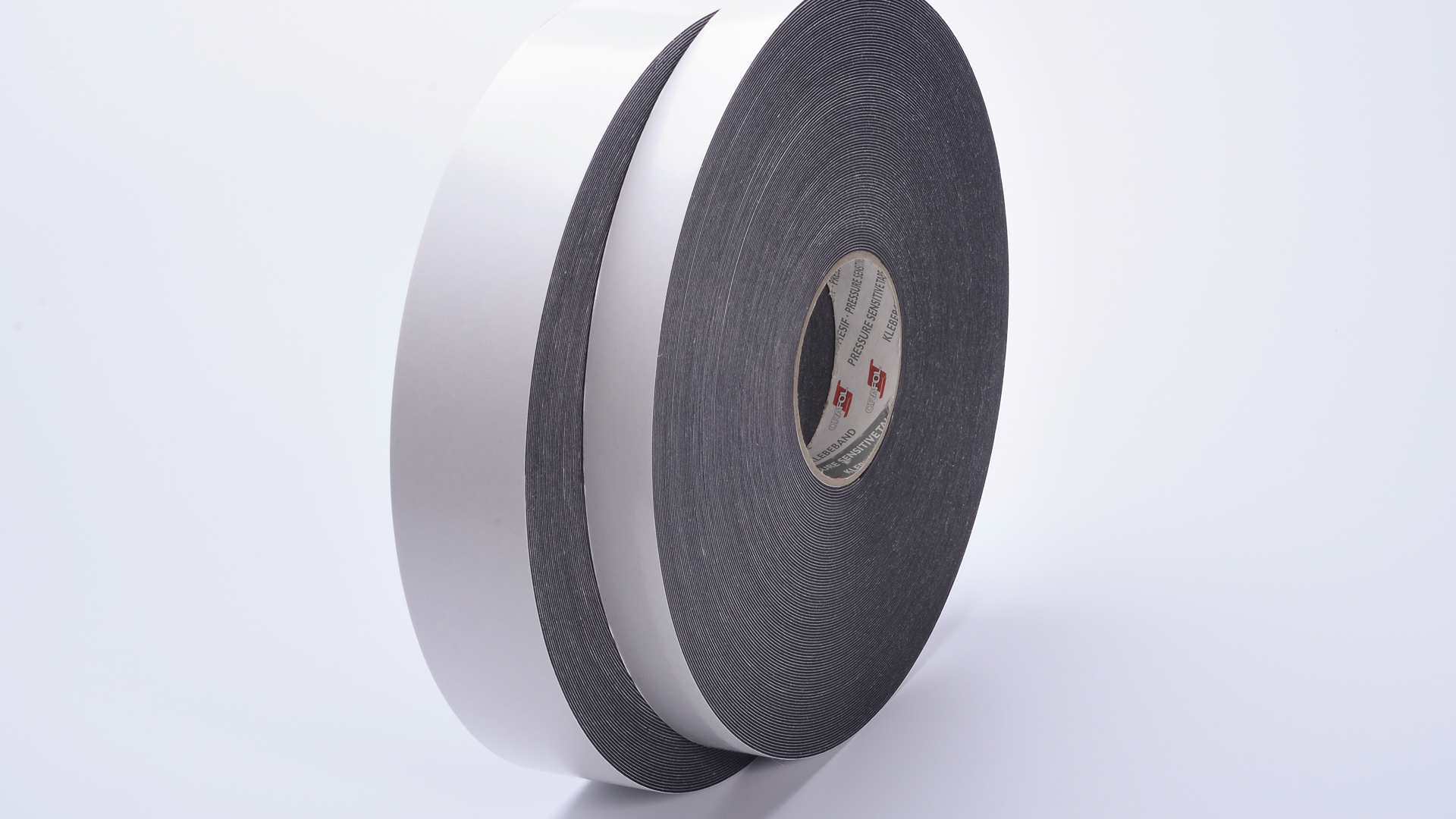

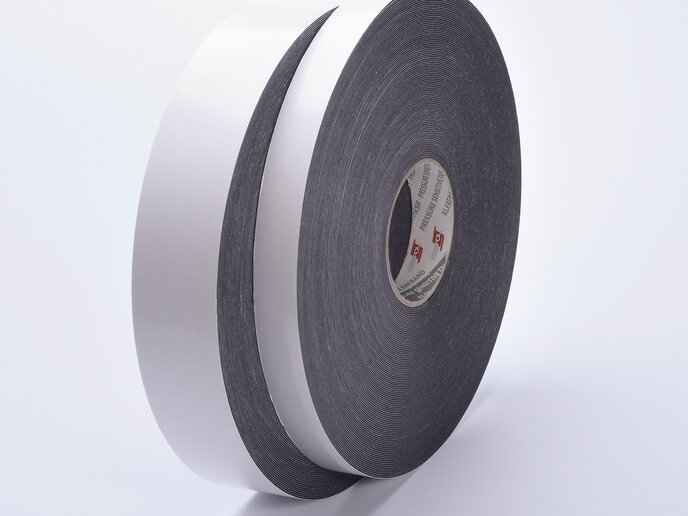

The double-sided adhesive tape consists of a black closed-cell polyethylene foam that is coated on both sides with an acrylate adhesive. The adhesive is characterised by a high initial adhesion, even on rough and critical substrate surfaces.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 95 °C 		central European normal climate

Adhesive properties

Adhesive power 22 N/25 mm after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
23 N/25 mm after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
25 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 20 N/25 mm Average value, FINAT TM 9
Maximum shear strength 1000 Hour(s) at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 50 µm polyester film
72 Hour(s) at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 50 µm polyester film
Processing
Application temperature Minimum temperature 18 °C
Product Construction
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Colour carrier: Black
Carrier: Closed-cell polyethylene foam
Dimensions
Format Roll
Standard width 1250 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
