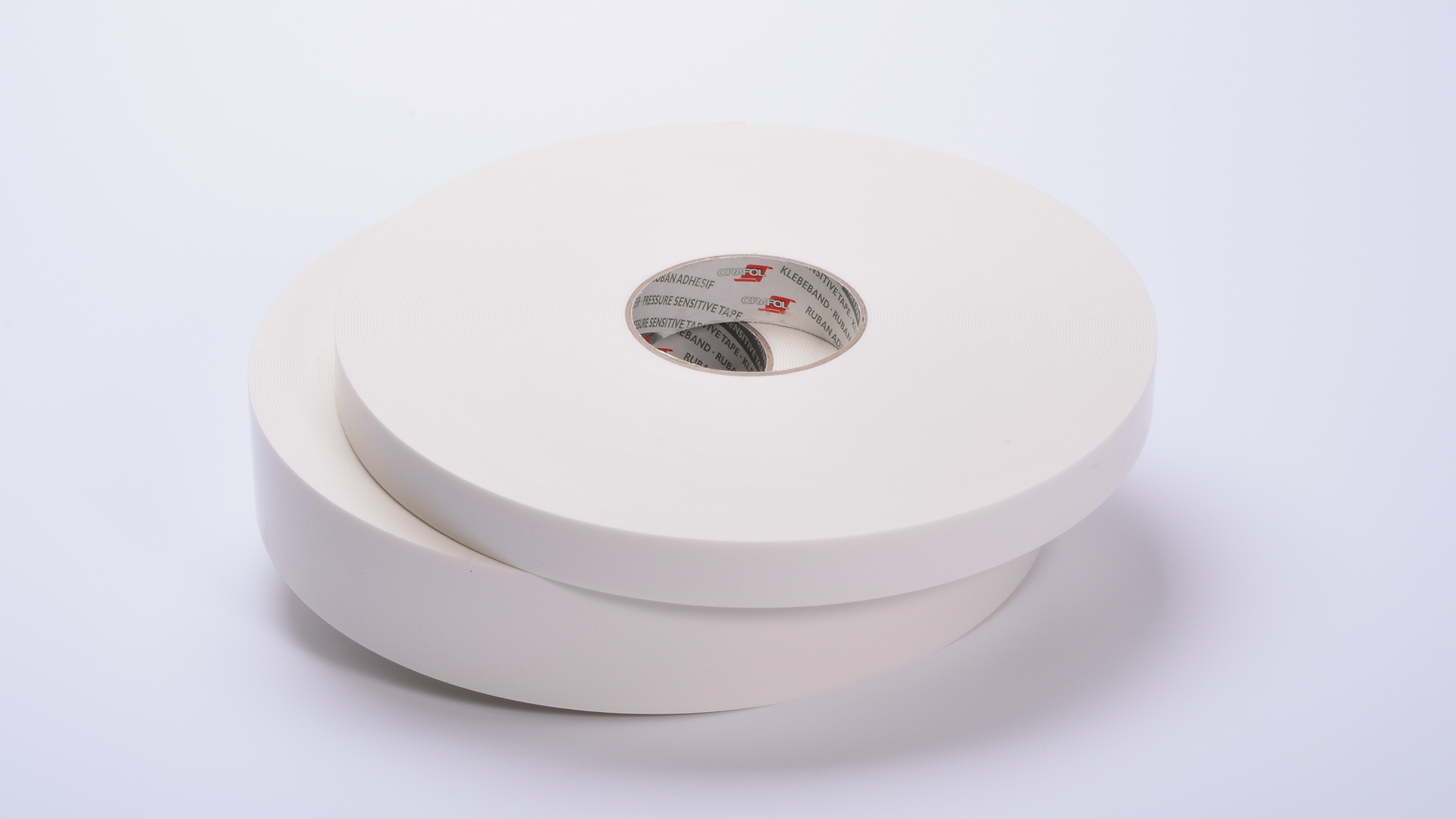

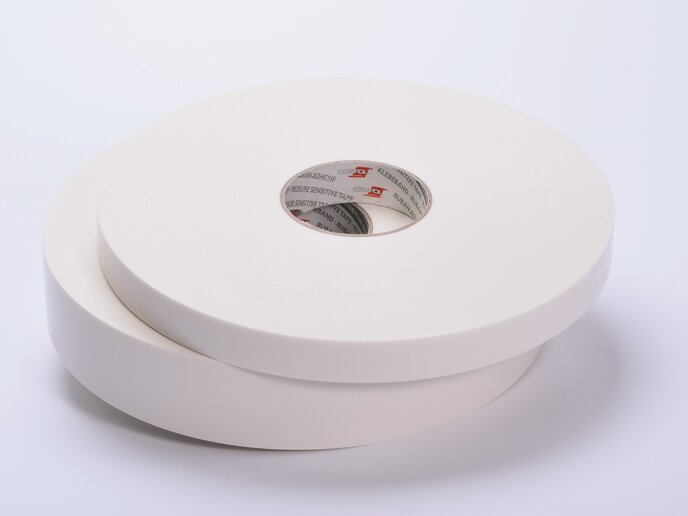

The double-sided adhesive tape consists of a white closed-cell polyolefin foam that is coated on both sides with a rubber adhesive. The adhesive is characterised by amongst other things good adhesion on apolar substrates.
Shelf Life | 1 Year(s) | in original packaging at 20 °C and 50 % humidity |
---|---|---|
Temperature resistance |
Minimum temperature: -30 °C Maximum temperature: 70 °C |
1 h, central European normal climate |
Adhesive power | 18 N/25 mm | after 1 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
---|---|---|
18 N/25 mm | after 20 min, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film, foam tear | |
18 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film, foam tear | |
Initial adhesion (loop tack) | 35 N/25 mm | Average value, FINAT TM 9 |
Maximum shear strength | 500 Hour(s) | at 23 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
1 Hour(s) | at 70 °C, on stainless steel | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
Application temperature | Minimum temperature 15 °C |
---|
Adhesive covered side | Synthetic rubber |
---|---|
Adhesive open side | Synthetic rubber |
Carrier |
Colour carrier: White Carrier: Closed-cell polyethylene foam |
Format | Roll, Cut | |
---|---|---|
Cutting roll width | 12 mm | |
15 mm | ||
19 mm | ||
25 mm | ||
30 mm | ||
38 mm | ||
50 mm | ||
60 mm | ||
75 mm | ||
100 mm | ||
Standard width | 1550 mm | |
Standard length | 50 m |
