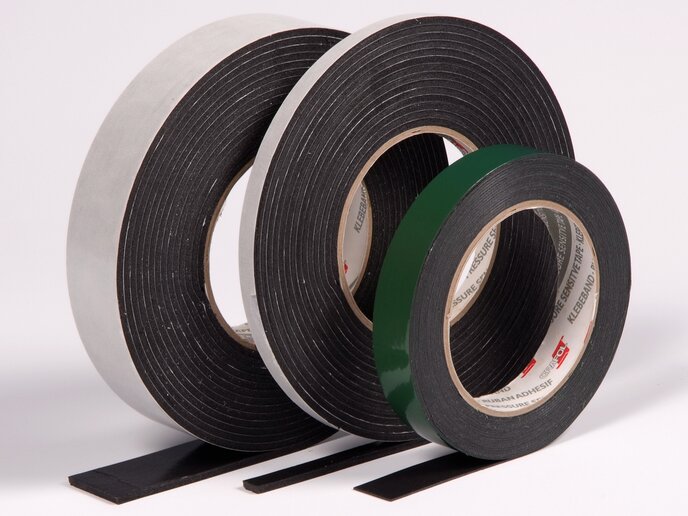

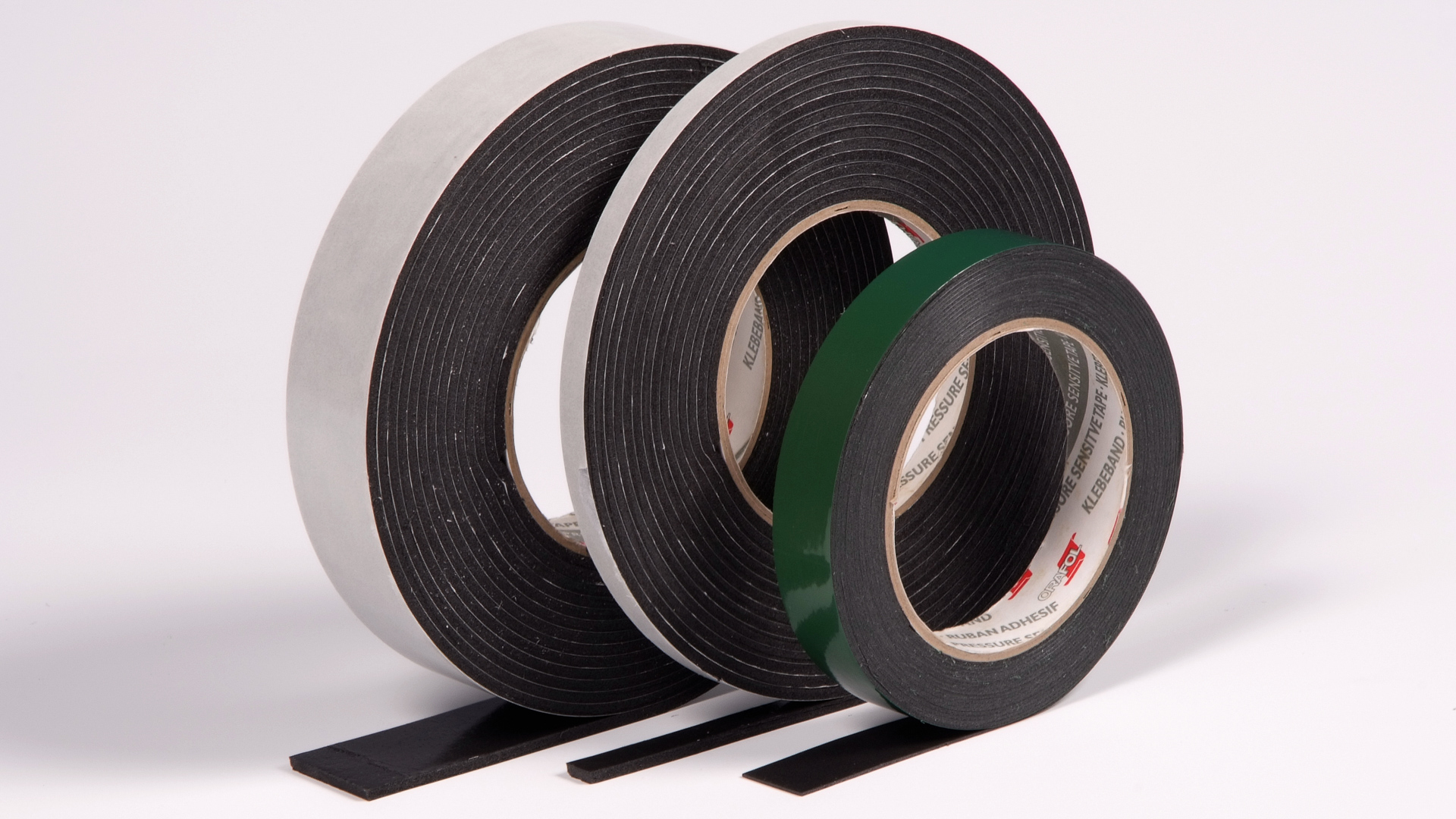

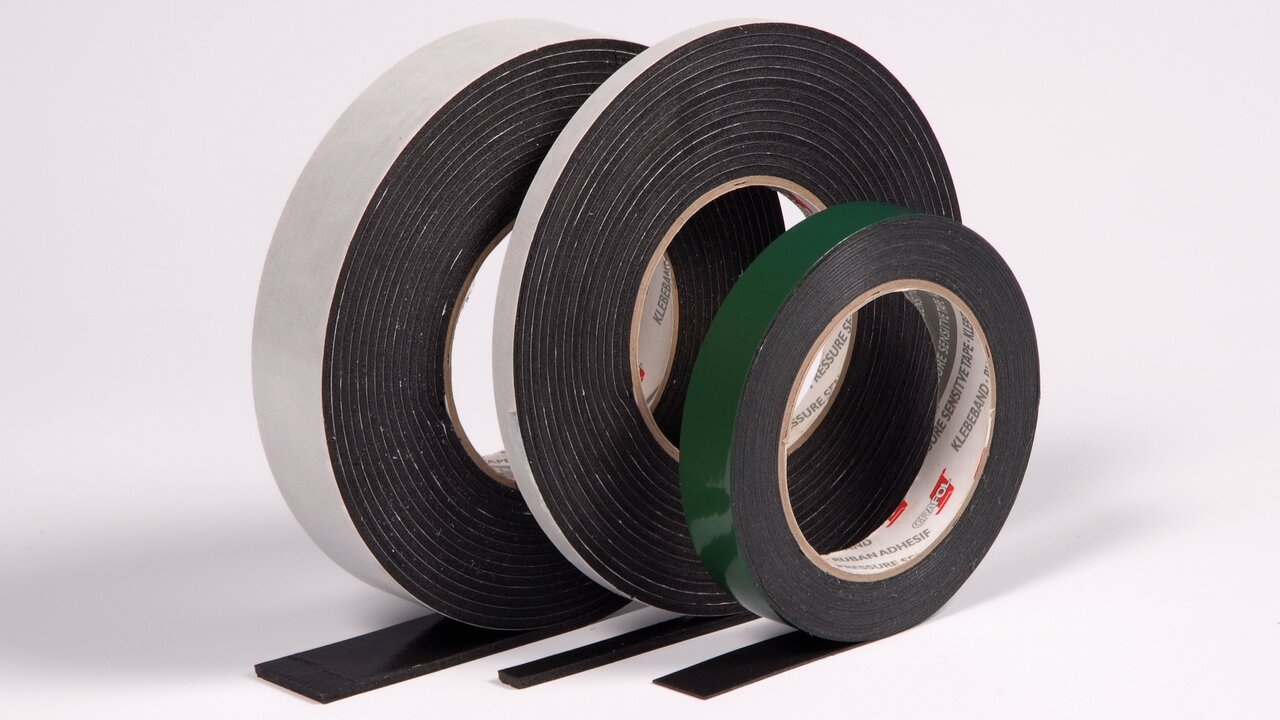

ORABOND® 1822

This tape consists of a black, closed-cell polyethylene foam that is coated on both sides with a modified solvent acrylate adhesive. The modified solvent acrylate adhesive has good adhesion to difficult substrate surfaces.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 100 °C 		1 h, central European normal climate

Adhesive properties

Adhesive power 18 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm on stainless steel, after 20 min | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
18 N/25 mm after 24 h, on stainless steel | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 32 N/25 mm Average value, FINAT TM 9
Maximum shear strength 300 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
6 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 18 °C
Product Construction
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Colour carrier: Black
Carrier: Polyethylene foam
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1550 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
