ORABOND® 1819TM

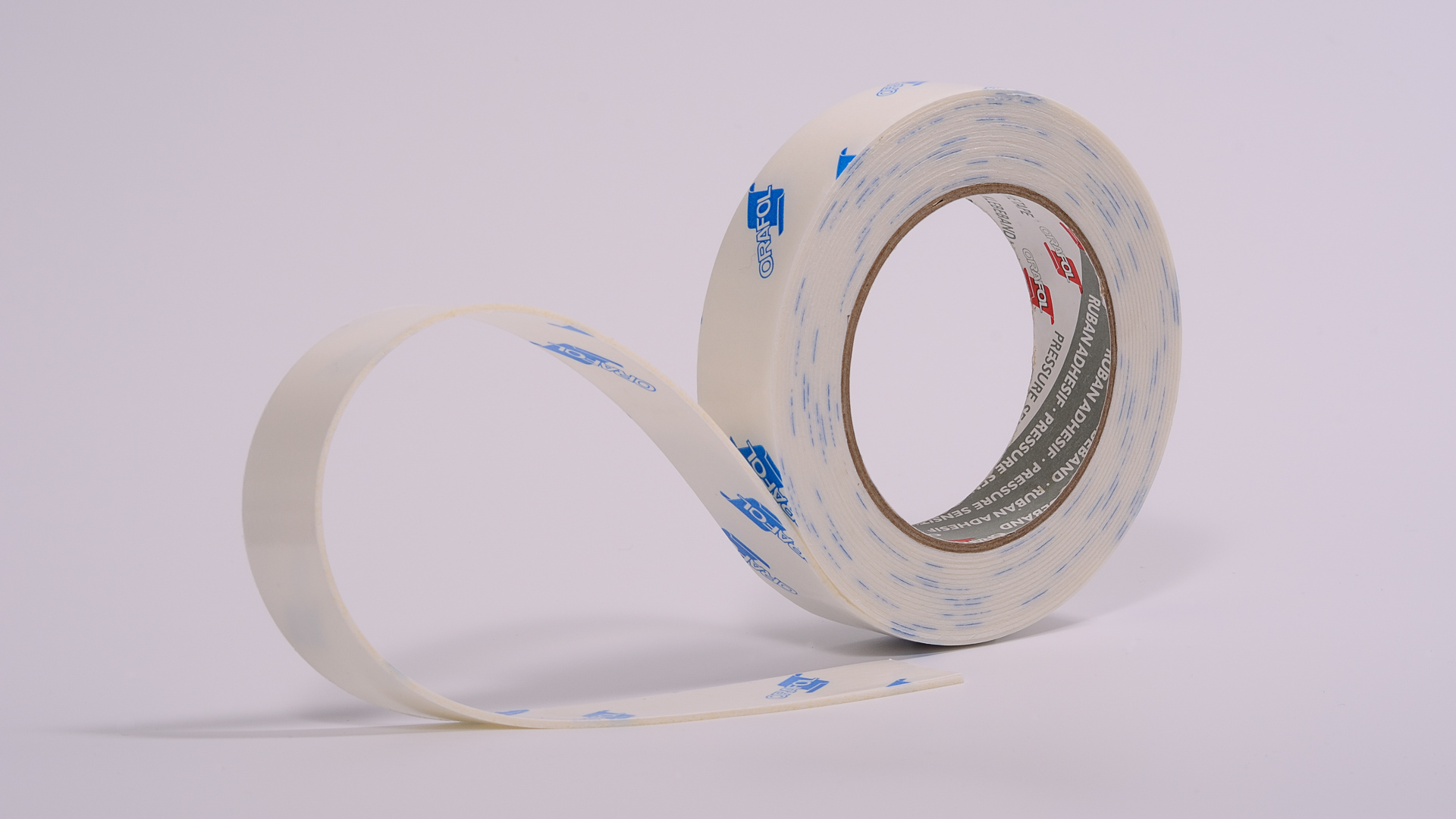

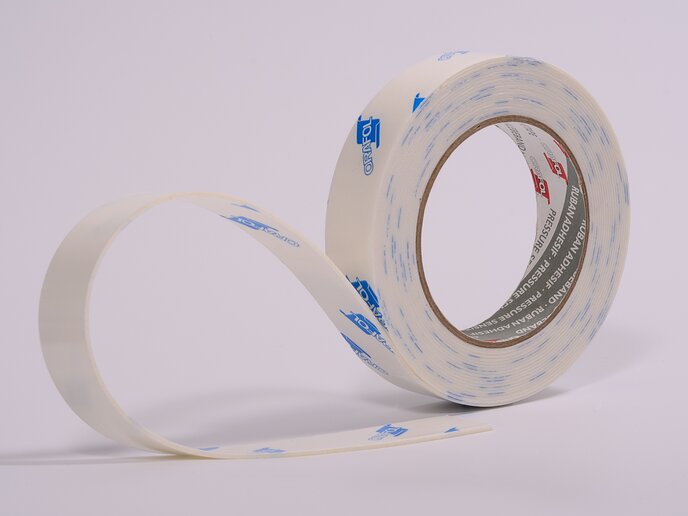

The double-sided adhesive tape consists of a white closed-cell polyethylene foam that is coated on the both sides with an acrylate adhesive. The adhesive is characterised by good shear strength and high initial adhesion.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) Storing must be effected in a clean and dry location without direct sunlight.
UV resistance Recommended
Water resistance Tested
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 100 °C 		1 h, central European normal climate

Adhesive properties

Adhesive power 18 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
19 N/25 mm on stainless steel, after 20 min | Foam splitting, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
19 N/25 mm after 24 h, on stainless steel | Foam splitting, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Initial adhesion (loop tack) 28 N/25 mm Average value, FINAT TM 9
Maximum shear strength 300 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
3 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Product Construction
Adhesive covered side Modified acrylate
Adhesive open side Modified acrylate
Carrier Colour carrier: White
Carrier: Polyethylene foam
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
19 mm
25 mm
50 mm
Standard width 1550 mm
Standard length 33 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
