ORABOND® 1803

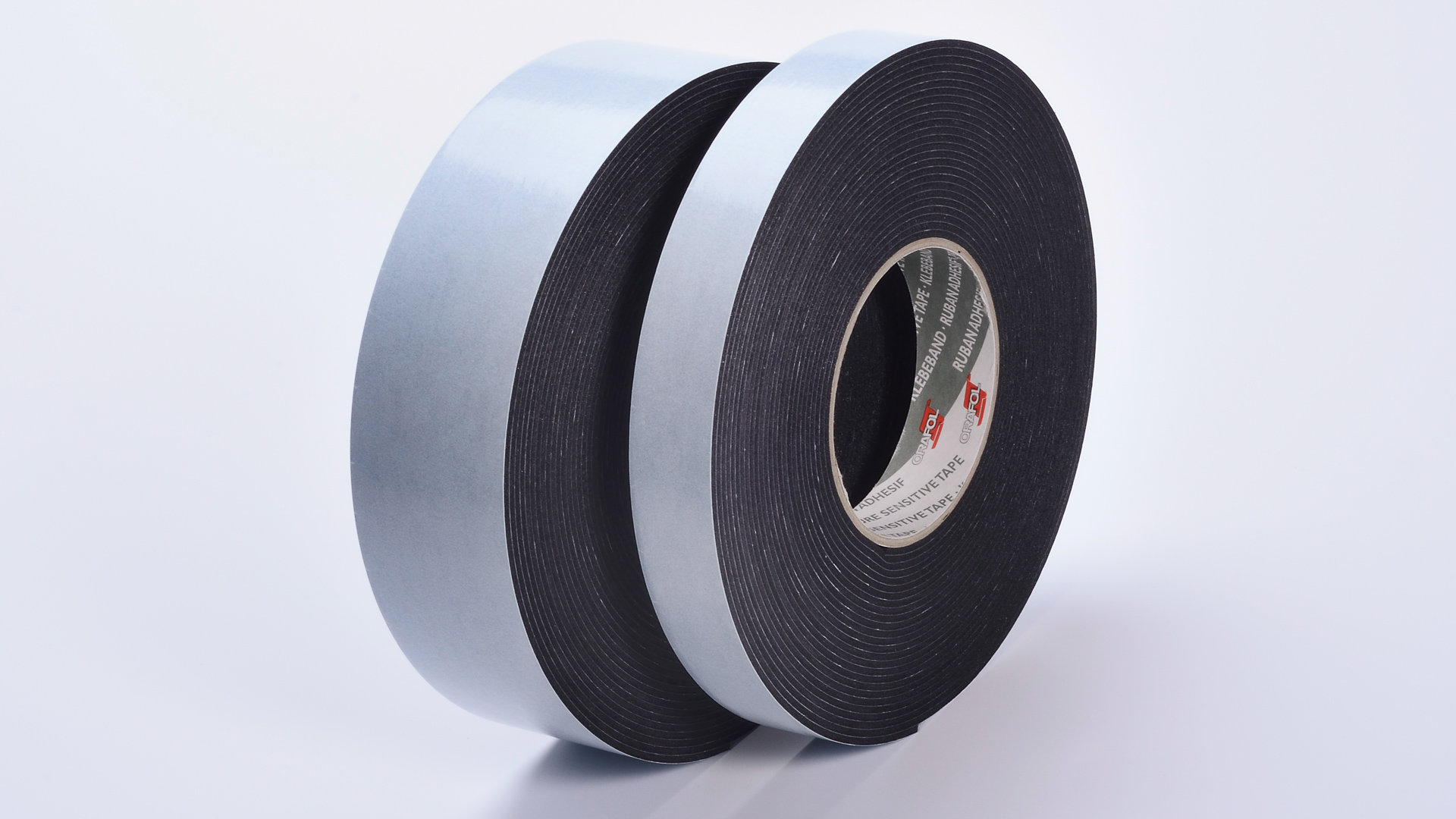

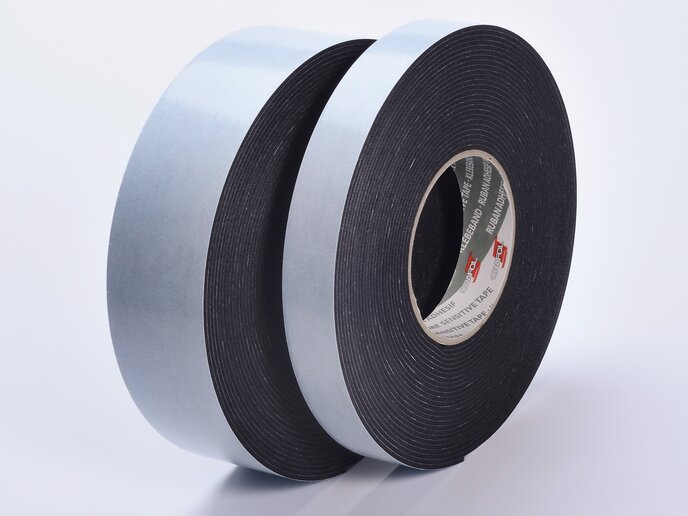

The double-sided adhesive tape consists of a black closed-cell polyethylene foam that is coated on both sides with an acrylate adhesive. The adhesive guarantees an excellent temperature resistance, high final strength and resistance against plasticisers, acids, alkalis as well as solvents. It is also compatible with different mirror coatings.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s)
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 95 °C 		central European normal climate

Adhesive properties

Adhesive power 16 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
16 N/25 mm on stainless steel, after 20 min | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
16 N/25 mm after 24 h, on stainless steel | Foam tear, average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Maximum shear strength 1000 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
72 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 18 °C
Substrate material /substrate Aluminium, GRP outside skin, steel
Product Construction
Adhesive covered side Pure acrylate
Adhesive open side Pure acrylate
Carrier Colour carrier: Black
Carrier: Polyethylene foam
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
15 mm
19 mm
25 mm
30 mm
38 mm
50 mm
60 mm
75 mm
100 mm
Standard width 1550 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
