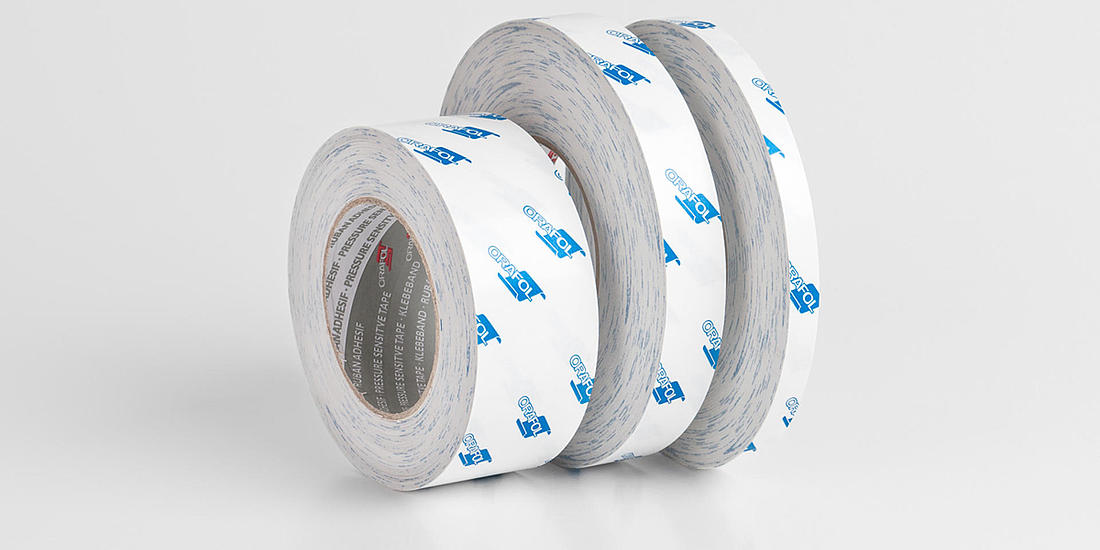

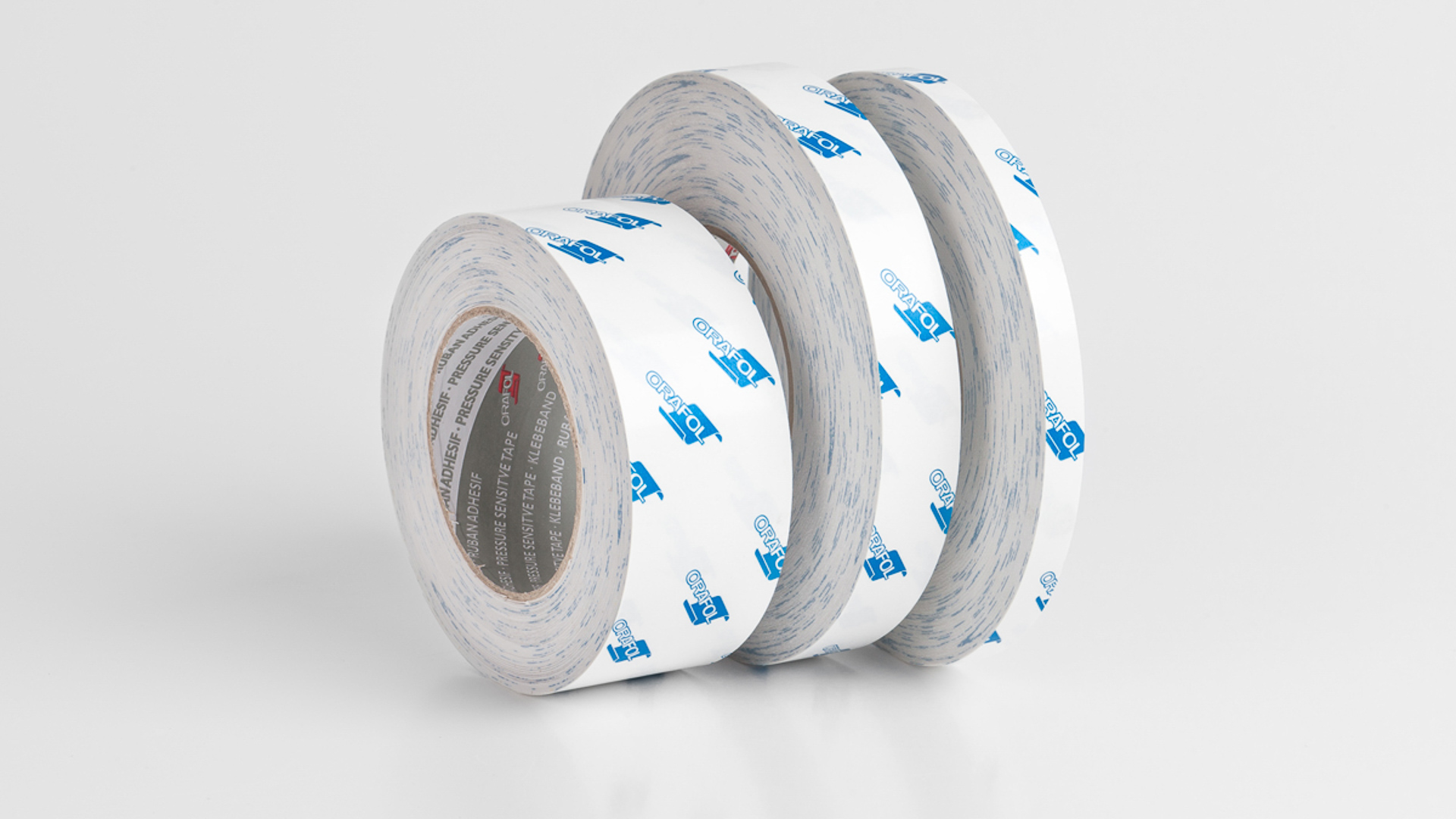

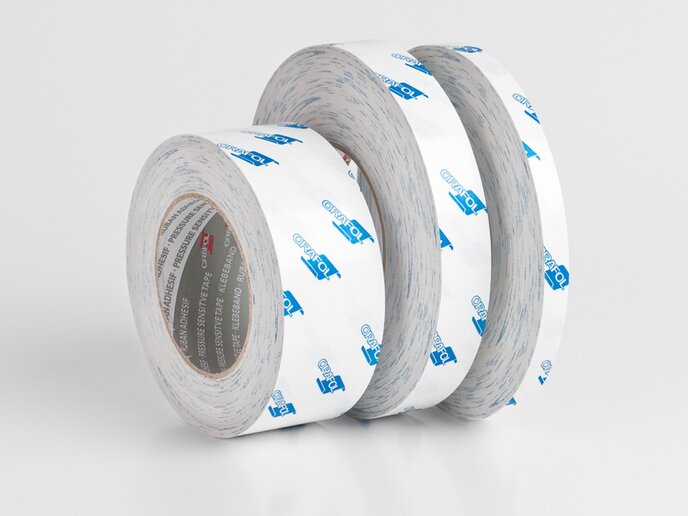

ORABOND® 1397TM

The double-sided adhesive tape consists of a transparent polyester film carrier that is coated on both sides with a modified acrylate adhesive which shows a very good resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The shear-resistant adhesive also has excellent permanent adhesion to metal, paint and other high-energy plastic surfaces as well as good permanent adhesion to low-energy surfaces. Also suitable for rough or structured surfaces because of the thicker adhesive layer.

Product information

Technical properties

Resistance

Shelf Life 2 Year(s) in original packaging, at 20 °C and 50 % relative humidity
Resistance to solvents and chemicals Mineral oils, Fuels, Greases, Aliphatic solvents, Salts and alkalis, Weak acids
UV resistance Highly recommended
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 160 °C 		2 h, central European normal climate | short-term up to +180 °C

Adhesive properties

Adhesive power 24 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered with 0.05 mm polyester film
30 N/25 mm on stainless steel, after 20 min | Average value, FINAT TM 1, covered with 0.05 mm polyester film
35 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered with 0.05 mm polyester film
Initial adhesion (loop tack) 33 N/25 mm Average value, FINAT TM 9
Maximum shear strength 400 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
6 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Application temperature Minimum temperature 15 °C
Substrate material /substrate Highly energetic plastics, Paint, Metal
Product Construction
Adhesive covered side Modified acrylate
Carrier Colour carrier: Transparent
Carrier: Polyester
Dimensions
Format Roll, Cut
Cutting roll width 12 mm
19 mm
25 mm
50 mm
Standard width 1000 mm
1550 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
