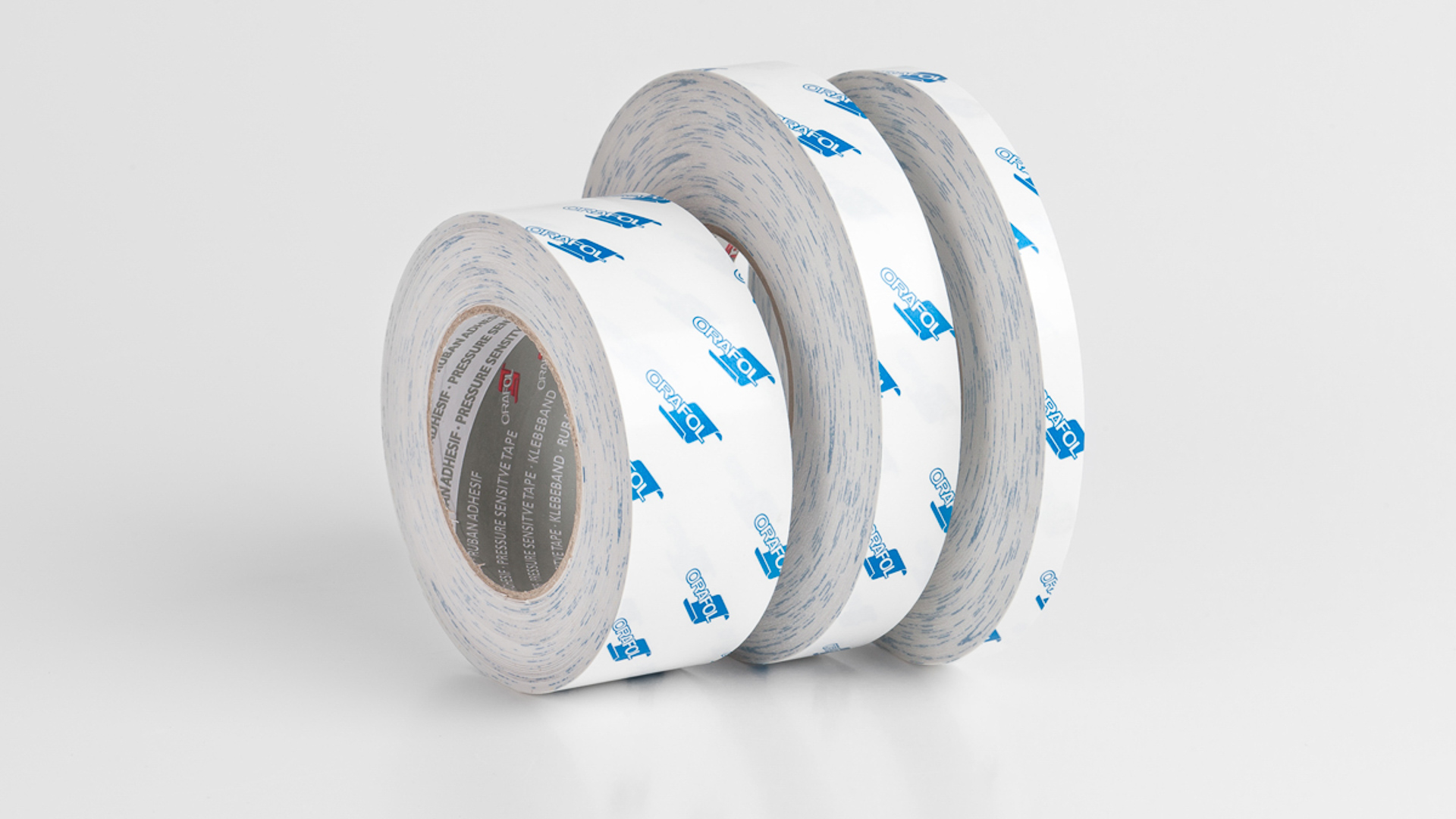

ORABOND® 1395TM
The double-sided adhesive tape consists of a transparent polyester film carrier that is coated on both sides with a modified acrylate adhesive which shows a very good resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The shear-resistant adhesive also has excellent permanent adhesion to metal, paint and other high-energy plastic surfaces as well as good permanent adhesion to low-energy surfaces.
Product information
Technical properties
Resistance
| Shelf Life | 2 Year(s) | |
|---|---|---|
| Resistance to solvents and chemicals | Mineral oils, Fuels, Greases, Aliphatic solvents, Weak acids, Salts and alkalis | |
| UV resistance | Highly recommended | |
| Water resistance | Highly recommended | |
| Temperature resistance |
Minimum temperature: -40 °C Maximum temperature: 160 °C |
central European normal climate | short-term up to +180 °C |
Adhesive properties
| Adhesive power | 18 N/25 mm | on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film |
|---|---|---|
| 24 N/25 mm | on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| 28 N/25 mm | after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film | |
| Initial adhesion (loop tack) | 38 N/25 mm | Average value, FINAT TM 9 |
| Maximum shear strength | 400 Hour(s) | on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
| 6 Hour(s) | on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film |
Processing
| Application temperature | Minimum temperature 15 °C |
|---|---|
| Substrate material /substrate | Highly energetic plastics, Paint, Metal |
Product Construction
| Adhesive covered side | Modified acrylate | |
|---|---|---|
| Adhesive open side | Modified acrylate | |
| Carrier |
Colour carrier: Transparent Carrier: Polyester |
Dimensions
| Format | Roll, Cut | |
|---|---|---|
| Cutting roll width | 12 mm | |
| 19 mm | ||
| 25 mm | ||
| 50 mm | ||
| Standard width | 1550 mm | |
| Standard length | 50 m |
