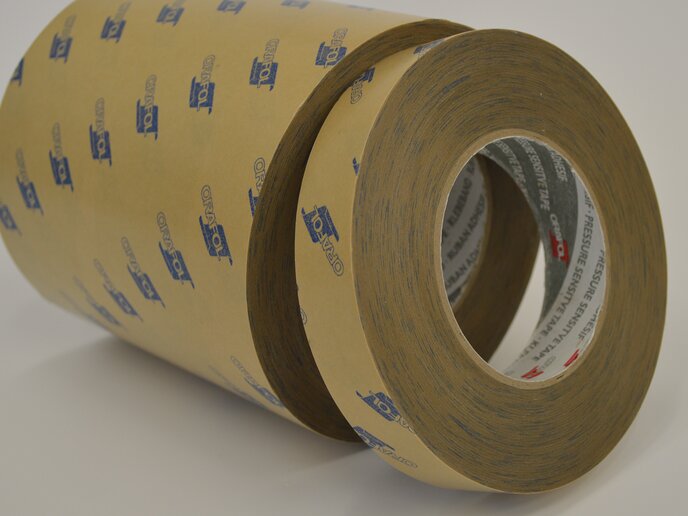

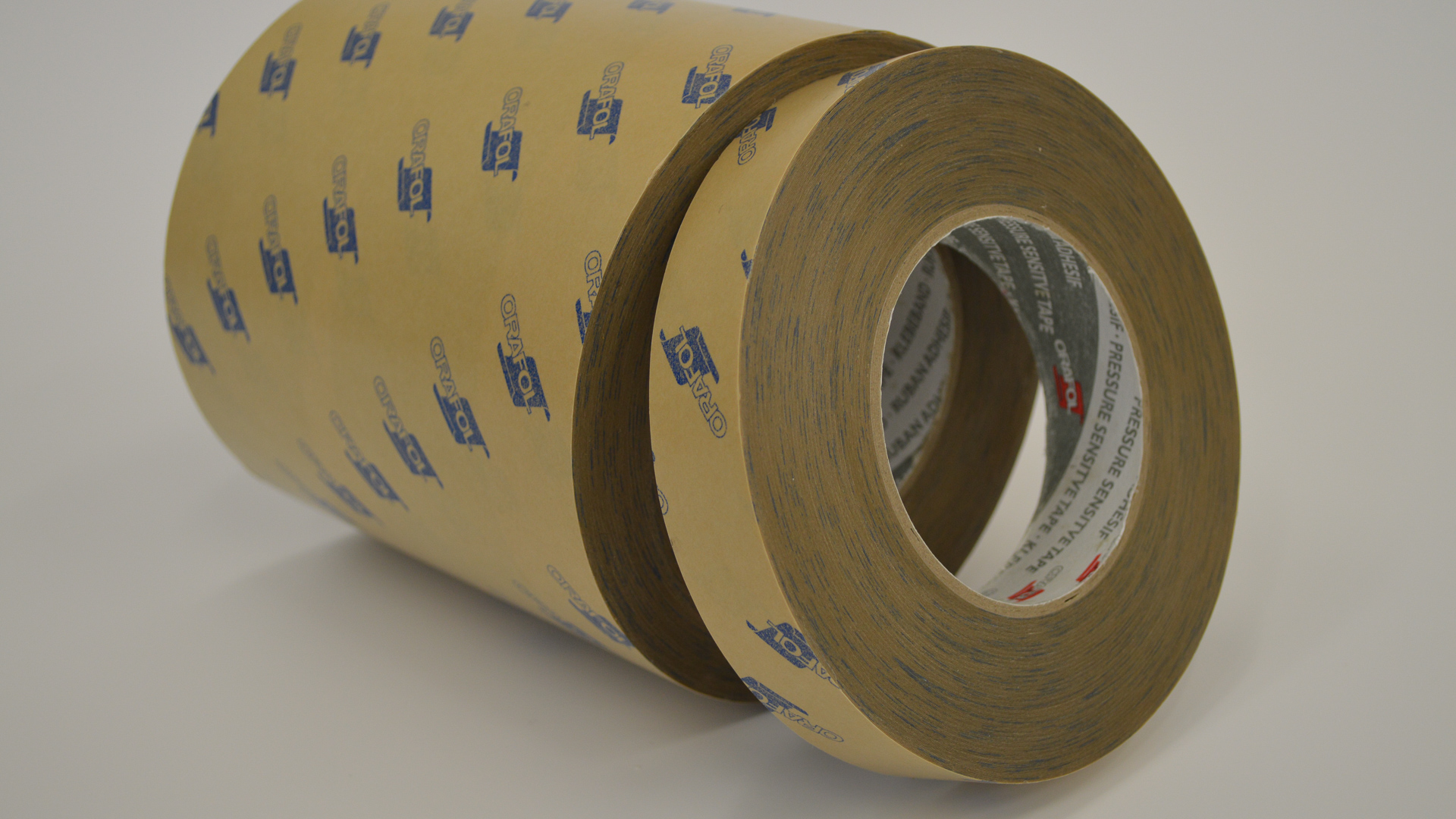

ORABOND® 1377
Transfer Tape

The transfer adhesive tape consists of a highly transparent pure acrylate adhesive, that has an excellent resistance against UV radiation, temperature stress, chemicals and solvents as well as moisture. The high-shear-resistant transfer adhesive has an excellent permanent adhesion on metal, painted and highly energetic plastic surfaces. The transfer tape is certified in accordance with UL 969.

Product information

Technical properties

Resistance

UV resistance Highly recommended
Water resistance Highly recommended
Temperature resistance Minimum temperature: -40 °C
Maximum temperature: 170 °C 		central European normal climate | short-term up to +200 °C

Adhesive properties

Adhesive power 17 N/25 mm on stainless steel, after 1 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
22 N/25 mm on stainless steel, after 20 min | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
24 N/25 mm after 24 h, on stainless steel | Average value, FINAT TM 1, covered on one side with 0.05 mm polyester film
Maximum shear strength 1000 Hour(s) on stainless steel, at 23 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
72 Hour(s) on stainless steel, at 70 °C | Average value, FINAT TM 8, covered on one side with 0.05 mm polyester film
Processing
Substrate material /substrate Plastic, Paint, Highly energetic plastics
Product Construction
Liner Liner: PE paper siliconised on both sides
Surface weight: 100 g/m²
Adhesive covered side Pure acrylate
Carrier Without carrier
Dimensions
Format Roll, Cut
Standard width 25 mm
50 mm
305 mm
610 mm
1220 mm
Standard length 50 m

Downloads

Area

Technical documents



Our safety data sheets / product information consider the state of the SVHC list of 2025-05-25.
